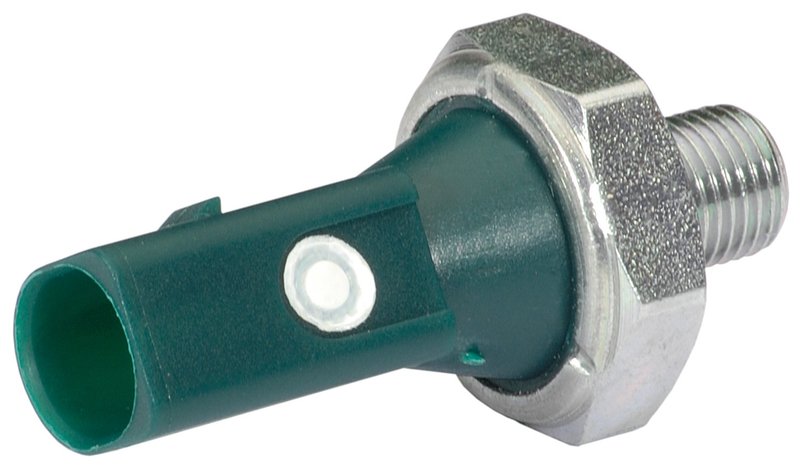

Hella 008280001 Engine Oil Pressure Switch

Reliable Engine Oil Pressure Switch for Audi, Porsche, and Volkswagen

The Hella 008280001 engine oil pressure switch is designed to provide accurate monitoring of oil pressure in select Audi, Porsche, and Volkswagen models. This switch ensures proper engine function by signaling oil pressure status within a precise pressure range, helping maintain engine health and performance.

• Connector Quantity: 1
• Combi Switch Function: Normally open contact
• Current Strength: 0.150 A
• Color: Green, matching original part
• Rated Voltage: 12 V
• Spanner Size: 24 mm
• Switch Pressure Range: 0.3 to 0.6 bar
• Thread Size: M10x1
• Tightening Torque: 20 Nm
• Tolerance: ±15%

About the Hella Brand Line

The Hella brand line is known for producing high-quality automotive electrical components, including switches, solenoids, and actuators. The 008280001 engine oil pressure switch is part of this line, offering reliable performance and compatibility with various engine management systems in Audi, Porsche, and Volkswagen vehicles.

Detailed Product Description

This engine oil pressure switch features a normally open contact designed to activate within a pressure range of 0.3 to 0.6 bar, providing timely and accurate oil pressure status to the vehicle’s engine control unit. The green color matches the original equipment, ensuring easy identification and seamless integration. With a single connector and a rated voltage of 12 volts, this switch is engineered for efficient electrical performance with a current strength of 0.150 amps. The M10x1 thread size and 24 mm spanner size allow for straightforward installation, while the specified tightening torque of 20 Nm ensures secure mounting without damage.

Compatible Vehicles and Applications

This Hella engine oil pressure switch 008280001 is compatible with a range of Audi, Porsche, and Volkswagen models, including but not limited to:

• Audi A3, A4, A5, A6, A7, A8 (including Quattro and Sportback variants)
• Porsche Cayenne
• Volkswagen Golf, Jetta, Passat, Tiguan, Atlas, Beetle, and others

It is designed to monitor engine oil pressure and alert the system to potential issues such as low oil pressure or sensor failure.

Common Issues Addressed by This Switch

• Engine oil pressure warning light activation
• Intermittent or no oil pressure signal to the ECU
• Preventing engine damage due to low oil pressure
• Faulty or inconsistent oil pressure readings
• Replacement of worn or damaged original oil pressure switches

Installation Notes and Tips

• Ensure the engine is cool before installation to avoid injury
• Use a 24 mm spanner to tighten the switch to the recommended 20 Nm torque
• Verify the thread size M10x1 matches the vehicle’s oil pressure port
• Check electrical connector for secure fit and corrosion-free contacts
• Confirm the switch color matches the original part for compatibility

Quality Assurance and Warranty

Hella maintains strict quality control standards for its engine oil pressure switches, including the 008280001 model. Manufactured to meet OEM specifications, this switch offers reliable performance and durability. Warranty details should be confirmed with the parts provider, but Hella products typically come with a limited warranty covering manufacturing defects.
