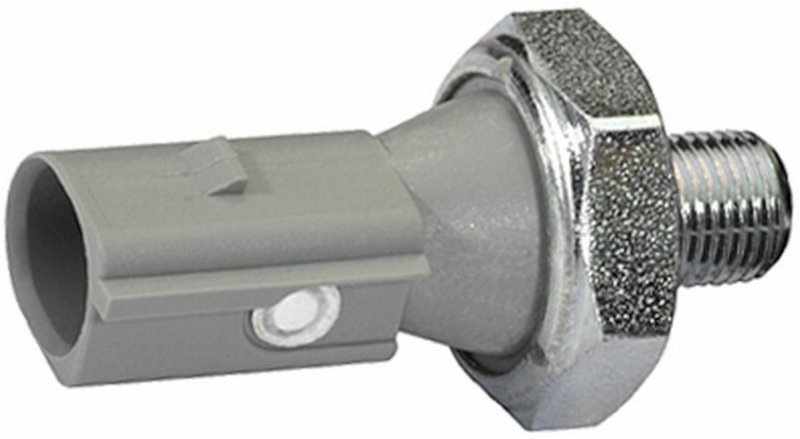

Hella 008280011 Engine Oil Pressure Switch

Hella Engine Oil Pressure Switch 008280011

The Hella 008280011 engine oil pressure switch is a genuine OE-style replacement built for vehicles that use a 12V, normally open, 1-pin oil pressure circuit. With a grey housing, M10x1 thread, and a switch range of 0.75 to 1.05 bar, it is a direct-fit service part for select Audi and Volkswagen applications.

Hella’s brand line focuses on OE-grade electrical and engine management components, and this oil pressure switch follows that approach with the correct connector count, thread size, and switching pressure for the listed applications.

Key Features

• Part number: 008280011
• Engine oil pressure switch for 12V systems
• Normally open contact design
• 1-pin connector
• M10x1 thread size
• Switch pressure range: 0.75 to 1.05 bar
• Grey finish to match the original part
• Spanner size: 24 mm

Detailed Description

This Hella oil pressure switch is used in engine lubrication warning circuits to monitor oil pressure and trigger the dash warning system when pressure drops outside the specified range. It is a strong match for long-tail search needs such as Hella 008280011 oil pressure switch for Audi Q7, Volkswagen Touareg oil pressure switch 1 pin, and grey M10x1 engine oil pressure switch for Volkswagen Passat.

Compatible With select Audi A3 Quattro, A4, A4 Quattro, A6, A6 Quattro, Cabriolet, Q7, S6, TT Quattro, and Volkswagen CC, Corrado, Eos, EuroVan, Golf, Jetta, Passat, Quantum, R32, Touareg, and Vanagon applications listed in the fitment data. This part cross-references Standard Ignition PS-165 for the same application.

What It Helps Solve

• Oil pressure warning light staying on or illuminating incorrectly
• Faulty oil pressure signal to the instrument cluster
• Intermittent warning behavior caused by a worn switch
• Replacement needs after oil system service or electrical diagnosis
• Restoration of proper oil pressure monitoring on listed Audi and Volkswagen models

Installation Notes and Tips

Verify the connector style, thread size, and pressure range before installation. This switch uses a 1-pin connection and M10x1 thread, so it should be matched to the original unit on the vehicle. Confirm the vehicle’s VIN breakpoints where noted in the fitment data, especially on Audi A3 Quattro, Audi TT Quattro, Volkswagen CC, and Volkswagen Touareg applications.

• Fits 2012 Audi Q7, N/A
• Fits 2012 Volkswagen Touareg, N/A
• Fits 2010-2011 Audi Q7, N/A
• Fits 2009-2011 Volkswagen Touareg, N/A
• Fits 2008-2009 Audi A3 Quattro, N/A
• Fits 2009 Audi Q7, N/A
• Fits 2009 Audi TT Quattro, N/A
• Fits 2009 Volkswagen CC, N/A
• Fits 2008 Audi TT Quattro, N/A
• Fits 2004-2006 Audi TT Quattro, N/A
• Fits 2007-2008 Volkswagen Eos, N/A
• Fits 2006-2008 Volkswagen Passat, N/A
• Fits 2008 Volkswagen R32, N/A
• Fits 2006-2007 Audi A3 Quattro, N/A
• Fits 1997-1999 Audi A4, N/A
• Fits 1998-1999 Audi A4 Quattro, N/A
• Fits 1998-1999 Audi A6, N/A
• Fits 1998-1999 Audi A6 Quattro, N/A
• Fits 1994-1999 Volkswagen Jetta, N/A
• Fits 1999 Volkswagen Passat, N/A
• Fits 1998 Audi Cabriolet, N/A
• Fits 1995-1998 Volkswagen Golf, N/A
• Fits 1998 Volkswagen Passat, N/A
• Fits 1997 Audi A4 Quattro, N/A
• Fits 1997 Audi A6, N/A
• Fits 1997 Audi A6 Quattro, N/A
• Fits 1997 Audi Cabriolet, N/A
• Fits 1997 Volkswagen EuroVan, N/A
• Fits 1993-1997 Volkswagen Passat, N/A
• Fits 1995 Audi S6, N/A
• Fits 1990-1994 Volkswagen Corrado, N/A
• Fits 1985-1992 Volkswagen Jetta, N/A
• Fits 1990-1992 Volkswagen Passat, N/A
• Fits 1986-1991 Volkswagen Vanagon, N/A
• Fits 1985 Volkswagen Quantum, N/A

Quality Assurance

Hella is an OE supplier known for electrical and engine management components built to match original vehicle specifications. The 008280011 oil pressure switch is specified with the correct voltage, connector count, thread size, and pressure range for the listed applications.
