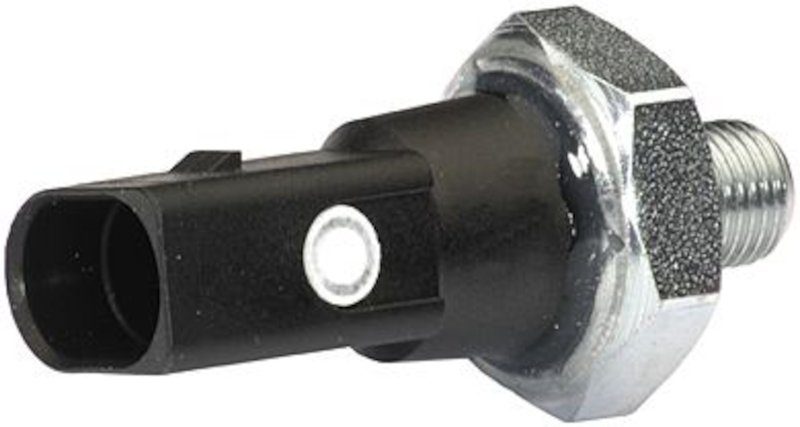

Hella 008280101 Engine Oil Pressure Switch

Hella Oil Pressure Switch for VAG Engines

The Hella 008280101 oil pressure switch is a direct-fit engine switch for VAG applications that use a 12V, normally open, 2-pin design. It is built with an M10x1 thread, a 24 mm spanner size, and a switching range of 1.2 to 1.6 bar for accurate oil pressure signaling.

Compatible With Audi TT, Audi A4, Audi A6, Volkswagen Golf, Volkswagen Jetta, and related VAG models listed below, this Hella oil pressure switch supports reliable oil pressure warning operation. The black housing matches the original part color, and the unit is specified for a tightening torque of 20 Nm.

Key Features

• Part number: 008280101
• Engine oil pressure switch for VAG applications
• Normally open contact with 2 connectors
• 12V rated voltage and 0.150 A current strength
• Switch pressure range: 1.2 to 1.6 bar
• M10x1 thread size with 24 mm spanner size
• Black finish matches the original part color
• Specified tightening torque: 20 Nm

Detailed Description

Hella 008280101 is an engine oil pressure switch used to monitor oil pressure and trigger the warning circuit when pressure drops below the specified threshold. The normally open contact design, 2-pin connector layout, and 12V electrical rating make it a direct OE-style replacement for select Audi and Volkswagen engines. This part cross-references Standard Ignition PS733 and VEMO V10-73-0086 for the same application.

Fits 2009-2015 Audi TTS Quattro, N/A; Fits 2009-2010 Audi TT Quattro, N/A; Fits 2008-2009 Audi TT, N/A; Fits 2006-2009 Audi A4, N/A; Fits 2006-2009 Audi A4 Quattro, N/A; Fits 2009 Audi A6, N/A; Fits 2006-2008 Audi A6, N/A; Fits 2006-2008 Audi A6 Quattro, N/A; Fits 2006-2008 Audi A3, N/A; Fits 2005 Audi A4, N/A; Fits 2005 Audi A4 Quattro, N/A; Fits 2005 Audi A6 Quattro, N/A; Fits 2010-2014 Volkswagen Golf, N/A; Fits 2012-2014 Volkswagen Jetta, N/A; Fits 2005-2009 Volkswagen Jetta, N/A; Fits 2010-2011 Volkswagen Jetta, N/A; Fits 2009-2010 Volkswagen Beetle, N/A; Fits 2006-2008 Volkswagen Beetle, N/A; Fits 2006-2008 Volkswagen GTI, N/A; Fits 2007-2009 Volkswagen Eos, N/A; Fits 2007-2008 Volkswagen Passat, N/A; Fits 2006 Volkswagen Passat, N/A.

What It Helps Address

• Oil pressure warning light concerns caused by a failing switch
• Incorrect oil pressure signal to the instrument cluster
• Intermittent warning behavior from worn electrical contacts
• Replacement needs after oil service or engine repair
• OE-style restoration for VAG oil pressure monitoring circuits

Installation Notes and Tips

Verify the thread size, connector count, and pressure range before installation. Use the specified 20 Nm tightening torque and confirm the connector seats fully on the 2-pin terminal. Check the vehicle’s VIN and engine code for exact application matching, especially on Audi A4, Audi A6, Volkswagen Jetta, and Volkswagen Passat models with chassis breakpoints noted in the fitment data.

Quality Assurance

Hella supplies OE-level electrical and engine management components, and this oil pressure switch is specified to match the listed VAG applications. Part number 008280101 is built to the stated electrical and mechanical requirements for direct replacement use.
