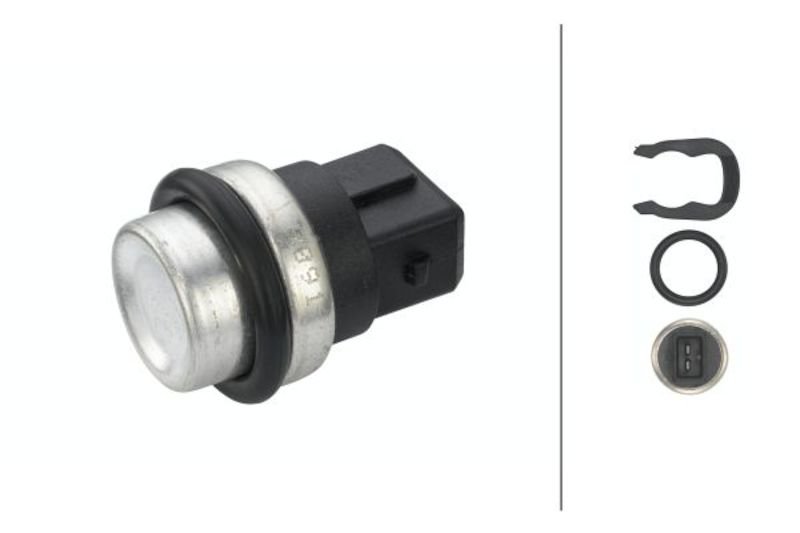

Hella 009107241 Engine Coolant Temperature Sensor

Engine Cooling Temperature Control

Hella Engine Coolant Temperature Sensor 009107241 provides fast, accurate coolant temperature readings for engine management and cooling system control. It is a standard replacement sensor with OE-style fitment for 1991-1997 Volkswagen Golf applications, including 12V, 2-pin connector, plugged, seal, and retaining ring configurations.

Key Features

• Engine coolant temperature sensor for cooling system monitoring
• Standard replacement grade for OE-style service
• NTC sensor design with 2 terminals / 2 pins
• Push-in / plugged mounting style
• Includes gasket/seal and retaining ring
• Black housing with green color coding
• 12 VDC electrical system application
• Resistance values listed at 1000 ohm and 148 ohm

Detailed Product Overview

Built for accurate temperature feedback, this Hella coolant temperature sensor helps the engine control system respond to changing coolant conditions. The sensor uses an NTC design and is specified with a 25°C to 80°C temperature range, making it a direct-fit replacement for Volkswagen Golf cooling system service. Hella 009107241 is engineered for reliable signal output and consistent operation in everyday driving conditions.

This part cross-references Dorman - HELP 82038 for the same application.

What This Sensor Helps Address

• Incorrect coolant temperature readings at the engine control system
• Cooling fan or temperature gauge behavior caused by a failing sensor
• Hard starting or drivability issues related to coolant temperature input
• Check engine light conditions tied to coolant temperature sensor faults
• Cooling system control problems on Volkswagen Golf models

Installation Notes and Tips

Fits 1991-1997 Volkswagen Golf, N/A. Confirm the vehicle uses a 12V, 2-pin connector, plugged mounting style, with seal and retaining ring before installation. Assy/Disassy by qualified personnel required. Verify connector style, mounting depth, and resistance specification against the original sensor before replacement. Hella 009107241 should be installed on a cooled engine to reduce the risk of coolant loss during service.

Quality Assurance

Hella supplies this engine coolant temperature sensor as a standard replacement part built for OE fit and dependable cooling system control. Part number 009107241 is designed for consistent performance in Volkswagen Golf applications and is supported by Hella’s focus on precision electrical and thermal sensing components.
