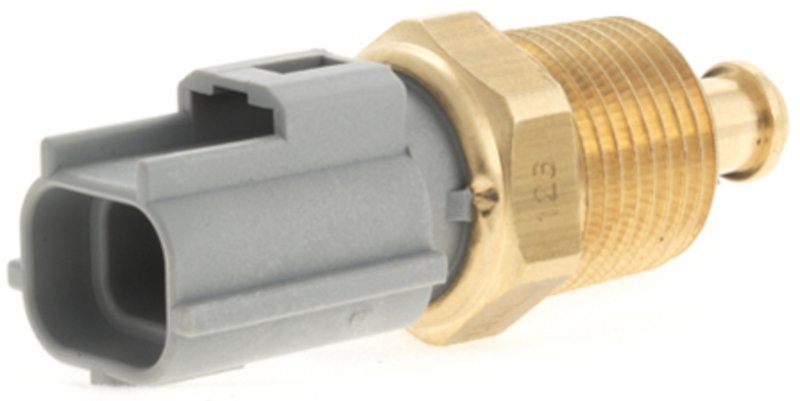

Hella 009107831 Engine Coolant Temperature Sensor

Hella Engine Coolant Temperature Sensor

Monitor engine temperature accurately with the Hella 009107831 engine coolant temperature sensor. This grey, 2-pin NTC sensor is built for direct-fit applications across a wide range of Ford, Jaguar, Lincoln, Mazda, Mercury, and related vehicles, including Mustang, Explorer, Ranger, Taurus, and F-150 platforms.

Hella 009107831 is a practical OE-style replacement for vehicles that use a vertical screw fitting or the specified threaded application. The 19 mm spanner size and two-connector design support straightforward service on many cooling-system sensor locations.

Key Features

• Engine coolant temperature sensor with NTC sensing element
• Grey housing with 2 electrical connectors
• 19 mm spanner size for service access
• Direct-fit coverage for many Ford, Jaguar, Lincoln, Mazda, and Mercury applications
• Cross-reference example: Standard Ignition TX61

Detailed Description

The Hella 009107831 engine coolant temperature sensor measures coolant temperature and sends that signal to the engine management system. Accurate temperature input is important for fuel delivery, idle control, cooling fan operation, and temperature-related diagnostics. This part number is listed for a broad range of vehicles, including 1996-2004 Ford Mustang, 1995-2008 Ford Ranger, 1996-2001 Ford Explorer, and 2000-2007 Ford Taurus applications, along with select Jaguar, Lincoln, Mazda, and Mercury models.

Hella brand line parts are selected for service work where the original sensor style, connector count, and mounting type matter. Part number 009107831 is also referenced by multiple aftermarket numbers, making it easier to match the correct coolant temperature sensor for the vehicle and engine configuration.

What This Sensor Helps Address

• Incorrect coolant temperature readings on the dash or scan tool
• Hard starting or rough cold operation caused by faulty temperature input
• Cooling fan behavior tied to inaccurate sensor data
• Check engine lights related to coolant temperature sensor faults
• Driveability issues on Ford Mustang, Explorer, Ranger, and F-150 applications

Installation Notes and Tips

Verify connector style, thread type, and mounting location before installation. This sensor is listed with 2-pin connector vertical screw fitting applications, plus select 18 mm threaded and thermostat housing or oil filter housing locations. Confirm the vehicle’s original sensor shape and electrical connection against the existing part before replacement. For best results, inspect the connector terminals and cooling system condition during service.

Quality Assurance

Hella supplies automotive electrical and thermal management components for service replacement use. Part number 009107831 is cataloged with confirmed vehicle fitment data for direct application matching.
