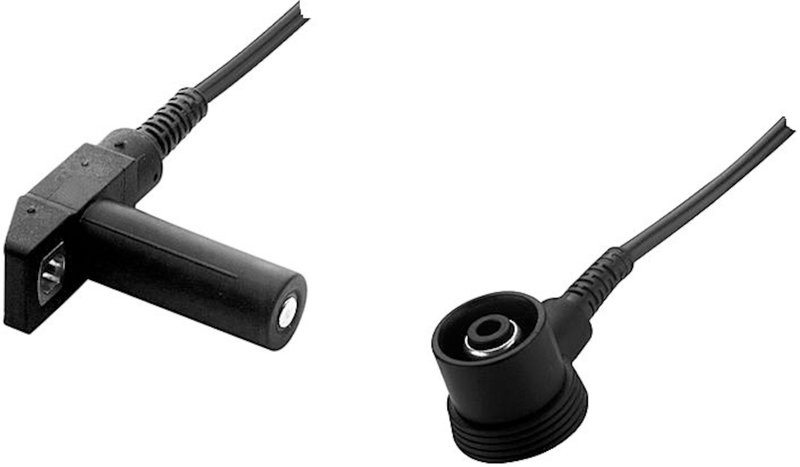

Hella 009110471 Engine Crankshaft Position Sensor

Hella Crankshaft Position Sensor for Mercedes-Benz

The Hella 009110471 crankshaft position sensor is a flywheel-side, 2-pin inductive sensor built for precise engine speed and crank position signal input. With a 1100 mm cable, 12V rating, and 830 ohm resistance, it supports accurate signal delivery for select Mercedes-Benz applications.

Hella Electronics has supplied OE-focused electronic components for decades, and the Hella brand line is known for replacement parts that follow original equipment fitment and signal requirements. This crankshaft position sensor is a direct-fit option for specific Mercedes-Benz C-Class, E-Class, S-Class, and SL-Class models listed below.

• Part number: 009110471
• Inductive sensor type for crankshaft signal detection
• Flywheel-side mounting position
• 2-pole connector with 12V rated voltage
• 1100 mm cable length for factory-style routing
• 830 ohm resistance with 10% tolerance
• Cross-reference: Bosch 17019

Detailed Product Overview

Use the Hella 009110471 when you need a crankshaft position sensor for Mercedes-Benz engines that rely on a flywheel-side inductive pickup. This sensor helps the engine control unit read crankshaft position and rotational speed so ignition timing and fuel delivery can stay synchronized. It is listed for 1993-1996 Mercedes-Benz 400E, 500E, C220, C280, C36 AMG, E420, E500, S320, S500, and SL320 applications, including standard and optional OE configurations where noted. The part number 009110471 is also a useful reference when matching OE-style replacements for these vehicles.

Vehicle Fitment

• Fits 1994-1996 Mercedes-Benz C280, N/A. Standard and optional applications listed; flywheel side; 2 poles.
• Fits 1995-1996 Mercedes-Benz C36 AMG, N/A. Standard and optional applications listed; flywheel side; 2 poles.
• Fits 1996 Mercedes-Benz S320, N/A. Standard and optional applications listed; flywheel side; 2 poles.
• Fits 1996 Mercedes-Benz SL320, N/A. Standard and optional applications listed; flywheel side; 2 poles.
• Fits 1994-1995 Mercedes-Benz C220, N/A. Standard, optional, and OE #003 153 49 28 / #003 153 50 28 applications listed; flywheel side; 2 poles.
• Fits 1994-1995 Mercedes-Benz E420, N/A. Standard and OE #003 153 49 28 applications listed; flywheel side; 2 poles.
• Fits 1994 Mercedes-Benz E500, N/A. Flywheel side; 2 poles; OE #003 153 49 28 listed.
• Fits 1994 Mercedes-Benz S500, N/A. 12V, 2-pin connector, flywheel side, 1100 mm cable.
• Fits 1993 Mercedes-Benz 400E, N/A. Late production; standard, optional, and OE #003 153 49 28 / #003 153 50 28 applications listed; flywheel side; 2 poles.
• Fits 1993 Mercedes-Benz 500E, N/A. Late production; standard, optional, and OE #003 153 49 28 / #003 153 50 28 applications listed; flywheel side; 2 poles.

Common Issues This Sensor Can Address

• Crankshaft position signal loss
• Intermittent no-start or hard-start conditions
• Rough running caused by incorrect engine speed input
• Stalling related to faulty crank signal data
• Check engine light concerns tied to crankshaft sensor faults

Installation Notes and Tips

Confirm the flywheel-side mounting location, 2-pin connector style, and cable length before installation. Compare the existing sensor resistance and OE number references against the vehicle’s original part to verify the correct application for your Mercedes-Benz C280, C36 AMG, or other listed model. Route the 1100 mm lead away from heat and moving components, and inspect the connector and harness condition before final assembly.

Quality Assurance

Hella Electronics OE competence has supported automotive electronic systems for over 60 years. This crankshaft position sensor is built to meet the fitment and electrical specifications listed for the confirmed Mercedes-Benz applications.
