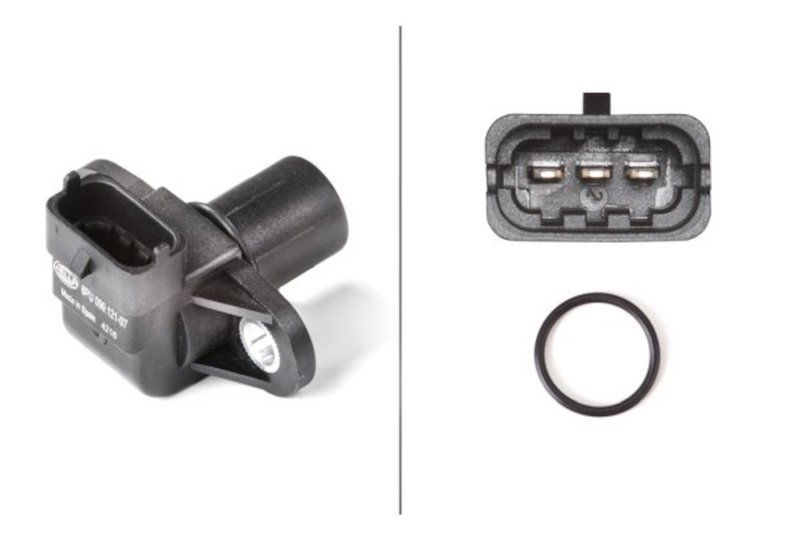

Hella 009121071 Engine Crankshaft Position Sensor
| Brand | Hella 009121071 |
|---|---|
| 10795 | 24.00 |
| 10796 | Plastic |
| 10797 | 17.80 |
| Voltage | 12.00 |
| Color | Black |
| Bolt Hole Quantity | 2 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Hole Diameter | 6.50 |
| Gasket Or Seal Material | Rubber |
| Mounting Bracket Included | No |
| Assy/Disassy by Qualified Personnel Required! | . |
| Number of pins | 3 |
| Sensor Type | Impulse sensor |
| Supplementary Article/Supplementary Info | With seal |
| Voltage [VDC] | 12 |
| Product line | Hella |
| Fits | Mercedes-Benz · 18 vehicles |
Standard replacement. OE-spec fit, form, and function for straightforward installation.
Corrosion-resistant terminals. Coatings help protect the sensor for lasting durability.
Impulse sensor. Provides camshaft position data for ignition and fuel injection timing.
Cross-references ACI 81124, Dorman - HELP 79310 and Four Seasons 33737 for the same application. See all 22.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
HELLA Camshaft Position Sensor for Mercedes-Benz
The HELLA Engine Camshaft Position Sensor delivers OE-style signal accuracy for ignition and fuel injection timing on select Mercedes-Benz models. Built with corrosion-resistant terminals and protective coatings, it is a standard replacement choice for drivers servicing a Mercedes-Benz C230, SLK230, S320, or other listed applications.
Part number 009121071 is calibrated with advanced diagnostic tools and built to meet OE specifications for fit, form, and function. This HELLA sensor uses a 12V, 3-pin blade-terminal design with a rectangular male connector and included seal for a direct replacement setup.
Key Features
- Part number: 009121071
- Sensor type: impulse sensor for camshaft position signal input
- 12V rated voltage with 3 terminals and 3 pins
- Rectangular male connector, 1 connector, blade terminals
- Includes seal with rubber gasket material
- Black plastic housing with corrosion-resistant terminals and coatings
- Standard replacement grade built to OE specifications
- 2 bolt holes and 6.50 mm mounting hole diameter
Product Details
HELLA’s electronics line draws on long-standing OE competence, and this camshaft position sensor follows that approach with calibrated signal output and durable construction. It is engineered for the Mercedes-Benz C220, C280, C36 AMG, E320, SL320, C230, and SLK230 applications listed below, including 1994-2000 Mercedes-Benz models. If you are replacing a failing camshaft position sensor on a Mercedes-Benz C230 or SLK230, 009121071 provides the correct connector style, seal, and electrical layout for the specified vehicles.
This part cross-references Dorman - HELP 79310 for the same application.
What It Helps Resolve
- Hard starting or extended crank time caused by an inaccurate camshaft signal
- Rough idle or intermittent misfire from timing signal loss
- Check engine light conditions related to camshaft position sensor faults
- Fuel injection timing errors on listed Mercedes-Benz applications
- Ignition timing irregularities tied to sensor signal degradation
Installation Notes and Tips
Assy/disassy by qualified personnel required. Verify the connector shape, 3-pin layout, and seal condition before installation. Confirm the OE reference and vehicle application match the listed fitment for your Mercedes-Benz C230, SLK230, S320, C220, C280, C36 AMG, E320, or SL320. No mounting hardware or wiring harness is included.
Quality Assurance
This HELLA sensor is manufactured to OE fit, form, and function standards and calibrated using advanced diagnostic tools. Corrosion-resistant terminals and protective coatings support long-term durability in demanding engine environments.
- Fits 1999-2000 Mercedes-Benz C230, N/A; 12V - 3-Pin Connector - with Seal
- Fits 1999-2000 Mercedes-Benz SLK230, N/A; 12V - 3-Pin Connector - with Seal
- Fits 1997-1999 Mercedes-Benz S320, N/A; OE #004 153 00 28; with seal; 12V; 3 poles
- Fits 1997-1998 Mercedes-Benz C230, N/A; OE #004 153 00 28; with seal; 12V; 3 poles
- Fits 1998 Mercedes-Benz SLK230, N/A; OE #004 153 00 28; with seal; 12V; 3 poles
- Fits 1997 Mercedes-Benz C280, N/A; OE #004 153 00 28; with seal; 12V; 3 poles
- Fits 1997 Mercedes-Benz C36 AMG, N/A; OE #004 153 00 28; with seal; 12V; 3 poles
- Fits 1996-1997 Mercedes-Benz E320, N/A; OE #004 153 00 28; with seal; 12V; 3 poles
- Fits 1997 Mercedes-Benz SL320, N/A; OE #004 153 00 28; with seal; 12V; 3 poles
- Fits 1994-1996 Mercedes-Benz C220, N/A; OE #004 153 00 28; with seal; 12V; 3 poles
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2000 | Mercedes-Benz | C230 | Kompressor | — | — | N/A | 12V - 3-Pin Connector - with Seal |
| 2000 | Mercedes-Benz | SLK230 | Kompressor | — | — | N/A | 12V - 3-Pin Connector - with Seal |
| 1999 | Mercedes-Benz | C230 | Kompressor | — | — | N/A | 12V - 3-Pin Connector - with Seal |
| 1999 | Mercedes-Benz | S320 | — | 3.2L | L6 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1999 | Mercedes-Benz | SLK230 | Kompressor | — | — | N/A | 12V - 3-Pin Connector - with Seal |
| 1998 | Mercedes-Benz | C230 | — | 2.3L | L4 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1998 | Mercedes-Benz | S320 | — | 3.2L | L6 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1998 | Mercedes-Benz | SLK230 | — | 2.3L | L4 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1997 | Mercedes-Benz | C230 | — | 2.3L | L4 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1997 | Mercedes-Benz | C280 | — | 2.8L | L6 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1997 | Mercedes-Benz | C36 AMG | — | 3.6L | L6 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1997 | Mercedes-Benz | E320 | — | 3.2L | L6 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1997 | Mercedes-Benz | S320 | — | 3.2L | L6 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1997 | Mercedes-Benz | SL320 | — | 3.2L | L6 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1996 | Mercedes-Benz | C220 | — | 2.2L | L4 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1996 | Mercedes-Benz | E320 | — | 3.2L | L6 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1995 | Mercedes-Benz | C220 | — | 2.2L | L4 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1994 | Mercedes-Benz | C220 | — | 2.2L | L4 | N/A | OE #004 153 00 28; Supplementary Article/Supplementary Info: with seal; Rated Voltage [V]: 12; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
