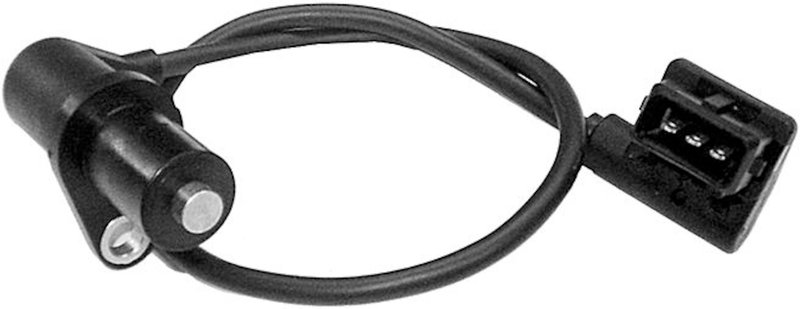

Hella 009121301 Engine Camshaft Position Sensor

Overview of Hella Engine Camshaft Position Sensor 009121301

The Hella Engine Camshaft Position Sensor 009121301 is designed for precise engine timing and performance in select BMW models. This inductive sensor ensures accurate camshaft position detection, essential for optimal engine management in BMW 325i, 325is, and 525i vehicles.

• Cable length: 390 mm for flexible installation
• Three connectors for secure electrical connection
• Rated voltage of 12 V compatible with standard automotive systems
• Resistance of 1400 Ohms ensuring reliable sensor operation
• Inductive sensor type for accurate camshaft position detection
• Tolerance of ±10% for consistent performance

Detailed Description of the Hella Camshaft Position Sensor

This Hella camshaft position sensor (part number 009121301) is engineered to provide precise feedback on the camshaft's position to the engine control unit (ECU). With a cable length of 390 mm and three connectors, it offers straightforward integration into the vehicle's ignition system. The sensor operates at a rated voltage of 12 volts and features a resistance of 1400 Ohms, characteristics that support stable signal transmission. As an inductive sensor, it detects changes in the magnetic field caused by the camshaft's rotation, enabling accurate timing adjustments for fuel injection and ignition.

The Hella brand line is known for its focus on automotive electrical components, delivering sensors that meet OEM specifications. This sensor aligns with Hella's commitment to quality and reliability, making it suitable for BMW 325i, 325is, and 525i models requiring precise camshaft position monitoring.

Compatible Vehicles and Common Applications

• Compatible with BMW 325i, 325is, and 525i models
• Used to monitor camshaft position for engine timing control
• Helps resolve engine misfires and rough idling issues
• Addresses problems related to poor acceleration and stalling
• Supports proper fuel injection timing and ignition synchronization

Installation Notes and Tips

• Ensure the vehicle ignition is off before installation
• Verify connector compatibility with the vehicle wiring harness
• Handle the sensor carefully to avoid damage to the inductive coil
• Check cable routing to prevent interference or abrasion
• Consult the vehicle service manual for torque specifications and sensor location

Quality Assurance and Warranty

The Hella Engine Camshaft Position Sensor 009121301 is manufactured to meet stringent quality standards. It undergoes rigorous testing to ensure durability and accurate performance under normal operating conditions. While specific warranty details are not provided here, Hella products typically come with manufacturer-backed warranties that cover defects in materials and workmanship.
