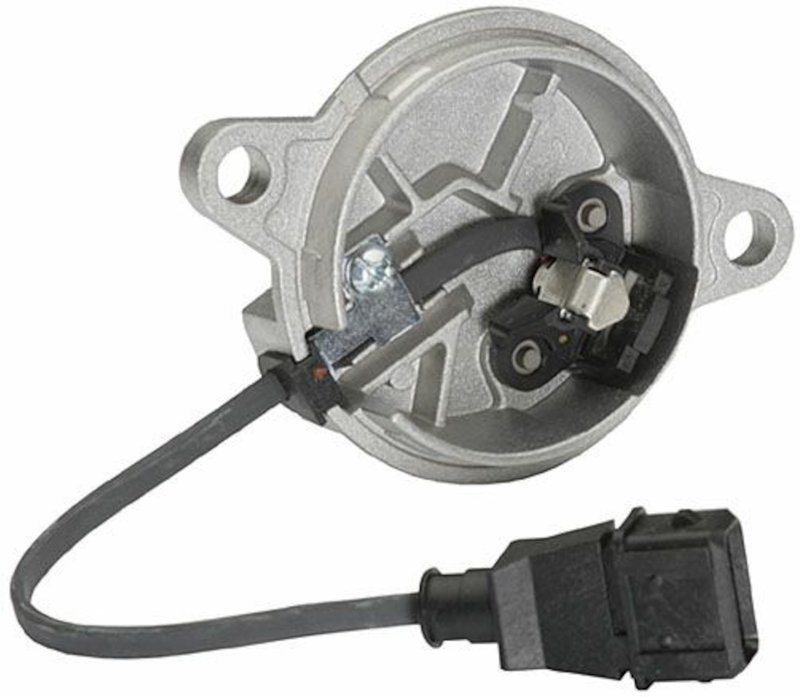

Hella 009121571 Engine Camshaft Position Sensor

Camshaft Position Sensor for Volvo

This Hella camshaft position sensor is built for Volvo applications that require a 12V Hall sensor with a 3-pin connector and 160 mm cable length. It supports accurate camshaft signal input for Volvo V70, C70, S70, S90, V90, 850, and 960 models listed below.

Key Features

• Part number: 009121571
• Hall sensor design for camshaft position signal detection
• 12V rated voltage
• 3 connector terminals
• 160 mm cable length
• Hella electronics OE competence backed by decades of OE experience

Detailed Description

Hella 009121571 is an engine camshaft position sensor for Volvo vehicles, engineered around a Hall-effect sensing design and a 12V electrical system. The 3-pin connector and 160 mm lead length make it a direct-match service part for the listed Volvo applications, including Volvo V70, Volvo C70, Volvo S70, Volvo S90, Volvo V90, Volvo 850, and Volvo 960. If you are replacing a failing Volvo camshaft position sensor, this Hella unit provides the signal input the engine control system uses to monitor camshaft position and timing.

This part cross-references BBB Industries 19009 and VEMO V95-72-0040 for the same application. Hella 009121571 is a practical OE-style replacement for Volvo camshaft sensor service on the covered model years.

Vehicle Fitment

• Fits 1998-2004 Volvo V70, N/A. Notes: Number of connectors: 3; Cable Length [mm]: 160; Sensor Type: Hall Sensor.
• Fits 1998-2002 Volvo C70, N/A. Notes: Number of connectors: 3; Cable Length [mm]: 160; Sensor Type: Hall Sensor.
• Fits 1998-2000 Volvo S70, N/A. Notes: Number of connectors: 3; Cable Length [mm]: 160; Sensor Type: Hall Sensor.
• Fits 1997-1998 Volvo S90, N/A. Notes: 12V - 3-Pin Connector.
• Fits 1997-1998 Volvo V90, N/A. Notes: 12V - 3-Pin Connector.
• Fits 1993-1997 Volvo 850, N/A. Notes: Number of connectors: 3; Cable Length [mm]: 160; Sensor Type: Hall Sensor.
• Fits 1992-1997 Volvo 960, N/A. Notes: 12V - 3-Pin Connector.

Common Issues This Sensor Can Address

• Camshaft signal loss or intermittent sensor output
• Hard starting or extended crank conditions tied to cam timing input
• Check engine light concerns related to camshaft position sensing
• Rough idle or drivability issues caused by incorrect cam signal data
• Engine control synchronization faults on covered Volvo models

Installation Notes and Tips

Verify connector style, cable length, and sensor type against the original part before installation. Confirm the vehicle uses the listed 12V, 3-pin Hall sensor configuration for the exact Volvo application. Inspect the harness and connector for corrosion or damage during replacement, since wiring issues can affect sensor performance.

Quality Assurance

Hella is recognized for OE electronics competence developed over more than 60 years, and this sensor reflects that application-focused engineering approach for Volvo service work. Part number 009121571 is built for the listed fitments and electrical specifications.
