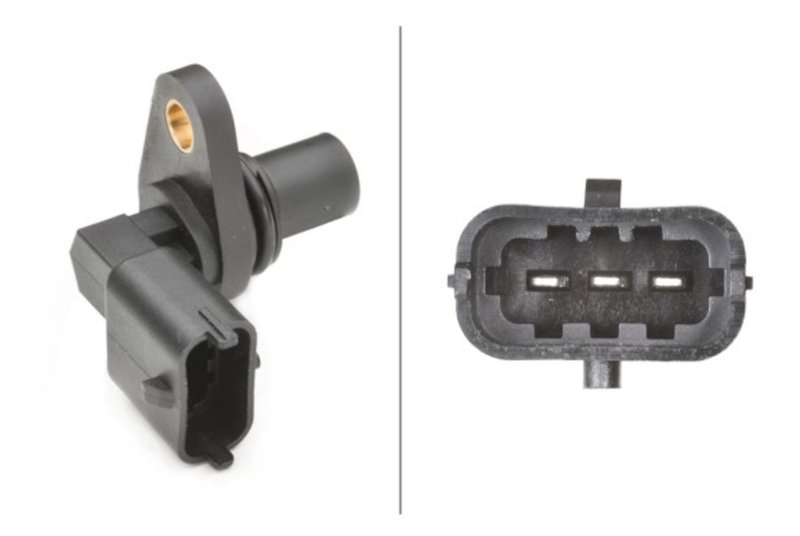

Hella 009121911 Engine Camshaft Position Sensor
| Brand | Hella 009121911 |
|---|---|
| 10795 | 24.00 |
| 10796 | Plastic |
| Voltage | 12.00 |
| Color | Black |
| Bolt Hole Quantity | 1 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Terminal Gender | Female |
| Wiring Harness Included | No |
| Mounting Hole Diameter | 6.60 |
| Gasket Or Seal Material | Rubber |
| Mounting Bracket Included | No |
| Seal Outside Diameter | 15.50 |
| Assy/Disassy by Qualified Personnel Required! | . |
| Number of mounting bores | 1 |
| Number of pins | 3 |
| Sensor Body Diameter [mm] | 14.20 |
| Sensor Type | Hall sensor |
| Supplementary Article/Supplementary Info | With seal |
| Voltage [VDC] | 12 |
| Fits | Saturn · 1 vehicle |
OE-spec replacement. Built to match fit, form, and function requirements for straightforward service replacement.
Hall sensor design. Uses a 3-pin signal layout for camshaft position input to the engine management system.
Corrosion-resistant finish. Protective terminals and coatings add durability in demanding underhood conditions.
Cross-references ACI 81250, Carlson 19104 and Dorman - HELP 79337 for the same application. See all 51.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
The Hella 009121911 engine camshaft position sensor provides camshaft position data used for ignition and fuel injection timing. It is a standard replacement sensor built to OE specifications for fit, form, and function, with corrosion-resistant terminals and coatings for added durability.
Compatible with the 2008 Saturn Astra, this camshaft position sensor is a direct-fit solution for vehicles that require a 12V, 3-pin Hall sensor with a seal. The Hella 009121911 is calibrated with advanced diagnostic tools to support accurate signal output and consistent operation.
Key Features
- Hall-effect camshaft position sensor for timing signal input
- Standard replacement design with OE-style fit, form, and function
- Corrosion-resistant terminals and protective coatings
- Plastic body with black finish and rectangular connector
- Includes seal for a secure sensor-to-engine interface
Detailed Description
The Hella 009121911 is an engine camshaft position sensor that reports camshaft position to the engine management system so ignition and fuel injection timing can be controlled accurately. Its 12V Hall sensor design uses a 3-pin rectangular connector with blade terminals, and the sensor body is built from plastic with a rubber seal for the mounting interface. This part cross-references Monroe Shocks & Struts (e.g., 40055) for the same application.
For Saturn Astra camshaft position sensor replacement needs, this Hella part number 009121911 offers OE-spec construction and calibration. It is a practical choice when replacing a sensor with a single mounting bore, one connector, and a sealed design. The Hella 009121911 is also referenced by part number 009121911 for catalog matching and service lookup.
What It Helps Address
- Incorrect camshaft position signal to the engine control system
- Hard starting caused by timing input errors
- Rough running from inconsistent ignition or fuel injection timing
- Check engine light conditions related to camshaft sensor faults
- Intermittent drivability issues tied to sensor signal loss
Installation Notes
Fits 2008 Saturn Astra, N/A. Verify connector shape, pin count, voltage, and seal style against the original sensor before installation. This sensor requires qualified installation procedures, and the vehicle application should be confirmed by part number 009121911 and the existing connector configuration.
Quality Assurance
Hella builds this sensor to OE specifications for fit, form, and function. Corrosion-resistant terminals and coatings add durability, and the unit is calibrated using advanced diagnostic tools for consistent performance.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2008 | Saturn | Astra | XR | 12V - 3-Pin Connector - with Seal |
| No rows match your filter. | ||||
