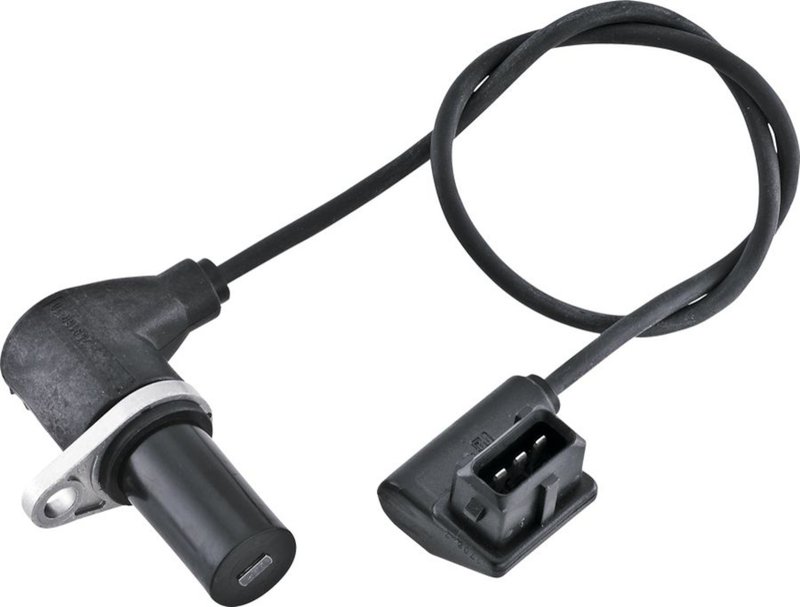

Hella 009163681 Engine Crankshaft Position Sensor
| Brand | Hella 009163681 |
|---|---|
| Cable Length [mm] | 400 |
| Number of Poles | 3 |
| Rated Voltage [V] | 12 |
| Resistance [Ohm] | 580 |
| Sensor Type | Inductive Sensor |
| Product line | Hella |
| Fits | BMW · 10 vehicles |
Inductive sensor. Provides reliable crankshaft position signal detection.
3-pole design. Simple electrical connection for straightforward installation.
12-volt rated. Built for standard automotive electrical systems.
Hella Crankshaft Position Sensor for BMW
The Hella 009163681 crankshaft position sensor is an inductive engine sensor built for BMW applications that need accurate crankshaft signal input. It uses a 3-pole, 12-volt design with a 400 mm cable and 580 ohm resistance to support reliable engine timing data.
Hella Electronics has supplied OE-level electronic components for decades, and the Hella line is known for application-specific sensor engineering. This crankshaft sensor is a direct-fit option for select BMW 318ti, 318i, 318is, and Z3 models.
Key Features
- Part number: 009163681
- Engine crankshaft position sensor for BMW
- Inductive sensor design for crankshaft signal detection
- 3-pole electrical connection
- 12V rated voltage
- 400 mm cable length for vehicle-specific routing
- 580 ohm resistance specification
Fitment Details
- Fits 1996-1999 BMW 318ti, N/A
- Fits 1996-1998 BMW 318i, N/A
- Fits 1996-1997 BMW 318is, N/A
- Fits 1996 BMW Z3, N/A
What This Sensor Helps Address
- Crankshaft signal loss or intermittent engine speed input
- Hard starting caused by incorrect crank position data
- Stalling related to unstable ignition timing information
- Misfire conditions tied to inaccurate engine synchronization
- Check engine light concerns involving crankshaft sensor faults
Installation Notes
Verify connector style, cable routing, and sensor mounting location before installation. For best results, inspect the harness and related engine management components for damage or corrosion, and confirm the replacement matches the original 3-pole, 12V specification. This part number, 009163681, is intended for the BMW applications listed above.
Quality Assurance
Hella Electronics OE competence has supported automotive electronic components for over 60 years, and this sensor reflects that application-focused engineering. Part number 009163681 is built to meet the needs of select BMW crankshaft sensor applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1999 | BMW | 318ti | Base | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1998 | BMW | 318i | Base | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1998 | BMW | 318ti | Base | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1997 | BMW | 318i | Base | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1997 | BMW | 318is | Base | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1997 | BMW | 318ti | Base | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1996 | BMW | 318i | Base | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1996 | BMW | 318is | Base | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1996 | BMW | 318ti | Base | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 1996 | BMW | Z3 | Roadster | N/A | Number of Poles: 3; Rated Voltage: 12Volt; *** HELLA Electronics OE competence for over 60 years.; Hella |
