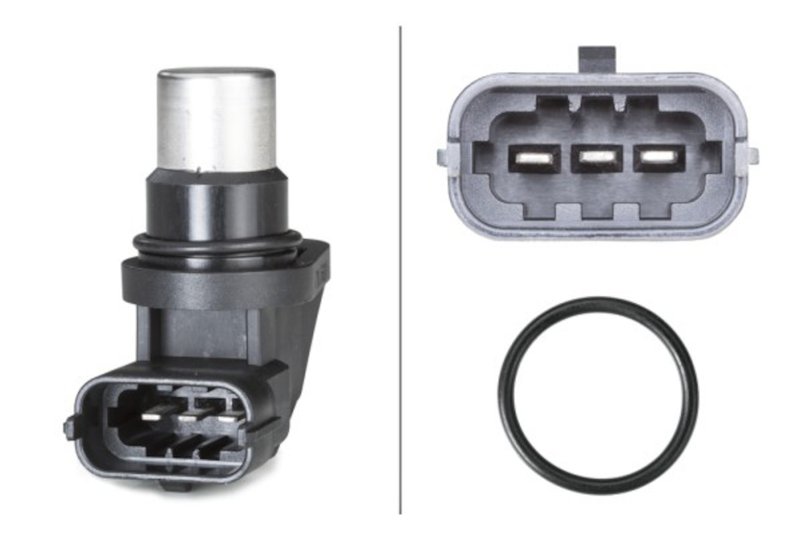

Hella 009163841 Engine Camshaft Position Sensor
| Brand | Hella 009163841 |
|---|---|
| 10795 | 24.20 |
| 10796 | Plastic |
| 10797 | 17.90 |
| Voltage | 12.00 |
| Color | Black |
| Bolt Hole Quantity | 1 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | No |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Terminal Gender | Female |
| Wiring Harness Included | No |
| Mounting Hole Diameter | 6.60 |
| Gasket Or Seal Material | Rubber |
| Mounting Bracket Included | No |
| Seal Outside Diameter | 21.10 |
| Assy/Disassy by Qualified Personnel Required! | . |
| Number of pins | 3 |
| Sensor Type | Impulse sensor |
| Fits | Porsche · 7 vehicles |
OE-spec fit, form, function. Calibrated with advanced diagnostic tools for precise timing data.
Corrosion-resistant terminals. Coatings add durability in demanding engine environments.
Standard replacement. Directly restores camshaft position sensing for ignition and fuel injection timing.
Cross-references ACI 81138, Carlson 19003 and Delphi SS11030 for the same application. See all 61.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
HELLA Camshaft Position Sensor for Porsche
The HELLA Engine Camshaft Position Sensor monitors camshaft position and sends the data needed for ignition timing and fuel injection timing. Built as a standard replacement with OE fit, form, and function, it also uses corrosion-resistant terminals and coatings for added durability.
- Part number: 009163841
- Sensor type: impulse sensor
- 3-pin, rectangular male connector
- 3 terminals with blade-style connection
- 12V electrical specification
- Black plastic housing
- 1 bolt hole mounting design
- Standard replacement grade
Detailed Product Overview
HELLA 009163841 is an engine camshaft position sensor engineered to provide accurate camshaft position data for engine management systems. That signal supports precise ignition and fuel injection timing, which is critical for smooth operation in Porsche applications such as the 2003-2005 Porsche 911, 2004-2005 Porsche Carrera GT, and 2003-2004 Porsche Boxster with a 3-pin connector. The sensor is calibrated with advanced diagnostic tools and built to meet OE specifications for fit, form, and function.
This part cross-references Delphi SS11030 and Facet 9.0344 for the same application. The HELLA 009163841 part number is also commonly searched alongside Porsche camshaft position sensor replacement needs for 911, Carrera GT, and Boxster models.
What This Sensor Helps Address
- Hard starting caused by incorrect camshaft position input
- Rough idle from inconsistent ignition timing signals
- Check engine light concerns related to camshaft sensor faults
- Fuel injection timing errors that affect drivability
- Intermittent engine performance issues tied to sensor signal loss
Installation Notes
Fits 2003-2005 Porsche 911, N/A, 3-Pin Connector. Fits 2004-2005 Porsche Carrera GT, N/A, 3-Pin Connector. Fits 2003-2004 Porsche Boxster, N/A, 3-Pin Connector. Confirm the connector shape, pin count, and mounting details before installation. The sensor does not include mounting hardware, a wiring harness, or a gasket/seal. Assy/disassy by qualified personnel required.
Quality Assurance
HELLA builds this camshaft position sensor to OE specifications and calibrates it with advanced diagnostic tools for consistent signal performance. Corrosion-resistant terminals and coatings support long-term durability in demanding engine environments.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Porsche | 911 | Turbo | N/A | 3-Pin Connector |
| 2005 | Porsche | Carrera GT | Base | N/A | 3-Pin Connector |
| 2004 | Porsche | 911 | Turbo | N/A | 3-Pin Connector |
| 2004 | Porsche | Boxster | S | N/A | 3-Pin Connector |
| 2004 | Porsche | Carrera GT | Base | N/A | 3-Pin Connector |
| 2003 | Porsche | 911 | Carrera | N/A | 3-Pin Connector |
| 2003 | Porsche | Boxster | Roadster | N/A | 3-Pin Connector |
