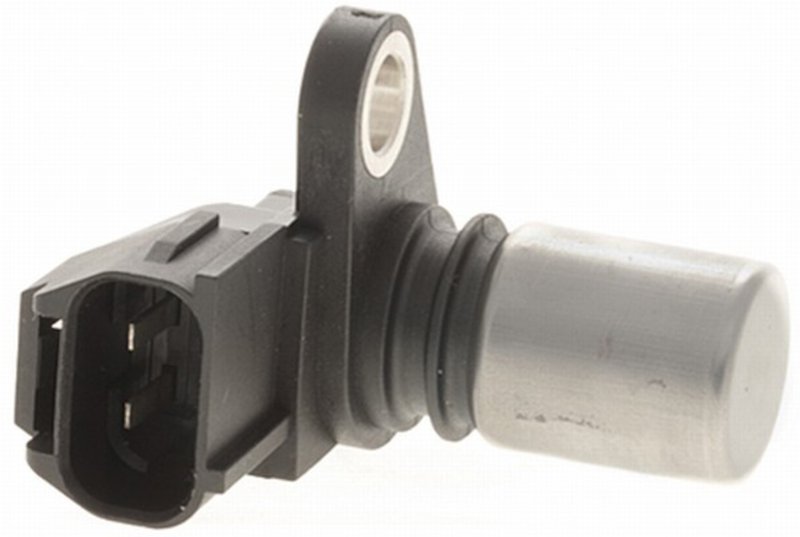

Hella 009167001 Engine Crankshaft Position Sensor
| Brand | Hella 009167001 |
|---|---|
| 10795 | 30.00 |
| 10796 | Metal |
| Voltage | 12.00 |
| Color | Black |
| Terminal Type | Blade |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 1 |
| Terminal Quantity | 2 |
| Connector Gender | Male |
| Terminal Gender | Female |
| Wiring Harness Included | No |
| Sensor Body Diameter | 17.80 |
| Mounting Hole Diameter | 7.50 |
| Mounting Bracket Included | No |
| Assy/Disassy by Qualified Personnel Required! | . |
| Fitting Depth [in] | 1.18 |
| Fitting Depth [mm] | 30 |
| Number of pins | 2 |
| Resistor [Ohm] | 155 |
| Sensor Type | Inductive sensor |
| Supplementary Article/Supplementary Info 2 | Without cable |
| Fits | Volvo · 70 vehicles |
Standard replacement. Direct-fit crankshaft position sensor for service repairs.
Inductive sensor design. Provides engine control systems with crankshaft speed and position data.
Metal housing. Built for resistance to temperature shock, vibration, and engine fluids.
Cross-references ACI 81361, Beck/Arnley 180-0492 and Carlson 19100 for the same application. See all 76.
Engine Speed Signal Sensor
The Hella 009167001 engine crankshaft position sensor provides the engine control system with crankshaft speed and position data. It is a standard replacement sensor built with a metal body and tested for resistance to temperature changes, vibration, and engine fluids.
Compatible with Volvo applications that use a 2-pin connector and without-cable sensor configuration, this part number 009167001 is a direct-fit solution for common crankshaft signal faults. It supports accurate engine timing input for Volvo C30, C70, S60, S40, V50, XC90, S80, V70, and XC70 applications listed below.
- Detects crankshaft speed and position for engine management input
- Metal sensor construction for added resistance to heat and vibration
- Inductive sensor design with a rectangular 2-pin connector
- Standard replacement format for service work on Volvo ignition systems
- Without cable, gasket, seal, or mounting bracket included
Fitment Details
Fits 2008-2013 Volvo C30, N/A.
Fits 2006-2013 Volvo C70, N/A.
Fits 2002-2004 Volvo C70, N/A.
Fits 2012 Volvo S60, N/A.
Fits 2002-2009 Volvo S60, N/A.
Fits 2004-2011 Volvo S40, N/A.
Fits 2005-2011 Volvo V50, N/A.
Fits 2003-2011 Volvo XC90, N/A.
Fits 2002-2010 Volvo S80, N/A.
Fits 2002-2007 Volvo V70, N/A.
Fits 2003-2007 Volvo XC70, N/A.
Common Uses
- Restores crankshaft speed and position signal loss
- Addresses intermittent engine control input errors
- Helps correct drivability issues tied to sensor drift
- Supports repair of heat- or vibration-related sensor failure
- Replaces a damaged or fluid-contaminated crank sensor
Installation Notes
Verify the 2-pin connector, rectangular plug shape, and sensor body dimensions before installation. This sensor uses a single mounting hole and is supplied without cable, wiring harness, gasket, seal, or mounting bracket. Professional installation is recommended because the product notes specify assembly/disassembly by qualified personnel.
Quality Assurance
HELLA tests this sensor for durability against temperature changes, vibration, and engine fluids. The design also focuses on reducing signal drift for stable engine control input.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2013 | Volvo | C30 | T5 | — | — | 2-Pin Connector - without Cable |
| 2013 | Volvo | C70 | T5 | — | — | 2-Pin Connector - without Cable |
| 2012 | Volvo | C30 | T5 | — | — | 2-Pin Connector - without Cable |
| 2012 | Volvo | C70 | T5 | — | — | 2-Pin Connector - without Cable |
| 2012 | Volvo | S60 | T5 | — | — | 2-Pin Connector - without Cable |
| 2011 | Volvo | C30 | T5 | — | — | 2-Pin Connector - without Cable |
| 2011 | Volvo | C70 | T5 | — | — | 2-Pin Connector - without Cable |
| 2011 | Volvo | S40 | T5 | — | — | 2-Pin Connector - without Cable |
| 2011 | Volvo | V50 | T5 | — | — | 2-Pin Connector - without Cable |
| 2011 | Volvo | XC90 | V8 | — | — | 2-Pin Connector - without Cable |
| 2010 | Volvo | C30 | T5 | — | — | 2-Pin Connector - without Cable |
| 2010 | Volvo | C70 | T5 | — | — | 2-Pin Connector - without Cable |
| 2010 | Volvo | S40 | T5 R-Design | — | — | 2-Pin Connector - without Cable |
| 2010 | Volvo | S80 | V8 | — | — | 2-Pin Connector - without Cable |
| 2010 | Volvo | V50 | T5 R-Design | — | — | 2-Pin Connector - without Cable |
| 2010 | Volvo | XC90 | V8 | — | — | 2-Pin Connector - without Cable |
| 2009 | Volvo | C30 | T5 | — | — | 2-Pin Connector - without Cable |
| 2009 | Volvo | C70 | T5 | 2.5L | L5 | 2-Pin Connector - without Cable |
| 2009 | Volvo | S40 | T5 | — | — | 2-Pin Connector - without Cable |
| 2009 | Volvo | S60 | T5 | — | — | 2-Pin Connector - without Cable |
| 2009 | Volvo | S80 | V8 | — | — | 2-Pin Connector - without Cable |
| 2009 | Volvo | V50 | T5 | — | — | 2-Pin Connector - without Cable |
| 2009 | Volvo | XC90 | V8 | — | — | 2-Pin Connector - without Cable |
| 2008 | Volvo | C30 | T5 | — | — | 2-Pin Connector - without Cable |
| 2008 | Volvo | C70 | T5 | 2.5L | L5 | 2-Pin Connector - without Cable |
| 2008 | Volvo | S40 | T5 | — | — | 2-Pin Connector - without Cable |
| 2008 | Volvo | S60 | T5 | — | — | 2-Pin Connector - without Cable |
| 2008 | Volvo | S80 | V8 | — | — | 2-Pin Connector - without Cable |
| 2008 | Volvo | V50 | T5 | — | — | 2-Pin Connector - without Cable |
| 2008 | Volvo | XC90 | V8 | — | — | 2-Pin Connector - without Cable |
| 2007 | Volvo | C70 | T5 | 2.5L | L5 | 2-Pin Connector - without Cable |
| 2007 | Volvo | S40 | T5 | — | — | 2-Pin Connector - without Cable |
| 2007 | Volvo | S60 | T5 | — | — | 2-Pin Connector - without Cable |
| 2007 | Volvo | S80 | V8 | — | — | 2-Pin Connector - without Cable |
| 2007 | Volvo | V50 | T5 | 2.5L | L5 | 2-Pin Connector - without Cable |
| 2007 | Volvo | V70 | R | — | — | 2-Pin Connector - without Cable |
| 2007 | Volvo | XC70 | Base | — | — | 2-Pin Connector - without Cable |
| 2007 | Volvo | XC90 | V8 | — | — | 2-Pin Connector - without Cable |
| 2006 | Volvo | C70 | T5 | 2.5L | L5 | 2-Pin Connector - without Cable |
| 2006 | Volvo | S40 | T5 | 2.5L | L5 | 2-Pin Connector - without Cable |
| 2006 | Volvo | S60 | T5 | — | — | 2-Pin Connector - without Cable |
| 2006 | Volvo | S80 | 2.5T AWD | — | — | 2-Pin Connector - without Cable |
| 2006 | Volvo | V50 | T5 | — | — | 2-Pin Connector - without Cable |
| 2006 | Volvo | V70 | R | — | — | 2-Pin Connector - without Cable |
| 2006 | Volvo | XC70 | Base | — | — | 2-Pin Connector - without Cable |
| 2006 | Volvo | XC90 | V8 | — | — | 2-Pin Connector - without Cable |
| 2005 | Volvo | S40 | T5 | 2.5L | L5 | 2-Pin Connector - without Cable |
| 2005 | Volvo | S60 | R | — | — | 2-Pin Connector - without Cable |
| 2005 | Volvo | S80 | T6 | — | — | 2-Pin Connector - without Cable |
| 2005 | Volvo | V50 | T5 | — | — | 2-Pin Connector - without Cable |
| 2005 | Volvo | V70 | T5 | — | — | 2-Pin Connector - without Cable |
| 2005 | Volvo | XC70 | Base | — | — | 2-Pin Connector - without Cable |
| 2005 | Volvo | XC90 | V8 | — | — | 2-Pin Connector - without Cable |
| 2004 | Volvo | C70 | Base | 2.4L | L5 | 2-Pin Connector - without Cable |
| 2004 | Volvo | S40 | i | — | — | 2-Pin Connector - without Cable |
| 2004 | Volvo | S60 | T5 | — | — | 2-Pin Connector - without Cable |
| 2004 | Volvo | S80 | T6 | — | — | 2-Pin Connector - without Cable |
| 2004 | Volvo | V70 | T5 | — | — | 2-Pin Connector - without Cable |
| 2004 | Volvo | XC70 | Base | — | — | 2-Pin Connector - without Cable |
| 2004 | Volvo | XC90 | T6 | — | — | 2-Pin Connector - without Cable |
| 2003 | Volvo | C70 | Base | 2.4L | L5 | 2-Pin Connector - without Cable |
| 2003 | Volvo | S60 | T5 | — | — | 2-Pin Connector - without Cable |
| 2003 | Volvo | S80 | T6 | 2.9L | L6 | 2-Pin Connector - without Cable |
| 2003 | Volvo | V70 | T5 | — | — | 2-Pin Connector - without Cable |
| 2003 | Volvo | XC70 | X/C | — | — | 2-Pin Connector - without Cable |
| 2003 | Volvo | XC90 | T6 | — | — | 2-Pin Connector - without Cable |
| 2002 | Volvo | C70 | Base | 2.4L | L5 | 2-Pin Connector - without Cable |
| 2002 | Volvo | S60 | T5 | — | — | 2-Pin Connector - without Cable |
| 2002 | Volvo | S80 | T6 | 2.9L | L6 | 2-Pin Connector - without Cable |
| 2002 | Volvo | V70 | T5 | — | — | 2-Pin Connector - without Cable |
