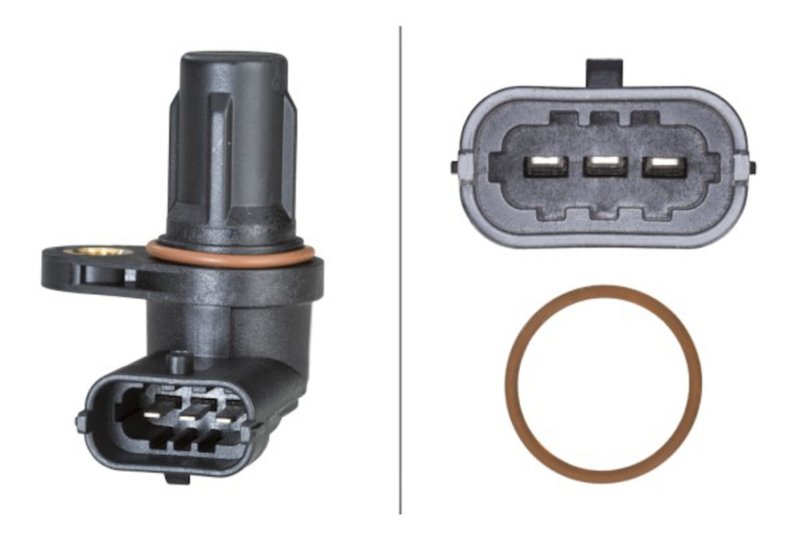

Hella 009168081 Engine Camshaft Position Sensor - Right

Hella 009168081 Camshaft Position Sensor

The Hella 009168081 engine camshaft position sensor is built for accurate engine timing signal detection in a wide range of Fiat, Hyundai, Kia, Dodge, and Jeep applications. With a 3-pin connector, a 28.2 mm fitting depth, and an included seal ring, it is specified for direct replacement use where precise camshaft position input is required.

Key Features

• Engine camshaft position sensor for timing signal monitoring
• 3 connector terminals for OE-style electrical connection
• 28.2 mm fitting depth for application-specific installation
• Includes seal ring for a more secure sensor interface
• Hella part number 009168081 for catalog and cross-reference lookup

Product Details

Hella 009168081 is an ignition sensor designed to read camshaft position data used by the engine control system for synchronization and timing management. This sensor is listed across multiple vehicle platforms, including Fiat 124 Spider, Fiat 500, Fiat 500L, Fiat 500X, Hyundai Elantra, Jeep Renegade, Kia K900, Dodge Dart, Hyundai Equus, Hyundai Genesis, and Kia Borrego. For shoppers searching by application, this Hella camshaft position sensor for Fiat 500 and Hyundai Genesis models is a direct-fit replacement option where the OE-style connector and seal ring are required.

This part cross-references Delphi SS11146 and Dorman - HELP 79338 for the same application.

What It Helps Address

• Hard starting caused by an incorrect camshaft position signal
• Intermittent stalling related to timing signal loss
• Check engine light conditions tied to camshaft sensor faults
• Rough idle or poor engine synchronization
• Driveability issues on vehicles such as the Fiat 500, Hyundai Elantra, and Jeep Renegade

Installation Notes

Verify connector style, fitting depth, and seal condition before installation. This sensor uses a 3-pin connector and includes a seal ring, so the mounting surface should be clean and free of debris before the new unit is installed. Confirm the exact engine application against the vehicle catalog, especially on models with multiple sensor locations or engine configurations.

• Fits 2017-2020 Fiat 124 Spider, N/A
• Fits 2014-2020 Fiat 500L, N/A
• Fits 2012-2019 Fiat 500, N/A
• Fits 2017-2019 Hyundai Elantra, Right
• Fits 2016-2018 Fiat 500X, N/A
• Fits 2015-2018 Jeep Renegade, N/A
• Fits 2015-2017 Kia K900, N/A
• Fits 2013-2016 Dodge Dart, N/A
• Fits 2011-2016 Hyundai Equus, N/A
• Fits 2009-2016 Hyundai Genesis, N/A
• Fits 2009 Kia Borrego, N/A

Quality Assurance

Hella is an established OE-focused automotive brand, and this sensor is cataloged with application-specific dimensions and connector details to support accurate replacement selection. Use the part number 009168081 to confirm the correct match before ordering.
