Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

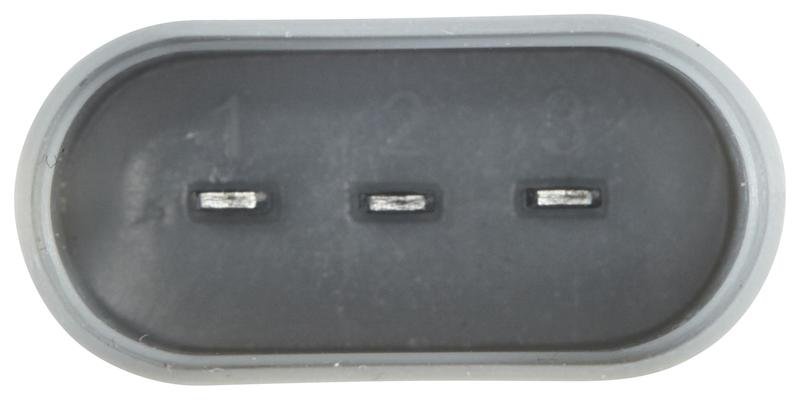

Hella 009168091 Engine Camshaft Position Sensor
| Brand | Hella 009168091 |
|---|---|
| 10796 | Plastic |
| Voltage | 12.00 |
| Color | Black |
| Wiring Harness Length | 330.00 |
| Bolt Hole Quantity | 1 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | No |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Terminal Gender | Female |
| Wiring Harness Included | Yes |
| Mounting Hole Diameter | 6.50 |
| Mounting Bracket Included | No |
| Assy/Disassy by Qualified Personnel Required! | . |
| Housing Color | Black |
| Length [in] | 12.99 |
| Length [mm] | 330 |
| Number of mounting bores | 1 |
| Number of pins | 3 |
| Sensor Type | Hall sensor |
| Fits | Volkswagen · 2 vehicles |
OE-spec replacement. Matches fit, form, and function for straightforward installation.
Hall sensor design. Provides precise camshaft position data for ignition and fuel timing.
Corrosion-resistant terminals. Built with durable coatings for long-lasting electrical performance.
Cross-references ACI 81024, BBB Industries 19050 and Beck/Arnley 180-0598 for the same application. See all 63.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
HELLA Camshaft Position Sensor for Volkswagen Jetta
The HELLA Engine Camshaft Position Sensor monitors camshaft position so the engine control system can manage ignition timing and fuel injection timing with the correct signal. Built as a standard replacement with OE fit, form, and function, this sensor is a direct choice for 2005-2006 Volkswagen Jetta models with a 3-pin connector.
- Brand: Hella
- Part Number: 009168091
- Engine camshaft position sensor with Hall sensor design
- OE-spec fit, form, and function
- Black plastic housing and black connector body
- 3-pin rectangular male connector with female terminals
- 12V electrical specification
- Corrosion-resistant terminals and protective coatings for durability
- Wiring harness included; harness length 330 mm (12.99 in.)
OE-Style Signal Control
This HELLA camshaft position sensor uses a Hall sensor design to read camshaft position and send accurate timing data to the engine management system. The result is precise input for ignition and fuel delivery control on the Volkswagen Jetta, helping maintain proper synchronization in the engine control strategy. Part number 009168091 is calibrated with advanced diagnostic tools and built to meet OE specifications for fit, form, and function.
Compatible With 2005-2006 Volkswagen Jetta, 3-Pin Connector. This part cross-references Standard Ignition PC725 for the same application.
What It Helps Address
- Camshaft position signal faults
- Check engine light concerns related to cam sensor performance
- Hard starting caused by incorrect timing input
- Rough running from inconsistent ignition or fuel injection timing
- Driveability issues tied to a failing engine position sensor
Installation Notes
Verify the connector style, mounting hole diameter, and harness routing before installation. This sensor uses one mounting bore, a rectangular connector, and a 3-pin layout, so matching the original configuration is important for proper fitment on the Jetta. Assy/disassy by qualified personnel required.
Quality Assurance
HELLA builds this sensor to OE specifications and uses corrosion-resistant terminals and coatings to support long-term durability. The part is calibrated with advanced diagnostic tools to help ensure consistent signal output and reliable engine management performance.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2006 | Volkswagen | Jetta | TDI | 3-Pin Connector |
| 2005 | Volkswagen | Jetta | TDI | 3-Pin Connector |
| No rows match your filter. | ||||
