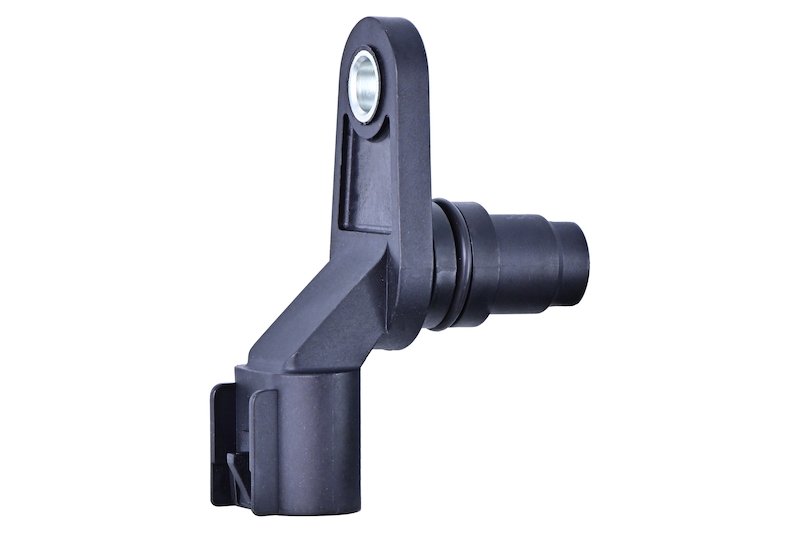

Hella 009168641 Engine Camshaft Position Sensor

Engine Camshaft Position Sensor Overview

This Hella engine camshaft position sensor provides the camshaft position signal used for ignition and fuel injection timing. It is a standard replacement sensor built to OE specifications for fit, form, and function, with corrosion-resistant terminals and coatings for added durability.

Part number 009168641 is a direct-fit style solution for a wide range of GM applications, including Chevrolet Malibu, Chevrolet Equinox, and Buick Regal models. The sensor uses a Hall sensor design, a 3-pin rectangular connector, and includes a seal ring for a secure installation.

Key Features

• Hall sensor design for camshaft position signal input
• OE-spec fit, form, and function
• Corrosion-resistant terminals and protective coatings
• 3-pin rectangular connector with male connector gender
• Plastic housing with rubber seal material
• Standard replacement grade for service use

Detailed Description

Hella 009168641 is an engine camshaft position sensor engineered to report camshaft position data to the engine management system. That signal is used to coordinate ignition timing and fuel injection timing, making accurate sensor output important for drivability and engine control. The sensor is calibrated with advanced diagnostic tools and built with a blade terminal layout, 12V electrical specification, and a single mounting hole design.

Fitment coverage includes 2006-2017 Chevrolet, Buick, GMC, Pontiac, Saturn, and Saab applications. Fits 2010-2017 Chevrolet Equinox, N/A; Fits 2011-2017 Buick Regal, N/A; Fits 2007-2014 Chevrolet Malibu, N/A. This part cross-references Bosch (e.g., 17231) for the same application.

What It Is Used For

• Restoring camshaft position signal accuracy
• Addressing ignition timing irregularities
• Addressing fuel injection timing faults
• Replacing a worn or corrosion-affected sensor
• Resolving engine management warning conditions tied to sensor output

Installation Notes and Tips

Fitment notes vary by application, and some listings specify inclusion of a bolt and seal. The sensor uses a 3-pin connector and a seal ring, so verify connector shape, terminal count, and mounting details before installation. Qualified personnel are required for assembly or disassembly.

Quality Assurance

Hella builds this sensor to OE specifications and calibrates it using advanced diagnostic tools. Corrosion-resistant terminals and coatings add durability in service.
