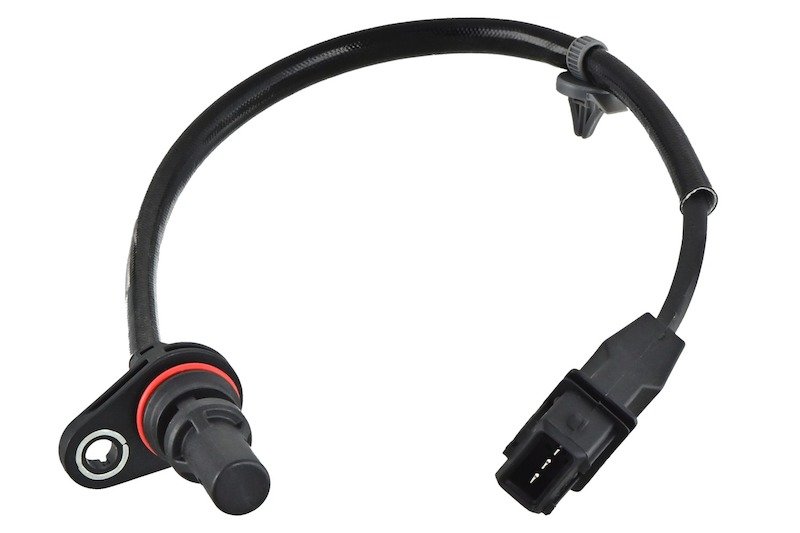

Hella 009168991 Engine Crankshaft Position Sensor

Engine Crankshaft Position Sensor Overview

This Hella engine crankshaft position sensor provides the engine control system with crankshaft speed and position data for accurate operation. It is a standard replacement sensor built with a Hall sensor design, a 3-pin connector, and a 285 mm cable for applications that require this configuration.

Compatible With Hyundai Santa Fe Sport, Kia Optima, Kia Sportage, Hyundai Sonata, Hyundai Tucson, Kia Sorento, Kia Forte, Kia Forte Koup, Hyundai Santa Fe, and Kia Rondo applications listed below. Part number 009168991 is also referenced by multiple aftermarket cross numbers for the same application.

• Hall sensor design for precise crankshaft signal input.
• Plastic sensor body with black finish and integrated seal ring.
• 3-pin rectangular connector with male connector gender and female terminals.
• Wiring harness included with a 285 mm cable length.
• Standard replacement grade for direct service use.

Detailed Product Description

The Hella 009168991 crankshaft position sensor is engineered to detect crankshaft speed and position so the engine management system can calculate timing and engine operation data. Its Hall sensor design, sealed construction, and temperature-shock-resistant build address the demands of underhood service, while the tested resistance to vibration and engine fluids supports consistent signal delivery. This part number 009168991 is a fitment-specific replacement for a range of Hyundai and Kia vehicles, including Hyundai Sonata and Kia Optima applications with the listed 3-pin connector and 285 mm cable configuration.

Hella supplies this sensor as a standard replacement option for vehicles that require a rectangular 3-pin connector, blade terminals, and an O-ring seal. The included harness and seal ring match the application details shown in the fitment data, helping maintain the correct electrical and sealing setup for the engine crankshaft position sensor location. Part number 009168991 is also cross-referenced to other aftermarket numbers for the same application.

Common Issues This Sensor Can Address

• Intermittent crankshaft speed or position signal loss.
• Engine control faults related to crankshaft sensor input.
• Rough running caused by inaccurate timing data.
• Starting problems tied to a failed crankshaft position sensor.
• Signal drift from heat, vibration, or fluid exposure.

Installation Notes and Tips

Installation requires qualified personnel, as noted in the product data. Verify the connector style, terminal count, cable length, and seal type against the original sensor before installation. Confirm the application details for your Hyundai or Kia model, since the listed fitment includes multiple engine-management configurations. Part number 009168991 should be matched to the vehicle’s original sensor specifications before service.

Quality Assurance

HELLA tests this sensor for durability against temperature changes, vibration, and engine fluids. The robust construction is intended to maintain signal stability and reduce drift under demanding operating conditions.
