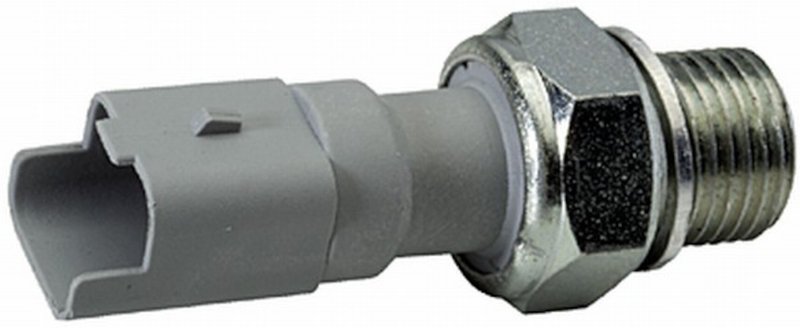

Hella 009600041 Engine Oil Pressure Switch
HELLA Engine Oil Pressure Switch 009600041
The HELLA 009600041 engine oil pressure switch is a standard replacement part built for accurate oil pressure monitoring in 12V vehicle electrical systems. With a 0.5 bar switching pressure, M16 x 1.5 metric thread, and a single-pin design, it supports reliable warning-light operation in select Audi, Volkswagen, and Mini applications.
HELLA’s switch lineup covers a wide range of vehicle functions, and this HELLA 009600041 oil pressure switch reflects that OE-focused approach with a compact gray housing, angular connector shape, and normally closed contact design.
Key Features
- Engine oil pressure switch for 12V systems
- Switching pressure: 0.5 bar
- Thread size: M16 x 1.5 with metric thread
- 1 connector, 1 terminal, 1 pin
- Angular connector shape for direct-fit style replacement
- Standard replacement grade
- Gray housing with original part color noted as brown
Detailed Description
This HELLA engine oil pressure switch is used to monitor oil pressure and trigger the vehicle’s warning circuit when pressure drops below the specified threshold. The normally closed contact design and single-terminal layout make it a straightforward OE-style replacement for vehicles that use this pressure specification. The HELLA 009600041 part number is listed for select 2015-2016 Audi A3 and 2015 Volkswagen Beetle, Golf, Golf SportWagen, Jetta, and Passat applications, plus 2007-2012 Mini Cooper coverage with the specified 0.5 bar switch pressure. This part cross-references Standard Ignition PS716 for the same application.
What It Helps Address
- Oil pressure warning light staying on or triggering incorrectly
- Intermittent oil pressure signal at the instrument cluster
- Faulty switch readings caused by worn internal contacts
- Replacement needs after oil pressure switch electrical failure
- Restoring proper oil pressure warning function on select Audi, Volkswagen, and Mini models
Installation Notes and Tips
Verify the thread size, connector style, and pressure specification before installation. This switch uses an M16 x 1.5 metric thread, a 21 mm spanner size, and a single-pin connection with an angular connector shape. Assy/disassy by qualified personnel required is noted in the product data, so installation should be performed by a trained technician following the vehicle service procedure. Confirm the vehicle’s oil pressure circuit requirements before replacing the original unit.
Quality Assurance
HELLA supplies a broad range of vehicle switches with OE-focused engineering and standard replacement coverage. The 009600041 oil pressure switch is built to match the specified pressure and connector requirements for listed applications, including Audi A3, Volkswagen Beetle, Volkswagen Golf, Volkswagen Golf SportWagen, Volkswagen Jetta, Volkswagen Passat, and Mini Cooper fitments. Part number 009600041 is also referenced in multiple OE and aftermarket cross listings for application matching.
| Brand | Hella |
| Part Number | 009600041 |
| Position | Genuine OE from HELLA |
| Color | Gray |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Angular |
| Terminal Quantity | 1 |
| Connector Gender | Male female |
| Terminal Gender | Male |
| Assy/Disassy by Qualified Personnel Required! | . |
| Combi Switch Function | Normally closed contact |
| Number of pins | 1 |
| Original Part Color | Brown |
| Pressure [bar] | 0.5 |
| Spanner Size [mm] | 21 |
| Thread Size | M16 x 1.5 |
| Thread Type | With metric thread |
| Voltage [VDC] | 12 |
This part fits 31 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Audi | A3 | TDI Prestige | N/A | 2.3-3.0 BAR; Genuine OE from HELLA | ||
| 2015 | Audi | A3 | TDI Premium | N/A | 2.3-3.0 BAR; Genuine OE from HELLA | ||
| 2015 | Volkswagen | Beetle | TDI | N/A | 2.3-3.0 BAR; Genuine OE from HELLA | ||
| 2015 | Volkswagen | Golf | TDI SEL | N/A | 2.3-3.0 BAR; Genuine OE from HELLA | ||
| 2015 | Volkswagen | Golf SportWagen | TDI SE | N/A | 2.3-3.0 BAR; Genuine OE from HELLA | ||
| 2015 | Volkswagen | Jetta | TDI SEL | N/A | 2.3-3.0 BAR; Genuine OE from HELLA | ||
| 2015 | Volkswagen | Passat | TDI SEL Premium | N/A | 2.3-3.0 BAR; Genuine OE from HELLA | ||
| 2012 | Mini | Cooper | Roadster John Cooper Works | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2012 | Mini | Cooper | John Cooper Works Clubman | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2012 | Mini | Cooper | Coupe John Cooper Works | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2012 | Mini | Cooper | John Cooper Works | 1.6L | L4 | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2011 | Mini | Cooper | John Cooper Works Clubman | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2011 | Mini | Cooper | John Cooper Works | 1.6L | L4 | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2010 | Mini | Cooper | S | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2010 | Mini | Cooper | John Cooper Works Clubman | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2010 | Mini | Cooper | Clubman | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2010 | Mini | Cooper | Base | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2010 | Mini | Cooper | S Clubman | 1.6L | L4 | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2010 | Mini | Cooper | John Cooper Works | 1.6L | L4 | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2009 | Mini | Cooper | S | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2009 | Mini | Cooper | S Clubman | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2009 | Mini | Cooper | John Cooper Works Clubman | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2009 | Mini | Cooper | Clubman | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2009 | Mini | Cooper | Base | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2009 | Mini | Cooper | John Cooper Works | 1.6L | L4 | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2008 | Mini | Cooper | S Clubman | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2008 | Mini | Cooper | Clubman | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella | ||
| 2008 | Mini | Cooper | S | 1.6L | L4 | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2008 | Mini | Cooper | Base | 1.6L | L4 | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2007 | Mini | Cooper | S | 1.6L | L4 | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2007 | Mini | Cooper | Base | 1.6L | L4 | N/A | Has the same colour as the orginal part: Brown / Grey; Switch Pressure [bar]: 0,5; Combi Switch Function: Opener; *** HELLA Electronics OE competence for over 60 years.; Hella |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
