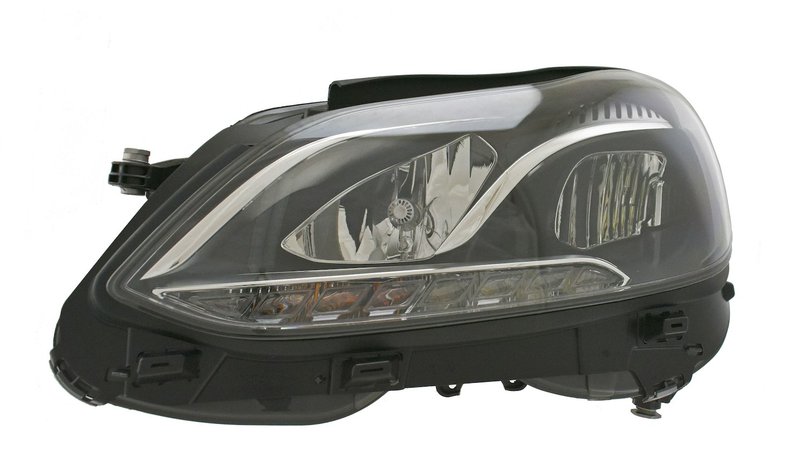

Hella 011066651 Headlight Assembly - Front Left

Mercedes-Benz E-Class Left Headlight Assembly

This Hella left headlight assembly is built for select 2014-2016 Mercedes-Benz E-Class models with the front-left lighting position. It combines halogen lighting with LED low beam and daytime running light functions, plus an integrated indicator, for a direct replacement on the specified vehicles.

• Hella headlight assembly, part number 011066651
• Front left / left-hand fitting position
• Bulb type: H7 / PSY24W
• Halogen light design with included bulbs
• 5 light functions, including indicator
• 12V rated voltage
• SAE inspection tag
• For right-hand traffic applications
• Without LED control unit for low beam/high beam
• Without Mercedes-Benz lettering

Product Details

Hella 011066651 is a left-side headlight assembly for Mercedes-Benz E250, E350, E400, E63 AMG, E63 AMG S, and E550 applications listed below. It is specified for front-left installation and uses H7 / PSY24W bulb technology with halogen lighting design, while the fitment notes also reference LED low beam and LED daytime running light functions on the supported vehicles. This part cross-references OE numbers such as A 212 820 05 59 and A 212 820 21 39 for the same application.

The Hella brand is widely recognized in automotive lighting, and this assembly follows the OE-style configuration expected for Mercedes-Benz E-Class front lighting service. The part number 011066651 is also useful when verifying the correct left headlamp for the listed chassis and trim combinations.

Vehicle Fitment

• Fits 2014-2016 Mercedes-Benz E250, front left. Notes: Bulb Type H7 / LED / PSY24W; low beam (LED), indicator, high beam, and daytime running light (LED); without Mercedes-Benz lettering; SAE; Hella.
• Fits 2014-2016 Mercedes-Benz E350, front left. Notes: Bulb Type H7 / LED / PSY24W; low beam (LED), indicator, high beam, and daytime running light (LED); without Mercedes-Benz lettering; SAE; Hella.
• Fits 2014-2016 Mercedes-Benz E400, front left. Notes: Bulb Type H7 / LED / PSY24W; low beam (LED), indicator, high beam, and daytime running light (LED); without Mercedes-Benz lettering; SAE; Hella.
• Fits 2014-2016 Mercedes-Benz E63 AMG S, front left. Notes: Bulb Type H7 / LED / PSY24W; low beam (LED), indicator, high beam, and daytime running light (LED); without Mercedes-Benz lettering; SAE; Hella.
• Fits 2014-2015 Mercedes-Benz E63 AMG, front left. Notes: Bulb Type H7 / LED / PSY24W; low beam (LED), indicator, high beam, and daytime running light (LED); without Mercedes-Benz lettering; SAE; Hella.
• Fits 2014 Mercedes-Benz E550, front left. Notes: Bulb Type H7 / LED / PSY24W; low beam (LED), indicator, high beam, and daytime running light (LED); without Mercedes-Benz lettering; SAE; Hella.

Common Replacement Reasons

• Cracked or moisture-damaged front left headlamp housing
• Dim, failed, or inconsistent headlight output
• Broken indicator or daytime running light function
• Restoring proper lighting on a Mercedes-Benz E250, E350, E400, E63 AMG, E63 AMG S, or E550
• Replacing a worn OE-style left headlight assembly with the correct Hella unit

Installation Notes

Confirm the vehicle is equipped for the listed front-left application before ordering. This assembly is for right-hand traffic use and is supplied without the LED control unit for low beam/high beam, so existing vehicle equipment must match the part configuration. Verify bulb type, connector layout, and Mercedes-Benz E-Class fitment against the original unit before installation.

Quality Assurance

Hella lighting components are built to OE-level specifications for vehicle-specific replacement use. This assembly carries an SAE inspection tag and is identified for the exact Mercedes-Benz E-Class applications shown above.
