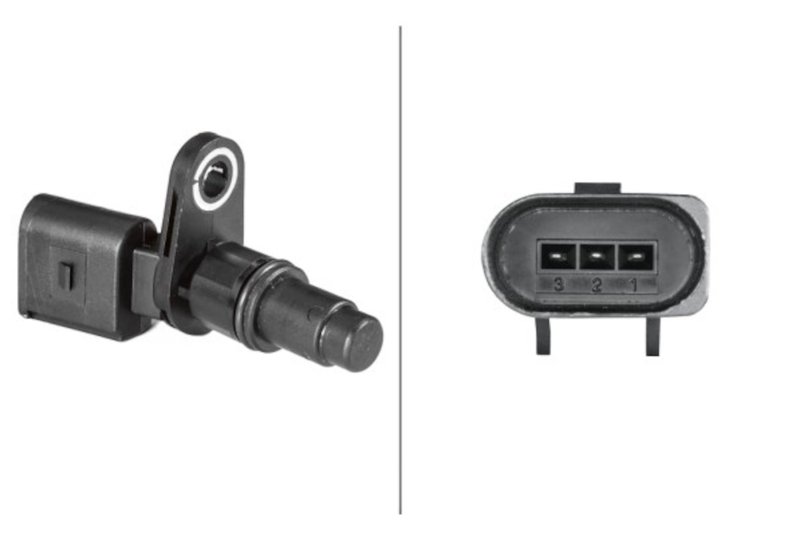

Hella 013122101 Engine Camshaft Position Sensor
HELLA Camshaft Position Sensor 013122101
The HELLA Engine Camshaft Position Sensor 013122101 provides camshaft position data used for ignition timing and fuel injection timing control. Built as a standard replacement sensor with a 3-pin male connector, bolt-on mounting, and included rubber seal, it is a direct-fit service part for select Audi and Volkswagen applications.
Key Features
- Engine camshaft position sensor / impulse sensor
- 3-terminal design with rectangular connector shape
- Male connector and female terminals
- Bolt-on mounting with 1 bolt hole
- Includes gasket/seal; seal material is rubber
- Black plastic sensor body
- Corrosion-resistant terminals and coatings for durability
- Calibrated using advanced diagnostic tools
- Meets OE specifications for fit, form, and function
Detailed Description
HELLA 013122101 is engineered to read camshaft position accurately so the engine control system can manage ignition and fuel delivery timing. The sensor uses a 3-pin configuration, 12V electrical specification, and a bolt-on mounting style with a 15.90 mm sensor body diameter and 16.60 mm seal outside diameter. Its standard replacement design supports service work where OE-style fitment and connector layout matter.
Compatible With select Audi A8 Quattro, Audi RS4, and Volkswagen Touareg applications. Fits 2007-2009 Audi A8 Quattro, N/A; Fits 2007-2008 Audi RS4, N/A; Fits 2006-2008 Volkswagen Touareg, N/A; Fits 2004 Volkswagen Touareg, N/A; Fits 2005-2006 Audi A8 Quattro, N/A. This part cross-references Standard Ignition PC673 for the same application.
What It Helps Address
- Camshaft position signal loss
- Hard starting caused by incorrect timing input
- Rough idle related to sensor signal errors
- Check engine light concerns tied to camshaft sensor faults
- Fuel injection timing irregularities
Installation Notes
Verify the connector style, 3-pin terminal layout, and bolt-on mounting before installation. The sensor is supplied with a seal, and no wiring harness or mounting hardware is included. Confirm the OE part number and vehicle application for Audi A8 Quattro, Audi RS4, or Volkswagen Touareg service before replacement.
Quality Assurance
HELLA calibrates this sensor with advanced diagnostic tools and builds it to OE specifications for fit, form, and function. Corrosion-resistant terminals and protective coatings are used to support long-term service in engine bay conditions.
| Brand | Hella |
| Part Number | 013122101 |
| Position | Hella |
| 10795 | 35.70 |
| 10796 | Plastic |
| Voltage | 12.00 |
| Color | Black |
| Bolt Hole Quantity | 1 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Terminal Gender | Female |
| Wiring Harness Included | No |
| Mounting Hole Diameter | 6.60 |
| Gasket Or Seal Material | Rubber |
| Mounting Type | Bolt on |
| Mounting Bracket Included | No |
| Seal Outside Diameter | 16.60 |
| Assy/Disassy by Qualified Personnel Required! | . |
| Mounting Type | Bolted |
| Number of pins | 3 |
| Sensor Body Diameter [mm] | 15.90 |
| Sensor Type | Impulse sensor |
| Supplementary Article/Supplementary Info | With seal |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Audi | A8 Quattro | L | 6.0L | W12 | N/A | Engine Crankshaft Position Sensor designed for accurate crankshaft position detection.; Hella |
| 2008 | Audi | A8 Quattro | L | 6.0L | W12 | N/A | Engine Crankshaft Position Sensor designed for accurate crankshaft position detection.; Hella |
| 2008 | Audi | RS4 | Cabriolet | N/A | 3-Pin Connector - Bolted - with Seal | ||
| 2008 | Volkswagen | Touareg | TDI | N/A | 3-Pin Connector - Bolted - with Seal | ||
| 2007 | Audi | A8 Quattro | L | 6.0L | W12 | N/A | Engine Crankshaft Position Sensor designed for accurate crankshaft position detection.; Hella |
| 2007 | Audi | RS4 | Base | 4.2L | V8 | N/A | 3-Pin Connector - Bolted - with Seal |
| 2007 | Volkswagen | Touareg | TDI | 5.0L | V10 | N/A | 3-Pin Connector - Bolted - with Seal |
| 2006 | Audi | A8 Quattro | L | 6.0L | W12 | N/A | 3-Pin Connector - Bolted - with Seal |
| 2006 | Volkswagen | Touareg | TDI | N/A | 3-Pin Connector - Bolted - with Seal | ||
| 2005 | Audi | A8 Quattro | L | 6.0L | W12 | N/A | 3-Pin Connector - Bolted - with Seal |
| 2004 | Volkswagen | Touareg | TDI | N/A | 3-Pin Connector - Bolted - with Seal |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
