Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

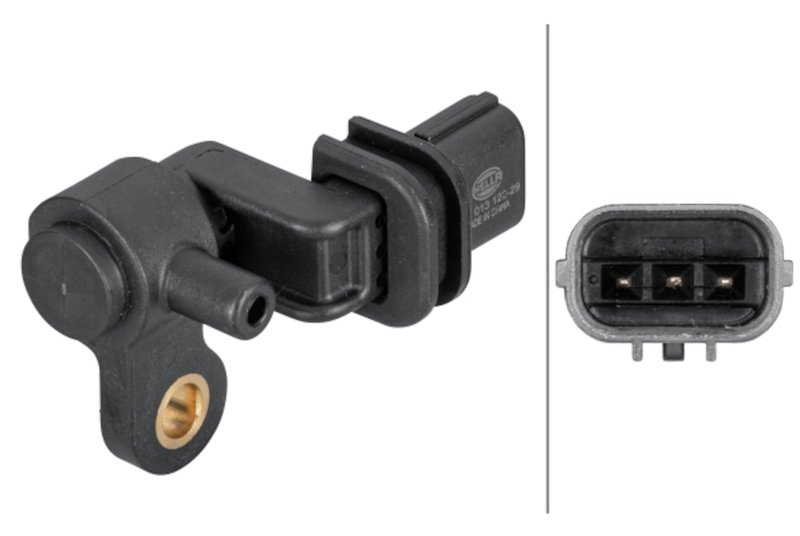

Hella 013122291 Engine Crankshaft Position Sensor
| Brand | Hella 013122291 |
|---|---|
| Number of Poles | 3 |
| Sensor Type | Hall sensor |
| Product line | Hella |
| Fits | Honda · 58 vehicles |
Hall sensor. Provides precise crankshaft speed and position data for engine control systems.
Robust construction. Resists temperature shock and helps reduce signal drift.
Durability tested. Built to withstand temperature changes, vibration, and engine fluids.
Cross-references ACI 81366, AMS Automotive S1006 and BBB Industries 17210 for the same application. See all 58.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hella Crankshaft Position Sensor for Civic
The Hella Engine Crankshaft Position Sensor monitors crankshaft speed and position so the engine control system can manage timing and fuel delivery with accurate input. This Hella 013122291 replacement is built with a 3-pole Hall sensor design and construction that resists temperature shock, vibration, engine fluids, and signal drift.
Key Features
- Engine crankshaft position sensor for ignition and engine management systems
- 3-pole Hall sensor design for precise crankshaft speed and position detection
- Built to withstand temperature changes, vibration, and exposure to engine fluids
- Helps maintain stable sensor output under demanding underhood conditions
- Part number 013122291 for direct catalog lookup
Product Details
Hella 013122291 is an engine crankshaft position sensor for 2001-2005 Honda Civic applications. It provides the crankshaft position data the ECU uses to coordinate ignition timing and fuel control. The Hella brand line focuses on OE-style electrical and sensor components, and this sensor follows that approach with a Hall-effect design and durable housing for consistent signal performance. This part cross-references Standard Ignition PC477 for the same application.
Common Issues It May Address
- Crankshaft position sensor fault codes
- Hard starting or extended crank time
- Intermittent stalling or engine cut-out
- Rough running caused by inaccurate crank signal input
- Timing and synchronization problems reported by the ECU
Installation Notes
Fits 2001-2005 Honda Civic, N/A. Confirm the 3-pole connector style and sensor location before installation. Inspect the harness, connector terminals, and mounting surface for damage or contamination before replacing the sensor. Clear diagnostic trouble codes and verify engine operation after installation. Part number 013122291 should be matched to the vehicle application before ordering.
Quality Assurance
HELLA tests this crankshaft position sensor for durability against temperature changes, vibration, and engine fluids to support reliable operation in the engine bay.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2005 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | EX Special Edition | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | Value Package | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | LX Special Edition | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | Value Package | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | LX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | LX Special Edition | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | HX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | GX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | EX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | EX Special Edition | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | DX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | Value Package | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | Value Package | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | LX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | HX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | GX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | EX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | DX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | LX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | HX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | GX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | EX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | DX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | LX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | HX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | GX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | EX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | DX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | LX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | HX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | GX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | EX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | DX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
