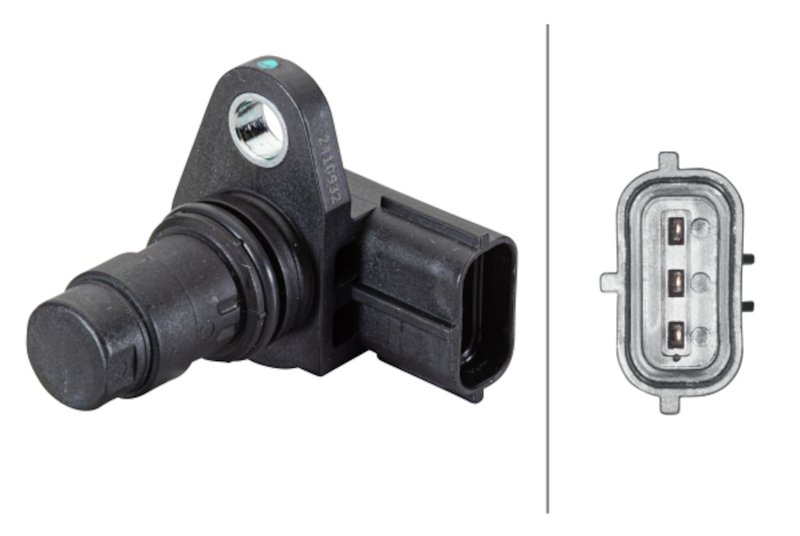

Hella 013122311 Engine Camshaft Position Sensor

HELLA Camshaft Position Sensor for Volvo

The HELLA Engine Camshaft Position Sensor, part number 013122311, provides camshaft position data used for ignition timing and fuel injection timing. Built as a standard replacement with OE-style fit, form, and function, it is a direct choice for Volvo applications that require a 3-pin Hall sensor with a sealed connection.

For Volvo XC90, S80, S60, V70, XC70, and C70 applications, this sensor is calibrated with advanced diagnostic tools and uses corrosion-resistant terminals and coatings for durability. The 013122311 camshaft position sensor is a practical replacement when you need accurate engine position input and a secure electrical connection.

Key Features

• Engine camshaft position sensor for ignition and fuel injection timing input
• Hall sensor design with 3 pins and 1 rectangular male connector
• Includes seal; gasket material is rubber
• Standard replacement grade with OE specifications for fit, form, and function
• Corrosion-resistant terminals and coatings for added durability
• Black plastic sensor body with blade-style female terminals
• Part number 013122311

Detailed Description

HELLA 013122311 is an engine camshaft position sensor engineered to report camshaft position to the engine control system. That signal is used to coordinate ignition and fuel injection timing, helping the engine management system maintain proper operation. The sensor features a 19.50 mm body diameter, 12V electrical specification, one bolt hole, and a 7.20 mm mounting hole diameter. It is supplied with a seal and uses a 20.20 mm outside seal diameter for a secure installation interface.

This part is listed for 2002-2011 Volvo coverage, including Fits 2003-2011 Volvo XC90, N/A; Fits 2002-2010 Volvo S80, N/A; Fits 2002-2009 Volvo S60, N/A; Fits 2002-2007 Volvo V70, N/A; Fits 2003-2007 Volvo XC70, N/A; and Fits 2002-2004 Volvo C70, N/A. The 013122311 camshaft position sensor is also a cross-reference for Bosch 17279 for the same application.

Common Issues This Part Can Address

• Hard starting caused by an inaccurate camshaft position signal
• Intermittent stalling related to sensor signal loss
• Check engine light concerns tied to camshaft position sensor faults
• Rough engine operation from incorrect ignition or injection timing input
• Driveability problems on Volvo XC90, S80, S60, V70, XC70, or C70 models with a failed sensor

Installation Notes and Tips

Verify the connector style, 3-pin layout, and seal configuration before installation. This sensor does not include mounting hardware or a wiring harness. Assy/disassy by qualified personnel is required, so installation should be performed by a trained technician following the vehicle service procedure.

Confirm the original sensor location and compare the old unit to HELLA 013122311 before fitting. Clean the mounting area, inspect the connector for corrosion, and ensure the seal seats properly to maintain a reliable electrical connection.

Quality Assurance

HELLA manufactures this camshaft position sensor to OE specifications and calibrates it using advanced diagnostic tools. Corrosion-resistant terminals and protective coatings support long-term durability in demanding engine bay conditions.
