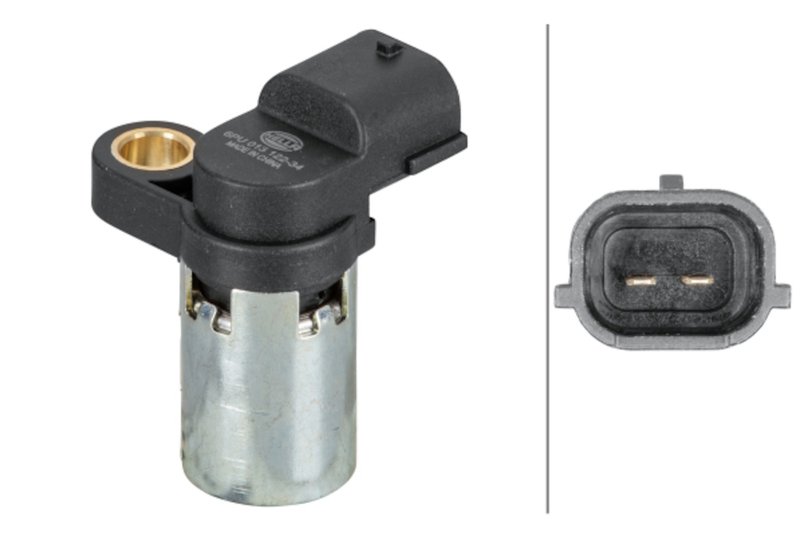

Hella 013122341 Engine Camshaft Position Sensor - Front

HELLA Camshaft Position Sensor for Subaru and Saab

The HELLA Engine Camshaft Position Sensor monitors camshaft position so the engine control system can manage ignition timing and fuel injection timing accurately. Built with corrosion-resistant terminals and protective coatings, this sensor is made for dependable operation in demanding underhood conditions.

Part number 013122341 is an OE-spec replacement for select Subaru Outback, Legacy, Forester, Impreza, and Saab 9-2X applications with a 2-pin connector.

Key Features

• Inductive camshaft position sensor
• 2-pole design for 2-pin connector applications
• Corrosion-resistant terminals and coatings
• Calibrated with advanced diagnostic tools
• Built to OE specifications for fit, form, and function

Detailed Description

HELLA 013122341 is an engine camshaft position sensor that reports camshaft position to the vehicle’s engine management system. That signal helps the ECU coordinate ignition and fuel injection timing, which is critical for smooth running and proper engine control. This sensor is a direct-fit style replacement for vehicles including 2010-2014 Subaru Outback, 2009-2013 Subaru Legacy, 2005-2008 Subaru Forester, 2005-2006 Saab 9-2X, and 2000-2005 Subaru Impreza, all in front-position applications listed with a 2-pin connector.

This part cross-references Standard Ignition PC190 and Delphi SS10037 for the same application. The HELLA camshaft position sensor is calibrated for OE-level fitment and signal performance, making it a practical choice when replacing a worn or failed sensor on Subaru and Saab platforms.

Common Problems This Sensor Can Help Resolve

• Hard starting or extended crank time
• Rough idle or intermittent stalling
• Check engine light related to camshaft position signal faults
• Misfire or timing-related drivability concerns
• Loss of accurate ignition and fuel injection timing input

Installation Notes and Tips

Verify the connector style, sensor position, and engine application before installation. This sensor is listed for front-position use on the covered Subaru models and for the Saab 9-2X application shown. Inspect the harness connector and surrounding wiring for corrosion or damage before replacing the sensor, since signal issues can also originate in the circuit.

Quality Assurance

HELLA manufactures this camshaft position sensor to OE specifications and uses corrosion-resistant materials to support long-term durability. The part is calibrated with advanced diagnostic tools to help maintain accurate signal output for engine management systems.
