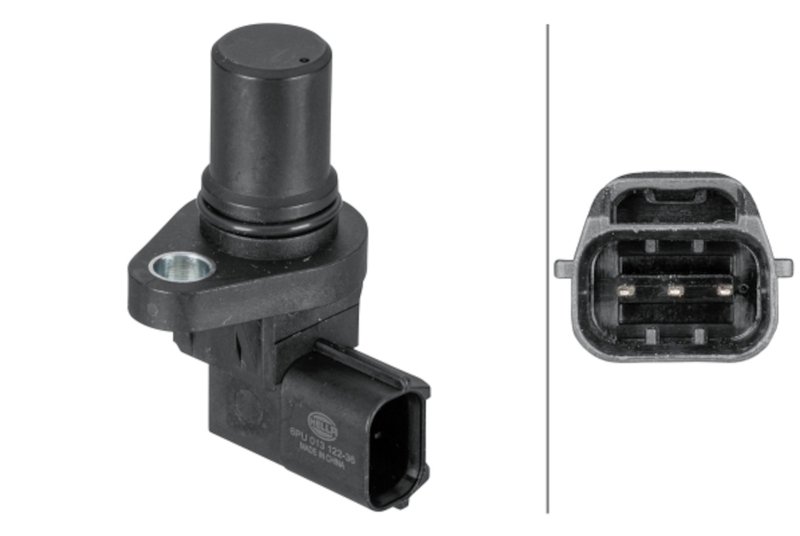

Hella 013122361 Engine Camshaft Position Sensor
HELLA Camshaft Position Sensor for Subaru
The HELLA Engine Camshaft Position Sensor monitors camshaft position and sends the data needed for ignition timing and fuel injection timing. Built with corrosion-resistant terminals and coatings, this sensor is made for dependable signal delivery in demanding engine environments.
Compatible With 2005-2006 Subaru Outback, 2008-2009 Subaru Tribeca, and 2009 Subaru Legacy applications, this HELLA 013122361 camshaft position sensor is calibrated with advanced diagnostic tools and built to OE specifications for fit, form, and function.
Key Features
- Part number: 013122361
- 3-pole Hall sensor design
- Includes seal ring
- Corrosion-resistant terminals and protective coatings
- OE-spec fit, form, and function
- Calibrated using advanced diagnostic tools
How This Sensor Works
The camshaft position sensor helps the engine control system determine camshaft position so the ECU can manage ignition and fuel injection timing accurately. On Subaru Legacy, Subaru Tribeca, and Subaru Outback applications, a stable camshaft signal is important for consistent engine operation, proper timing control, and reliable starting behavior. HELLA 013122361 is built as a direct replacement sensor for the listed vehicles.
This part cross-references Bosch 17255 and Standard Ignition PC303 for the same application.
Common Issues This Part May Address
- Check engine light related to camshaft position signal faults
- Hard starting or extended crank time
- Rough idle or inconsistent engine timing
- Stalling caused by incorrect camshaft signal input
- Fuel injection timing errors from a failing sensor
Installation Notes and Tips
Verify connector style, 3-pole configuration, and seal ring placement before installation. Inspect the harness connector for corrosion or damaged terminals, and confirm the mounting surface is clean so the sensor seats correctly. After installation, clear diagnostic trouble codes and confirm proper engine operation.
Quality Assurance
HELLA builds this camshaft position sensor to OE specifications and calibrates it with advanced diagnostic tools for consistent signal performance and proper vehicle integration.
| Brand | Hella |
| Part Number | 013122361 |
| Position | Hella |
| Number of Poles | 3 |
| Sensor Type | Hall sensor |
| Supplementary Article/Info 2 | With seal ring |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Subaru | Legacy | 3.0 R | 3.0L | H6 | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Supplementary Article/Info 2: with seal ring; Hella |
| 2009 | Subaru | Tribeca | Limited | 3.6L | H6 | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Supplementary Article/Info 2: with seal ring; Hella |
| 2008 | Subaru | Tribeca | Limited | 3.6L | H6 | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Supplementary Article/Info 2: with seal ring; Hella |
| 2006 | Subaru | Outback | R | 3.0L | H6 | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Supplementary Article/Info 2: with seal ring; Hella |
| 2005 | Subaru | Outback | R | 3.0L | H6 | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Supplementary Article/Info 2: with seal ring; Hella |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
