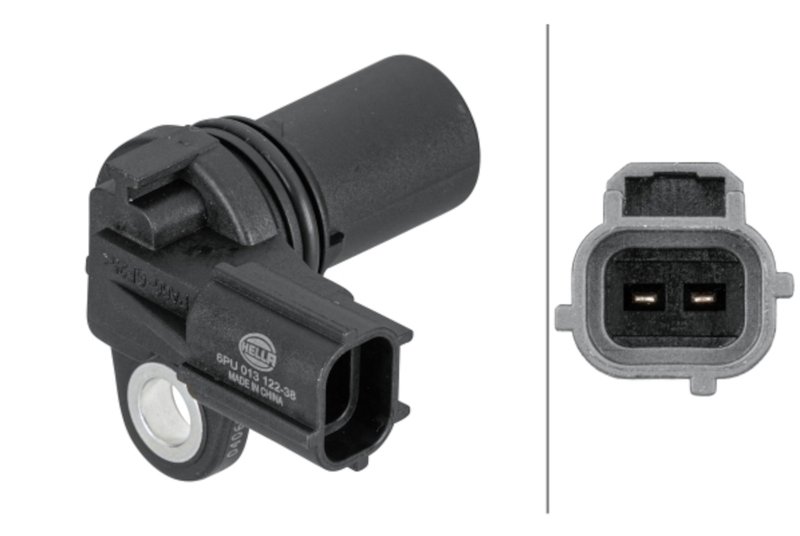

Hella 013122381 Engine Camshaft Position Sensor

Camshaft Position Sensor for Ford, Mazda, and Mercury

The Hella Engine Camshaft Position Sensor, part number 013122381, provides camshaft position data used for ignition timing and fuel injection timing. It is built with corrosion-resistant terminals and protective coatings for durability, and it is calibrated to OE specifications for fit, form, and function.

Compatible With 2001-2011 Ford Ranger, 2003-2007 Ford Focus, 2005-2008 Ford Escape, 2001-2009 Mazda B2300, 2003-2005 Mazda 6, 2004-2005 Mazda 3, 2006-2007 Mazda 5, 2005-2006 Mazda Tribute, 2008 Mazda Tribute, and 2005-2008 Mercury Mariner.

Key Features

• Engine camshaft position sensor for ignition and fuel injection timing input
• 2-pole inductive sensor design
• Includes seal ring
• Corrosion-resistant terminals and coatings
• OE-spec fit, form, and function
• Calibrated with advanced diagnostic tools
• Part number 013122381 for direct identification

Detailed Description

Hella 013122381 is an OE-style camshaft position sensor that reports camshaft position to the engine control system so timing calculations stay accurate. This sensor is used on select Ford Ranger, Ford Focus, Ford Escape, Mazda B2300, Mazda 3, Mazda 5, Mazda 6, Mazda Tribute, and Mercury Mariner applications, making it a direct-match service part for common drivability and timing-related repairs. This part cross-references Standard Ignition PC430 for the same application.

The inductive sensor design uses a 2-pole connection and includes a seal ring for proper sealing at the mounting point. Hella calibrates the sensor using diagnostic tools to help maintain OE-level signal output and consistent operation.

Common Repair Symptoms

• Hard starting or extended crank time
• Rough idle or intermittent stalling
• Check engine light with camshaft position sensor fault codes
• Incorrect ignition timing or fuel injection timing signals
• Engine hesitation during acceleration

Installation Notes and Tips

Verify the connector style, pole count, and engine application before installation. Inspect the mounting surface and seal area for contamination or damage, and confirm the sensor seats fully with the seal ring in place. Clear diagnostic trouble codes after installation and verify proper engine operation with a scan tool.

Quality Assurance

Hella manufactures this camshaft position sensor to meet OE specifications for fit, form, and function. Corrosion-resistant materials and diagnostic calibration support consistent service performance in the listed Ford, Mazda, and Mercury applications.
