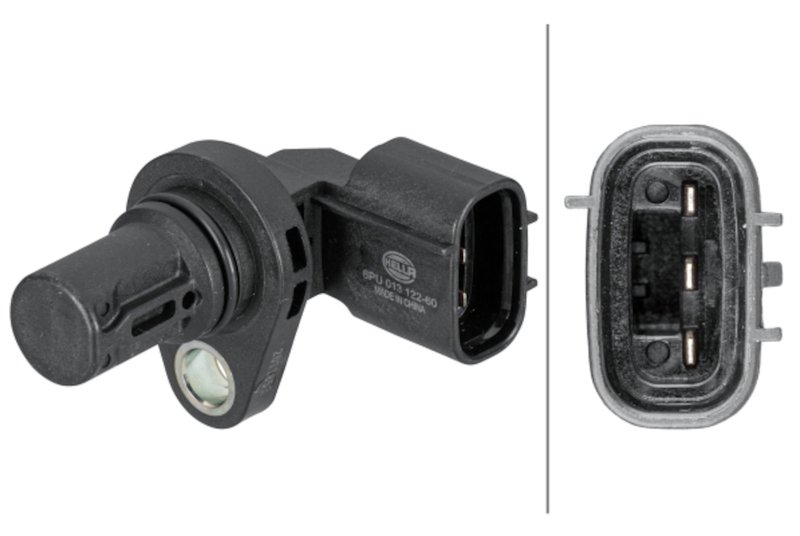

Hella 013122601 Engine Crankshaft Position Sensor

Engine Crankshaft Position Sensor for Suzuki

The Hella 013122601 engine crankshaft position sensor provides crankshaft speed and position data to the engine control system. Built with a 3-pin Hall sensor design and a seal ring, it supports accurate signal input for Suzuki Grand Vitara and Suzuki SX4 applications.

Key Features

• 3-pole sensor design for direct engine signal monitoring
• Hall sensor construction for crankshaft speed and position detection
• Includes seal ring for a proper sealing interface
• Engineered for resistance to temperature shock
• Tested for durability against vibration, temperature changes, and engine fluids

Detailed Product Information

Hella 013122601 is an engine crankshaft position sensor used by the engine management system to track crankshaft rotation and timing reference. That information helps the ECU manage ignition and fuel delivery with the correct timing. This sensor is a direct-fit style replacement for select Suzuki Grand Vitara and Suzuki SX4 models, including Fits 2006-2007 Suzuki Grand Vitara, N/A; Fits 2008-2013 Suzuki Grand Vitara, N/A; Fits 2007-2009 Suzuki SX4, N/A; Fits 2010-2011 Suzuki SX4, N/A; and Fits 2012-2013 Suzuki SX4, N/A.

This part cross-references Dayco 87662 and Dorman - HELP 81089 for the same application. The Hella brand line is known for OE-focused electrical and sensor components, and this crankshaft position sensor follows that approach with a Hall-effect design and sealing support for engine bay conditions.

Common Issues This Sensor Can Address

• Crankshaft speed or position signal loss
• Hard starting caused by incorrect engine timing input
• Intermittent stalling related to sensor signal drift
• Check engine light concerns tied to crankshaft sensor faults
• Driveability problems from unstable ECU reference data

Installation Notes and Tips

Verify connector style, pole count, and engine application before installation. This sensor uses a 3-pin Hall sensor configuration and includes a seal ring, so the mounting surface should be clean and free of debris before fitting. Confirm the vehicle match against the listed Suzuki Grand Vitara and Suzuki SX4 year ranges, and inspect the wiring harness and connector for damage during replacement.

Quality Assurance

Hella tests this sensor for durability under temperature variation, vibration, and exposure to engine fluids. The robust construction is intended to maintain signal stability and reduce drift in demanding underhood conditions.
