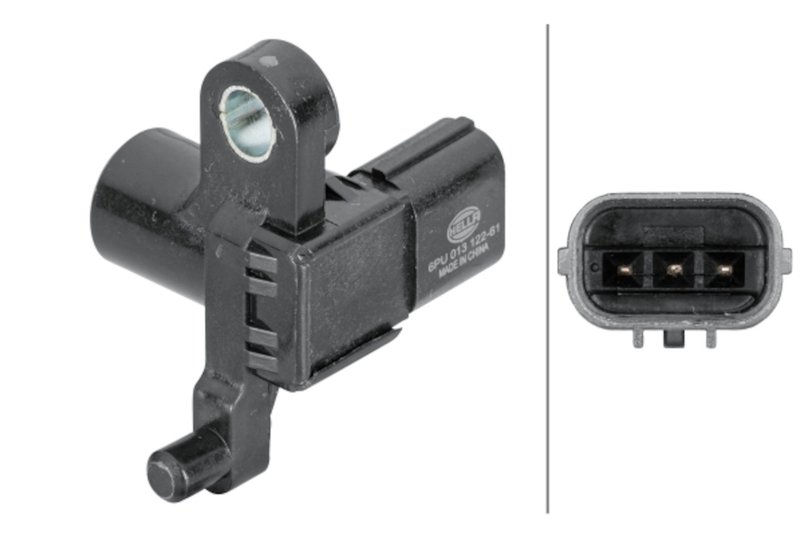

Hella 013122611 Engine Camshaft Position Sensor
| Brand | Hella 013122611 |
|---|---|
| Number of Poles | 3 |
| Sensor Type | Hall sensor |
| Product line | Hella |
| Fits | Honda · 37 vehicles |
OE-spec fit, form, function. Calibrated with advanced diagnostic tools for accurate timing data.
Corrosion-resistant terminals. Coatings help the sensor stand up to harsh conditions.
Hall sensor design. Provides camshaft position data for ignition and fuel injection timing.
Cross-references ACI 81385, Beck/Arnley 180-0531 and Carlson 19102 for the same application. See all 63.
Hella Camshaft Position Sensor for Civic
The Hella 013122611 engine camshaft position sensor provides camshaft position data used for ignition timing and fuel injection timing control. Built with a 3-pole Hall sensor design, it is a direct-fit OE-style replacement for select Honda Civic applications.
For 2001-2005 Honda Civic models, this sensor supports accurate engine position input and consistent signal delivery. The Hella line focuses on OE specifications for fit, form, and function, with corrosion-resistant terminals and protective coatings for added durability.
Key Features
- Part number: 013122611
- Engine camshaft position sensor for ignition and fuel injection timing input
- 3-pole Hall sensor design
- Corrosion-resistant terminals and coatings
- OE-spec fit, form, and function
- Calibrated with advanced diagnostic tools
Product Details
The Hella Brand Line is built around OE-style electrical components that match factory requirements for signal accuracy and connector fit. This camshaft position sensor is engineered for select Honda Civic vehicles and is a direct replacement for applications that require a 3-pin Hall-effect cam sensor. This part cross-references Standard Ignition PC618 for the same application.
Fits 2001-2005 Honda Civic, N/A. Fits 2001-2005 Honda Civic, N/A. The Hella 013122611 is a practical choice when the original camshaft sensor is no longer delivering a stable signal to the engine control system.
Common Issues This Part Can Address
- Camshaft position signal loss
- Hard starting or extended crank time
- Rough idle caused by incorrect timing input
- Check engine light related to camshaft sensor faults
- Fuel injection timing irregularities
Installation Notes and Tips
Verify connector style, pole count, and engine application before installation. Confirm the sensor mounting location and inspect the harness connector for corrosion or damaged terminals. Clear diagnostic trouble codes after installation and verify proper engine operation with a scan tool.
Quality Assurance
Hella manufactures this sensor to OE specifications and calibrates it using advanced diagnostic tools for consistent performance and proper signal output.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2005 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | EX Special Edition | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | Value Package | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | LX Special Edition | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | Value Package | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | LX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | LX Special Edition | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | HX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | GX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | EX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | EX Special Edition | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2005 | Honda | Civic | DX | — | — | — | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | Value Package | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2004 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2003 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2002 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | GX | 1.7L | L4 | CNG | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | HX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | EX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | LX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
| 2001 | Honda | Civic | DX | 1.7L | L4 | GAS | N/A | Number of Poles: 3; Sensor Type: Hall Sensor; Hella |
