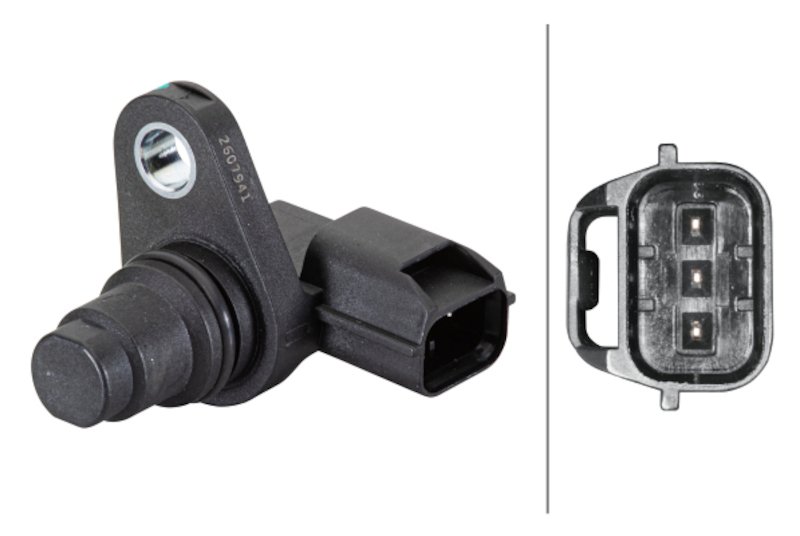

Hella 013122711 Engine Camshaft Position Sensor
| Brand | Hella 013122711 |
|---|---|
| 10795 | 24.00 |
| 10796 | Plastic |
| Voltage | 12.00 |
| Color | Black |
| Bolt Hole Quantity | 1 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Terminal Gender | Female |
| Wiring Harness Included | No |
| Mounting Hole Diameter | 7.00 |
| Gasket Or Seal Material | Rubber |
| Mounting Bracket Included | No |
| Seal Outside Diameter | 18.80 |
| Assy/Disassy by Qualified Personnel Required! | . |
| Number of pins | 3 |
| Sensor Body Diameter [mm] | 17.80 |
| Sensor Type | Hall sensor |
| Supplementary Article/Supplementary Info 2 | With seal ring |
| Fits | Smart · 8 vehicles |
OE-spec replacement. Matches fit, form, and function for straightforward installation.
Corrosion-resistant terminals. Coatings add durability in demanding conditions.
Hall sensor design. Provides camshaft position data for ignition and fuel injection timing.
Cross-references Beck/Arnley 180-0777, Carlson 17423 and Walker Products 235-2115 for the same application. See all 21.
HELLA Camshaft Position Sensor for Smart Fortwo
The HELLA Engine Camshaft Position Sensor monitors camshaft position and sends the data needed for ignition timing and fuel injection timing. Built as a standard replacement for the Smart Fortwo, part number 013122711 uses a Hall sensor design with a 3-pin connector and seal ring for a direct-fit service replacement.
Key Features
- Engine camshaft position sensor for ignition and fuel injection timing control
- Hall sensor design with 3 terminals and 1 connector
- Rectangular male connector with 3-pin layout
- Includes gasket/seal ring with rubber seal material
- Black plastic sensor body with corrosion-resistant terminals and coatings
- OE-spec fit, form, and function for service replacement use
- Part number 013122711
Detailed Description
HELLA 013122711 is an engine camshaft position sensor engineered for the 2008-2015 Smart Fortwo. It measures camshaft position so the engine control system can coordinate ignition and fuel injection timing accurately. The sensor is calibrated with diagnostic tools and built to meet OE specifications for fit, form, and function, making it a practical replacement for a failed camshaft position sensor on the Smart Fortwo. This part cross-references Beck/Arnley 180-0777 for the same application.
Common Issues This Part Can Solve
- Check engine light related to camshaft position sensor faults
- Hard starting or extended crank conditions
- Rough idle or inconsistent engine operation
- Incorrect ignition timing or fuel injection timing signals
- Stalling or intermittent engine performance concerns
Installation Notes and Tips
Fits 2008-2015 Smart Fortwo, N/A, with 3-pin connector and seal ring. Verify the connector shape, terminal count, and seal style before installation. The sensor uses a 1-bolt mounting design with a 7.00 mm mounting hole diameter and does not include mounting hardware or a wiring harness. Assy/disassy by qualified personnel required.
Quality Assurance
HELLA builds this camshaft position sensor to OE specifications and uses corrosion-resistant terminals and protective coatings for durability. The part is calibrated with advanced diagnostic tools to support accurate signal output and consistent service replacement performance.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Smart | Fortwo | Pure | N/A | 3-Pin Connector - with Seal Ring |
| 2014 | Smart | Fortwo | Pure | N/A | 3-Pin Connector - with Seal Ring |
| 2013 | Smart | Fortwo | Pure | N/A | 3-Pin Connector - with Seal Ring |
| 2012 | Smart | Fortwo | Pure | N/A | 3-Pin Connector - with Seal Ring |
| 2011 | Smart | Fortwo | Pure | N/A | 3-Pin Connector - with Seal Ring |
| 2010 | Smart | Fortwo | Pure | N/A | 3-Pin Connector - with Seal Ring |
| 2009 | Smart | Fortwo | Pure | N/A | 3-Pin Connector - with Seal Ring |
| 2008 | Smart | Fortwo | Pure | N/A | 3-Pin Connector - with Seal Ring |
