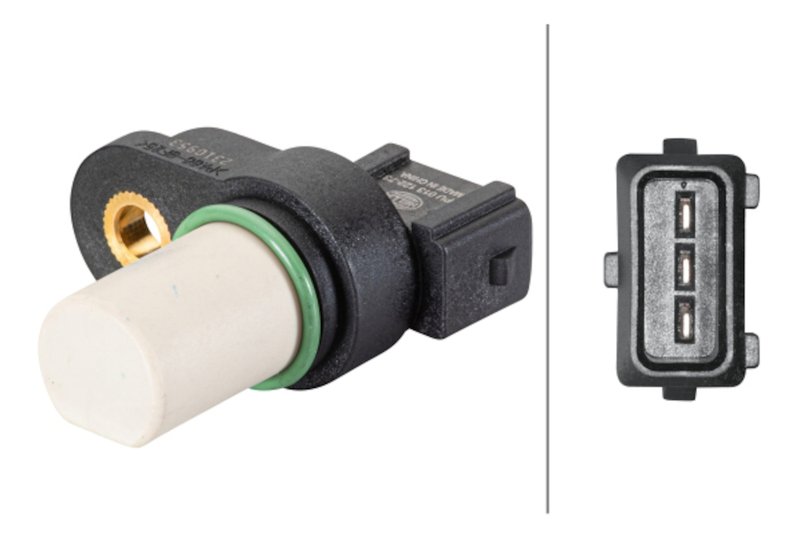

Hella 013122731 Engine Camshaft Position Sensor

Hella Camshaft Position Sensor 013122731

The Hella 013122731 engine camshaft position sensor provides camshaft position data for ignition timing and fuel injection timing control. Built as a standard replacement part, it uses a Hall sensor design with a 3-pin rectangular connector and a seal ring for a secure OE-style installation.

Key Features

• Hall sensor design for camshaft position signal input
• 3-pin male connector with rectangular shape
• Includes gasket/seal ring; rubber seal material
• Plastic sensor body with corrosion-resistant terminals and coatings
• 12V electrical specification
• Standard replacement grade for OE-style fit, form, and function
• Black / white housing color

Detailed Description

Hella 013122731 is an engine camshaft position sensor engineered to report camshaft position to the engine control system so ignition and fuel injection timing can be managed accurately. The sensor is calibrated with diagnostic tools and built to meet OE specifications for fit, form, and function. For Hyundai Accent applications, this part is listed for 2000-2005 Hyundai Accent TDC Sensor service and 2006 Hyundai Accent with a 3-pin connector and seal ring. This makes it a direct-fit choice for Hyundai Accent camshaft position sensor replacement needs, including Hella 013122731 service applications.

This part cross-references Standard Ignition PC629 and Delphi SS11302 for the same application.

What It Helps Address

• Hard starting caused by an inaccurate camshaft position signal
• Rough idle related to timing signal loss
• Check engine light conditions tied to camshaft sensor faults
• Fuel injection timing errors from a failing Hall sensor
• Ignition timing irregularities on Hyundai Accent camshaft sensor applications

Installation Notes and Tips

Verify the connector style, pin count, and seal ring configuration before installation. This sensor uses one bolt hole, a 3-pin female terminal layout, and no wiring harness or mounting hardware is included. Assy/disassy by qualified personnel is required. Confirm the vehicle application against the listed fitment for 2000-2005 Hyundai Accent TDC Sensor and 2006 Hyundai Accent 3-pin connector service before replacement.

Quality Assurance

Hella manufactures this camshaft position sensor to OE specifications and calibrates it using advanced diagnostic tools. Corrosion-resistant terminals and protective coatings are used to support durability in engine bay conditions.
