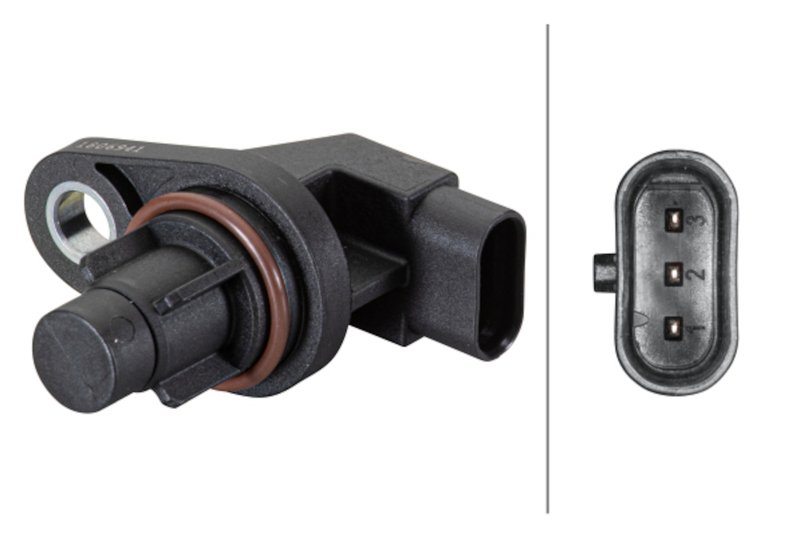

Hella 013122741 Engine Camshaft Position Sensor
| Brand | Hella 013122741 |
|---|---|
| 10795 | 24.00 |
| 10796 | Plastic |
| Voltage | 12.00 |
| Color | Black |
| Bolt Hole Quantity | 1 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Terminal Gender | Female |
| Wiring Harness Included | No |
| Mounting Hole Diameter | 6.80 |
| Gasket Or Seal Material | Rubber |
| Mounting Bracket Included | No |
| Seal Outside Diameter | 21.30 |
| Assy/Disassy by Qualified Personnel Required! | . |
| Number of pins | 3 |
| Sensor Body Diameter [mm] | 20.50 |
| Sensor Type | Hall sensor |
| Supplementary Article/Supplementary Info 2 | With seal ring |
| Fits | Mercedes-Benz · 26 vehicles |
OE-spec fit, form, and function. Standard replacement sensor calibrated for accurate timing data.
Corrosion-resistant terminals. Coatings help protect the sensor for lasting durability.
Hall sensor design. Provides camshaft position data for ignition and fuel injection timing.
Cross-references ACI 87806, Carlson 17298 and Dorman - HELP 81562 for the same application. See all 33.
Hella Camshaft Position Sensor for Mercedes-Benz
The Hella 013122741 engine camshaft position sensor provides camshaft position data used for ignition timing and fuel injection timing control. Built as a standard replacement with OE-spec fit, form, and function, it is a direct-fit choice for select Mercedes-Benz diesel applications, including Sprinter 2500, Sprinter 3500, Sprinter 3500XD, GLE300d, E250, GLK250, and ML250.
- Hall sensor design for accurate camshaft position signal output
- 3-pin rectangular male connector with 3 terminals
- Includes seal ring / gasket for the sensor mounting point
- Plastic sensor body with black finish
- Corrosion-resistant terminals and coatings for added durability
- 12V electrical specification
- Standard replacement grade for OE-style service
Detailed Product Overview
The Hella 013122741 camshaft position sensor is calibrated with advanced diagnostic tools and built to meet OE specifications for fit, form, and function. It uses a Hall sensor design and a 3-pin blade terminal layout to deliver the signal the engine control system needs for precise timing decisions. This part number 013122741 is a practical replacement for Mercedes-Benz diesel models where a reliable camshaft signal is critical to smooth operation.
Compatible With Mercedes-Benz Sprinter 2500, Mercedes-Benz Sprinter 3500, Mercedes-Benz Sprinter 3500XD, Mercedes-Benz GLE300d, Mercedes-Benz E250, Mercedes-Benz GLK250, and Mercedes-Benz ML250. This part cross-references Dorman - HELP 81562 for the same application.
Common Issues This Sensor Can Address
- Check engine light related to camshaft position signal faults
- Hard starting or extended crank conditions
- Rough idle or inconsistent engine timing behavior
- Intermittent stalling caused by incorrect camshaft data
- Fuel injection timing errors tied to a failing sensor
Installation Notes and Tips
Verify connector style, seal ring fitment, and sensor body dimensions before installation. This sensor uses a 3-pin connector, one bolt hole, and includes a rubber gasket/seal ring; mounting hardware is not included. Assy/disassy by qualified personnel is required. Confirm application details for your Mercedes-Benz Sprinter 2500, Sprinter 3500, or E250 before replacement to ensure the correct OE-style match.
Quality Assurance
Hella manufactures this sensor to OE specifications and uses corrosion-resistant terminals and coatings to support long-term service in demanding engine environments. The part number 013122741 is calibrated for consistent signal performance and direct replacement use on listed Mercedes-Benz applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Mercedes-Benz | Sprinter 2500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2022 | Mercedes-Benz | Sprinter 3500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2022 | Mercedes-Benz | Sprinter 3500XD | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2021 | Mercedes-Benz | Sprinter 2500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2021 | Mercedes-Benz | Sprinter 3500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2021 | Mercedes-Benz | Sprinter 3500XD | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2020 | Mercedes-Benz | Sprinter 2500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2020 | Mercedes-Benz | Sprinter 3500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2020 | Mercedes-Benz | Sprinter 3500XD | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2017 | Mercedes-Benz | GLE300d | 4Matic | — | — | N/A | 3-Pin Connector - with Seal Ring |
| 2017 | Mercedes-Benz | Sprinter 2500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2017 | Mercedes-Benz | Sprinter 3500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2016 | Mercedes-Benz | E250 | Bluetec | — | — | N/A | 3-Pin Connector - with Seal Ring |
| 2016 | Mercedes-Benz | GLE300d | 4Matic | — | — | N/A | 3-Pin Connector - with Seal Ring |
| 2016 | Mercedes-Benz | Sprinter 2500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2016 | Mercedes-Benz | Sprinter 3500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2015 | Mercedes-Benz | E250 | Bluetec | — | — | N/A | 3-Pin Connector - with Seal Ring |
| 2015 | Mercedes-Benz | GLK250 | Bluetec 4Matic | — | — | N/A | 3-Pin Connector - with Seal Ring |
| 2015 | Mercedes-Benz | ML250 | Bluetec 4Matic | — | — | N/A | 3-Pin Connector - with Seal Ring |
| 2015 | Mercedes-Benz | Sprinter 2500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2015 | Mercedes-Benz | Sprinter 3500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2014 | Mercedes-Benz | E250 | Bluetec | — | — | N/A | 3-Pin Connector - with Seal Ring |
| 2014 | Mercedes-Benz | GLK250 | Bluetec 4Matic | — | — | N/A | 3-Pin Connector - with Seal Ring |
| 2014 | Mercedes-Benz | Sprinter 2500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2014 | Mercedes-Benz | Sprinter 3500 | Base | 2.1L | L4 | N/A | 3-Pin Connector - with Seal Ring |
| 2013 | Mercedes-Benz | GLK250 | Bluetec 4Matic | — | — | N/A | 3-Pin Connector - with Seal Ring |
