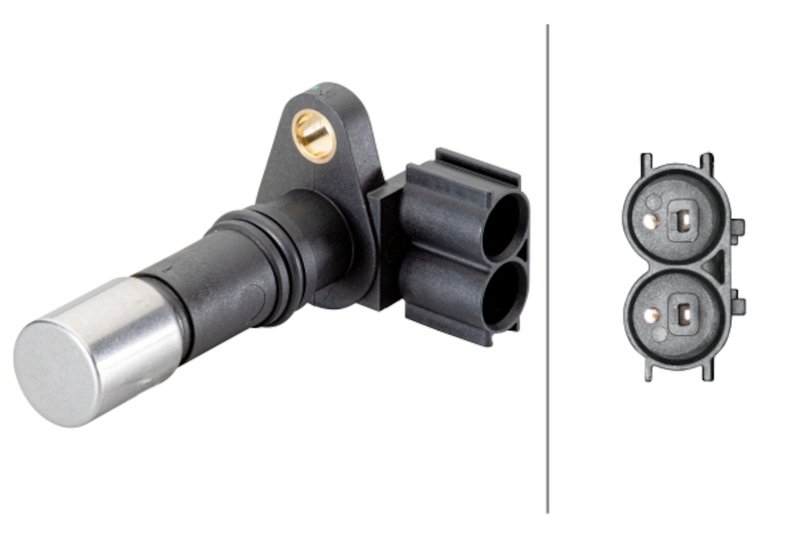

Hella 013122811 Engine Crankshaft Position Sensor

HELLA Crankshaft Position Sensor for Toyota and Lexus

The HELLA Engine Crankshaft Position Sensor monitors crankshaft speed and position so the engine control system can manage timing and fuel delivery accurately. Part number 013122811 is a standard replacement sensor built with a metal and plastic housing, a 2-pin round connector, and an included O-ring seal for a secure installation.

• Inductive crankshaft position sensor for engine speed and position input
• Standard replacement design for Toyota and Lexus applications
• 2-pin male connector with blade terminals and round connector shape
• Black sensor body with metallic/plastic construction
• Includes gasket/seal and seal ring for the mounting interface
• 12V electrical specification
• Single mounting hole design

Fitment Coverage

• Fits 2003-2024 Toyota 4Runner, N/A, 2-Pin Connector - with Seal Ring
• Fits 2007-2018 Lexus ES350, N/A, 2-Pin Connector - with Seal Ring
• Fits 2013-2018 Lexus GS450h, N/A, 2-Pin Connector - with Seal Ring
• Fits 2007-2011 Lexus GS450h, N/A, 2-Pin Connector - with Seal Ring
• Fits 2005-2018 Toyota Avalon, N/A, 2-Pin Connector - with Seal Ring
• Fits 2016-2017 Lexus IS300, N/A, 2-Pin Connector - with Seal Ring
• Fits 2006-2017 Lexus IS350, N/A, 2-Pin Connector - with Seal Ring
• Fits 2016-2017 Lexus RC300, N/A, 2-Pin Connector - with Seal Ring
• Fits 2015-2017 Lexus RC350, N/A, 2-Pin Connector - with Seal Ring
• Fits 2007-2017 Toyota Camry, N/A, 2-Pin Connector - with Seal Ring
• Fits 2008-2016 Toyota Highlander, N/A, 2-Pin Connector - with Seal Ring
• Fits 2007-2016 Toyota Sienna, N/A, 2-Pin Connector - with Seal Ring
• Fits 2013-2015 Lexus GS350, N/A, 2-Pin Connector - with Seal Ring
• Fits 2007-2011 Lexus GS350, N/A, 2-Pin Connector - with Seal Ring
• Fits 2006-2015 Lexus IS250, N/A, 2-Pin Connector - with Seal Ring
• Fits 2007-2015 Lexus RX350, N/A, 2-Pin Connector - with Seal Ring
• Fits 2010-2015 Lexus RX450h, N/A, 2-Pin Connector - with Seal Ring
• Fits 2005-2015 Toyota Tacoma, N/A, 2-Pin Connector - with Seal Ring
• Fits 2009-2015 Toyota Venza, N/A, 2-Pin Connector - with Seal Ring
• Fits 2007-2014 Toyota FJ Cruiser, N/A, 2-Pin Connector - with Seal Ring
• Fits 2005-2014 Toyota Tundra, N/A, 2-Pin Connector - with Seal Ring
• Fits 2006-2012 Toyota RAV4, N/A, 2-Pin Connector - with Seal Ring
• Fits 2006 Lexus GS300, N/A, 2-Pin Connector - with Seal Ring

What This Sensor Helps Resolve

• Crankshaft speed or position signal loss
• Hard starting or extended crank conditions
• Intermittent stalling or rough engine operation
• Check engine light concerns tied to crankshaft sensor faults
• Timing and engine synchronization issues in Toyota and Lexus vehicles

Installation Notes

Verify the 2-pin connector, round connector shape, and seal-ring style before installation. This HELLA 013122811 sensor uses a single mounting hole and does not include a wiring harness or mounting bracket. Because the application list includes Toyota Camry, Toyota Tacoma, Lexus RX350, and other Toyota/Lexus models, confirm the exact engine and connector match against the original sensor before replacement.

Quality Assurance

HELLA builds this crankshaft position sensor for resistance to temperature shock, vibration, and engine-fluid exposure, with reduced signal drift for stable engine control input. The sensor is tested for durability under changing operating conditions and is a direct-fit standard replacement for the listed applications. This part cross-references Standard Ignition PC564 and DENSO Auto Parts 196-1116 for the same application.
