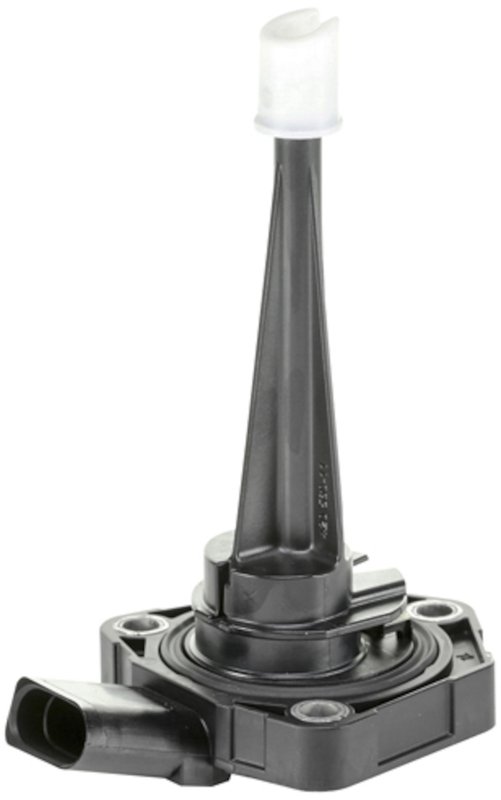

Hella 013680101 Engine Oil Level Sensor
| Brand | Hella 013680101 |
|---|---|
| Number of Poles | 3 |
| Supplementary Article/Supplementary Info | with seal |
| Product line | Hella |
| Fits | Volkswagen and Audi · 22 vehicles |
Ultrasonic sensing. Measures oil level with packaged sensor technology.
Sealed design. Includes a seal for added protection at installation.
Engine oil sensor. Monitors oil level for reliable engine management.
Cross-references Dayco 72224, Facet 7.0238 and 03L 907 660 B for the same application. See all 14.
Hella Engine Oil Level Sensor for Audi and Volkswagen
The Hella 013680101 engine oil level sensor monitors oil level data for vehicles that rely on an ultrasonic-style level sensing system. Built with 3 poles and supplied with a seal, it is a direct-fit service part for select Audi A8 Quattro and Volkswagen Touareg applications.
Key Features
- Engine oil level sensor for accurate oil level monitoring
- 3-pole electrical connection
- Includes seal for proper sealing at the mounting point
- Hella electronics OE competence backed by decades of OE experience
- Cross-reference part numbers include Dayco 72224 and Facet 7.0238
Product Details
Hella 013680101 is a packaged ultrasonic level sensor used in engine oil level monitoring systems. This sensor is specified with 3 poles and includes a seal, making it a practical replacement for vehicles that require a sealed oil level sensing unit. It fits 2014-2017 Volkswagen Touareg and 2012-2014 Audi A8 Quattro applications listed in the fitment data. The Hella 013680101 is also referenced by OE-style interchange numbers including 03L 907 660 B and 03L 907 660 C.
Common Issues This Part Addresses
- Oil level warning messages caused by a failing sensor
- Inaccurate oil level readings on the instrument cluster
- Electrical faults related to the oil level sensing circuit
- Seal leakage at the sensor mounting location
- Intermittent sensor signal loss in the oil monitoring system
Installation Notes and Tips
Verify connector style, pole count, and OE reference before installation. Clean the mounting area thoroughly and inspect the sealing surface before fitting the included seal. Confirm the application against the vehicle’s engine code and existing sensor part number to ensure the Hella 013680101 matches the original configuration.
Quality Assurance
Hella is recognized for OE electronics competence and long-standing original-equipment experience. This part is built to meet the requirements of the listed Audi A8 Quattro and Volkswagen Touareg fitments.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Volkswagen | Touareg | V6 Wolfsburg | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2017 | Volkswagen | Touareg | V6 Sport | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2017 | Volkswagen | Touareg | V6 Executive | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2017 | Volkswagen | Touareg | — | 3.6L | V6 | N/A | Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2016 | Volkswagen | Touareg | V6 Sport | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2016 | Volkswagen | Touareg | V6 Lux | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2016 | Volkswagen | Touareg | V6 Executive | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2016 | Volkswagen | Touareg | — | 3.6L | V6 | N/A | Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2015 | Volkswagen | Touareg | V6 Sport | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2015 | Volkswagen | Touareg | V6 R-Line | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2015 | Volkswagen | Touareg | V6 Lux | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2015 | Volkswagen | Touareg | V6 Executive | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2015 | Volkswagen | Touareg | — | 3.6L | V6 | N/A | Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2014 | Audi | A8 Quattro | L W12 | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2014 | Audi | A8 Quattro | L W12 | 6.3L | W12 | N/A | Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2014 | Volkswagen | Touareg | V6 Sport | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2014 | Volkswagen | Touareg | V6 R-Line | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2014 | Volkswagen | Touareg | V6 Lux | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2014 | Volkswagen | Touareg | V6 Executive | — | — | N/A | Incl.Seal; Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2014 | Volkswagen | Touareg | — | 3.6L | V6 | N/A | Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2013 | Audi | A8 Quattro | L W12 | 6.3L | W12 | N/A | Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
| 2012 | Audi | A8 Quattro | L W12 | 6.3L | W12 | N/A | Supplementary Article/Supplementary Info: with seal; Number of Poles: 3; *** HELLA Electronics OE competence for over 60 years.; Hella |
