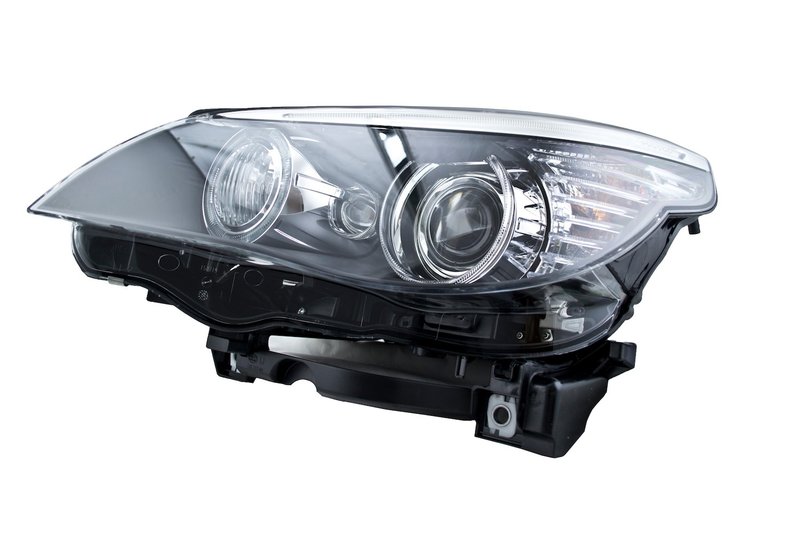

Hella 169009151 Headlight Assembly - Left

Overview of Hella Headlight Assembly for BMW Models

The Hella 169009151 headlight assembly is designed specifically for select BMW vehicles, including the 528i, 528xi, 535i, 535xi, 550i, and M5 models. This left-side headlight features halogen bulb technology and includes bulbs for immediate installation, ensuring compatibility and reliable lighting performance.

• Includes bulbs: H3, H8, and PY21W types
• Halogen bulb technology for consistent illumination
• Left-side fitting position for right-hand traffic
• Bi-xenon light design with integrated cornering light function
• Rated voltage of 12V for standard automotive electrical systems
• Inspection tag certified: E1 2307
• Paired article number: 1zs 169 009-161

Detailed Description of the Hella 169009151 Headlight Assembly

This headlight assembly from Hella is engineered to meet the lighting requirements of BMW 528i, 528xi, 535i, 535xi, 550i, and M5 models. Featuring a bi-xenon light design, it provides both low and high beam functions with enhanced visibility. The assembly includes halogen bulbs of types H3, H8, and PY21W, which are pre-installed to simplify replacement. The integrated cornering light function improves illumination during turns, enhancing safety in right-hand traffic environments. The left-hand fitting position ensures proper alignment and compliance with traffic regulations. The product carries an E1 2307 inspection tag, confirming adherence to European standards.

About the Hella Brand Line

Hella is a recognized brand line known for its focus on automotive lighting and electrical components. This headlight assembly is part of Hella's commitment to delivering reliable and precise lighting solutions tailored to specific vehicle models. The 169009151 part number reflects Hella's engineering standards and quality control processes, ensuring compatibility and performance for BMW vehicles.

Common Applications and Issues Addressed

• Replacement of damaged or malfunctioning left headlight assembly on BMW 528i, 528xi, 535i, 535xi, 550i, and M5
• Upgrading to a bi-xenon light design with cornering light for improved night driving visibility
• Resolving issues related to dim or flickering halogen bulbs
• Ensuring compliance with right-hand traffic lighting requirements
• Restoring proper headlight function after accident or wear

Installation Notes and Tips

When installing the Hella 169009151 headlight assembly, ensure the vehicle is powered off and the battery is disconnected to avoid electrical hazards. The assembly is designed for the left side of the vehicle and includes bulbs, so no additional bulb purchase is necessary. Proper alignment is critical to maintain compliance with right-hand traffic regulations and to optimize the cornering light function. Refer to the vehicle’s service manual for detailed installation procedures and torque specifications.

Quality Assurance and Warranty

Hella products undergo rigorous quality control and testing to meet automotive industry standards. The 169009151 headlight assembly includes an inspection tag (E1 2307) certifying compliance with European regulations. While specific warranty details are not provided here, Hella typically offers manufacturer warranties covering defects in materials and workmanship. Consult the product documentation or authorized sources for exact warranty terms.
