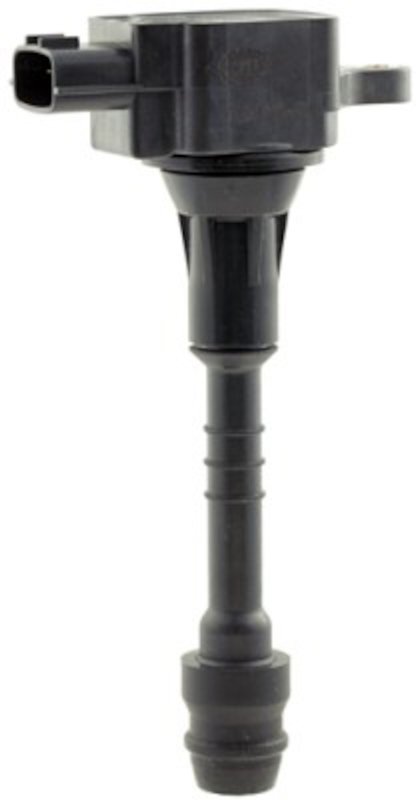

Hella 193175681 Direct Ignition Coil
| Brand | Hella 193175681 |
|---|---|
| Ignition Coil | Flush-fitting pencil ignition coils |
| Mounting Type | Bolted |
| Number of mounting bores | 1 |
| Number of Poles | 3 |
| Rated Voltage [V] | 12 |
| SVHC | 7439-92-1; lead |
| Fits | Nissan · 5 vehicles |
Direct ignition coil. Flush-fitting pencil design for a clean, compact installation.
Bolted mounting. Single-bore design secures the coil firmly in place.
12-volt, 3-pole ignition coil from Hella.
Cross-references Continental 49008, Continental 50078 and CSF 10487 for the same application. See all 65.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hella Direct Ignition Coil for Nissan Sentra
Hella Part Number 193175681 is a direct ignition coil built as a flush-fitting pencil ignition coil with a bolted mounting design. It uses a 3-pin connector and 12V rated voltage for the listed Nissan Sentra applications, including 2002 through 2006 models shown below.
Key Features
- Direct ignition coil for OE-style replacement service
- Flush-fitting pencil ignition coil design
- Bolted mounting type with 1 mounting bore
- 3-pole electrical connection
- 12V rated voltage
- Fits 2002 Nissan Sentra, N/A, from 04/2002
- Fits 2003-2004 Nissan Sentra, N/A, 12V - 3-Pin Connector - Flush-Fitting Pencil Ignition Coils - Bolted
- Fits 2005-2006 Nissan Sentra, N/A, Federal
Detailed Description
This Hella ignition coil, part number 193175681, is specified for Nissan Sentra applications that use a flush-fitting pencil coil layout and a 3-pin electrical connection. The bolted mounting style and single mounting bore support a secure installation on the listed vehicles. If you are replacing a failing ignition coil on a Nissan Sentra, this part number 193175681 matches the fitment details provided for 2002, 2003, 2004, 2005, and 2006 model years.
This part cross-references Standard Ignition UF-351 and Delphi GN10245 for the same application.
What It Is Used For
- Replacing a misfiring ignition coil on a Nissan Sentra
- Restoring spark delivery after coil failure
- Addressing rough idle caused by ignition coil breakdown
- Correcting hard-start or no-start conditions tied to coil output
- Resolving check engine light concerns related to ignition performance
Installation Notes and Tips
Verify the connector style, mounting style, and engine application before installation. This coil uses a 3-pole connector and bolted mounting, so the existing harness and mounting point must match the listed configuration. Confirm the vehicle year and notes carefully, especially the 2002 Sentra from 04/2002 and the 2003-2004 Sentra listing with the 12V - 3-Pin Connector - Flush-Fitting Pencil Ignition Coils - Bolted note.
Quality Assurance
Hella is an established automotive parts brand with broad OE and aftermarket coverage. This ignition coil is listed with direct fitment data and multiple interchange references, including Hella Part Number 193175681, to support accurate replacement selection for the specified Nissan Sentra applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Nissan | Sentra | S | N/A | Federal |
| 2005 | Nissan | Sentra | S | N/A | Federal |
| 2004 | Nissan | Sentra | Base | N/A | 12V - 3-Pin Connector - Flush-Fitting Pencil Ignition Coils - Bolted |
| 2003 | Nissan | Sentra | XE | N/A | 12V - 3-Pin Connector - Flush-Fitting Pencil Ignition Coils - Bolted |
| 2002 | Nissan | Sentra | XE | N/A | From 04/2002 |
