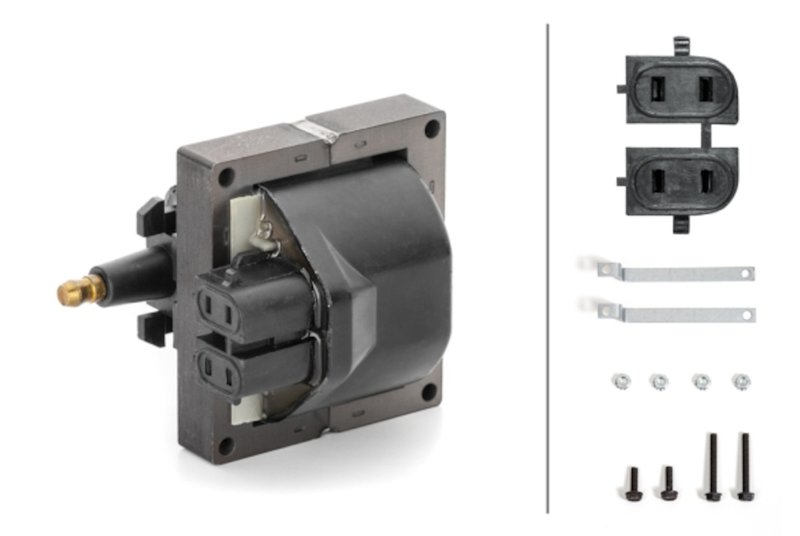

Hella 230035121 Ignition Coil

HELLA Ignition Coil 230035121

The HELLA ignition coil 230035121 is built to deliver stable ignition voltage and consistent spark energy for smoother engine operation. It is a bolted ignition coil to distributor design with a 4-pin connector, made for a wide range of Chevrolet, GMC, Buick, Cadillac, Pontiac, Isuzu, Jeep, and Oldsmobile applications.

For drivers searching for an ignition coil for Chevrolet P30, GMC P3500, or other distributor-equipped GM vehicles, this HELLA unit offers the fitment and construction details needed for a direct replacement. Part number 230035121 is also cross-referenced to Continental 49035 for the same application.

Key Features

• Ignition coil to distributor configuration
• Bolted mounting type for secure installation
• 4 mounting bores and 4 poles
• Includes add-on material
• Built for vibration resistance and corrosion protection
• Tested for mechanical stability and long-term reliability

Product Details

HELLA 230035121 is an ignition coil designed for distributor-based ignition systems where dependable spark output matters. By helping maintain proper ignition voltage and spark energy, it supports smoother engine performance and cleaner combustion. The coil’s bolted design, 4-pin connector layout, and corrosion-resistant construction make it a practical replacement for older GM trucks, vans, SUVs, and select import applications.

Compatible With 1987-1994 Chevrolet P30, 1996-1997 Chevrolet P30, 1987-1994 GMC P3500, and 1996-1997 GMC P3500. Additional fitment includes Chevrolet Camaro, Corvette, Astro, Blazer, C1500, K1500, S10, and GMC Jimmy, Sonoma, Safari, and Yukon applications across the listed model years.

This part number, 230035121, is used across many distributor ignition applications where the original coil mounts with bolts and uses a 4-pin electrical connection.

Common Problems This Part Can Address

• Weak or inconsistent spark output
• Hard starting caused by ignition coil wear
• Misfire conditions related to coil failure
• Rough idle from unstable ignition voltage
• Corrosion or vibration-related coil deterioration

Installation Notes and Tips

• Verify the vehicle uses an ignition coil to distributor setup before ordering.
• Match the 4-pin connector, 4-bore mounting pattern, and bolted mounting style to the original part.
• Check the coil bracket and surrounding ignition components for wear before installation.
• Use the listed fitment notes for vehicles with specific bracket or module configurations.
• Confirm interchange references and OE-style dimensions against the removed part.

Quality Assurance

HELLA manufactures this ignition coil with emphasis on vibration resistance, corrosion protection, and mechanical stability. Each unit is rigorously tested to support dependable performance in demanding operating conditions.

Fits 1985-1997 Chevrolet and GMC distributor-ignition applications, including P30, P3500, Camaro, Corvette, Astro, Blazer, C1500, K1500, S10, Jimmy, Sonoma, Safari, and Yukon models as listed.
