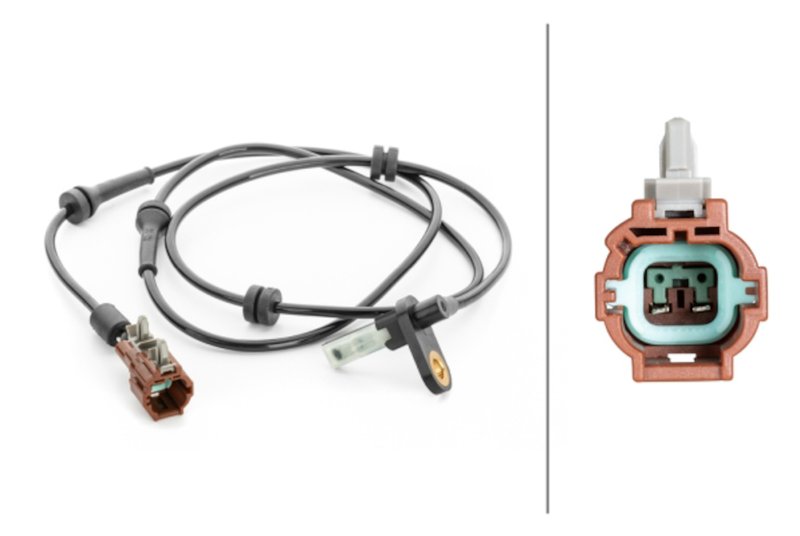

Hella 230040671 ABS Wheel Speed Sensor - Rear Left

HELLA ABS Wheel Speed Sensor for Rear Axle

Restore accurate wheel speed monitoring with this HELLA ABS wheel speed sensor, part number 230040671. Built as a standard replacement for the rear axle wheel side, it supports stable ABS operation by sending precise wheel movement data to the braking system.

• ABS wheel speed sensor for rear axle applications
• Hall sensor design with 2-pin, female connector
• Brown oblong connector with blade terminals
• Wiring harness included; cable length 52.56 in. (1335 mm)
• Supplementary holder included for a cleaner fit
• Standard replacement grade for select Nissan Titan applications
• Part number 230040671

Fitment and application details

Compatible with select Nissan Titan rear left applications, this sensor is listed for 2004-2011 Nissan Titan, rear left, including ABS wheel speed sensor wire harness, and 2012 Nissan Titan, rear left, to 12/2011. Use part number 230040671 when matching the correct rear axle sensor for these vehicles.

This part cross-references Standard Ignition ALS639 for the same application.

What this sensor helps address

• ABS warning light caused by a failed rear wheel speed sensor
• Erratic or missing wheel speed signal at the rear axle
• ABS engagement issues during braking
• Traction and stability control faults tied to wheel speed input
• Harness-related replacement needs on Nissan Titan rear left applications

Installation notes

Mounting hardware is not included. The sensor is supplied with a wiring harness and holder, and the connector uses a 2-pin female oblong design with blade terminals. Verify rear axle, rear left placement and confirm connector style, cable length, and OE-style routing before installation. Assy/disassy by qualified personnel is required.

Quality assurance

HELLA builds this ABS wheel speed sensor with durable materials and precision-focused construction for dependable braking-system input under demanding road conditions. Part number 230040671 is engineered as a direct-fit replacement for the listed Nissan Titan rear left applications.
