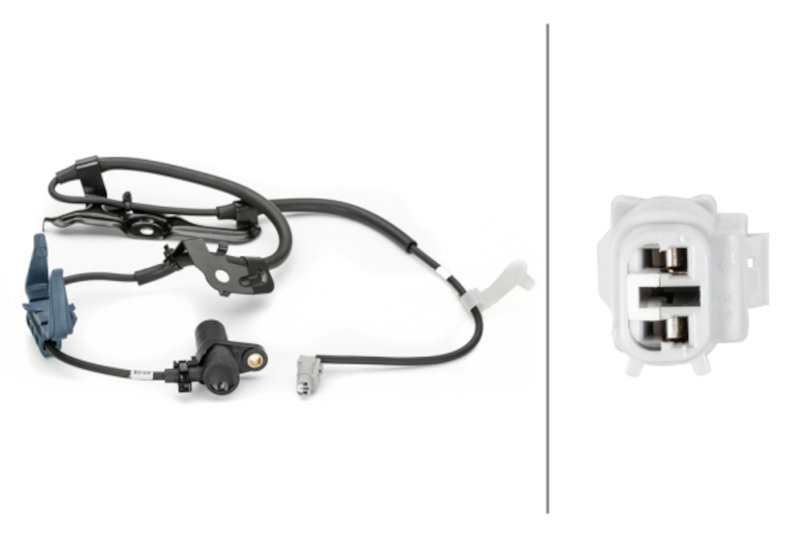

Hella 230040721 ABS Wheel Speed Sensor - Front Right

ABS Wheel Speed Sensor for Front Right Fitment

HELLA ABS Wheel Speed Sensor Part Number 230040721 is a standard replacement sensor for front axle wheel-side applications. It provides accurate wheel speed detection to support ABS operation, braking stability, and consistent control on select Toyota models.

Key Features

• ABS wheel speed sensor for the front axle wheel side
• Inductive sensor design with 2-pin connection
• Wiring harness included, 39.37 in. (1000 mm) cable length
• Oblong white connector with blade terminals
• Supplementary holder included for a secure fit
• Standard replacement grade for direct service use

Detailed Product Information

Built by Hella, part number 230040721 is engineered to monitor wheel movement and send the signal needed for ABS system operation. The sensor uses a 2-pin inductive design and a 1000 mm wiring harness to reach the front wheel-side mounting location. Its oblong connector, white housing, and blade-style terminals support a straightforward service replacement on the front axle.

This ABS wheel speed sensor fits 2005-2012 Toyota Avalon, front right, including ABS wheel speed sensor wire harness. It also fits 2007 Toyota Camry, front right; 2008 Toyota Camry, front right; 2009 Toyota Camry, front right, excluding Japan-built models; and 2010-2011 Toyota Camry, front right, including ABS wheel speed sensor wire harness. Part number 230040721 is also cross-referenced to Delphi SS11656.

What It Helps Address

• ABS warning light caused by a failed front wheel speed sensor
• Erratic or missing wheel speed signal at the front right wheel
• Loss of ABS function during braking events
• Brake stability issues related to inaccurate wheel rotation data
• Service replacement for damaged sensor wiring or connector wear

Installation Notes and Tips

Install at the front axle wheel side and verify the connector, terminal count, and harness routing before final assembly. The sensor is listed with a 1000 mm cable length and includes a holder; mounting hardware is not included. Assy/disassy by qualified personnel is required.

Quality Assurance

HELLA manufactures this ABS wheel speed sensor as a standard replacement part for select Toyota Avalon and Toyota Camry applications. Part number 230040721 is built for accurate speed detection and dependable service in braking-system maintenance.
