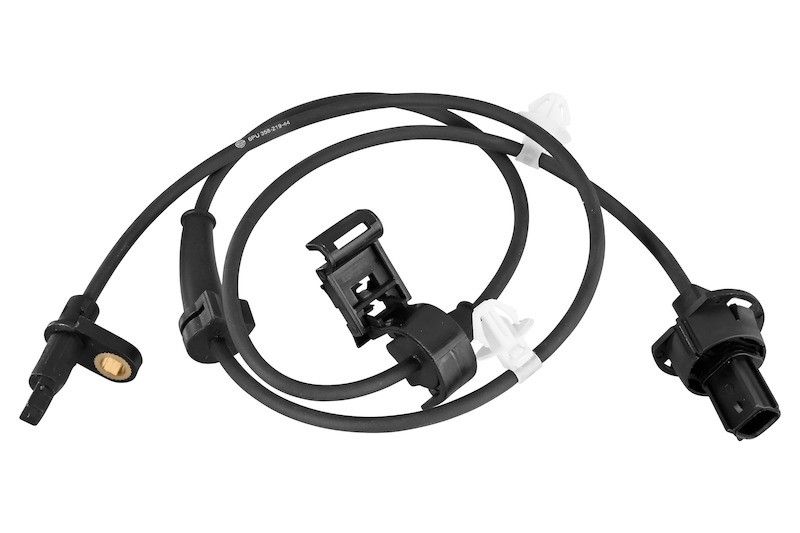

Hella 358219441 ABS Wheel Speed Sensor - Front Right

Overview

Hella ABS Wheel Speed Sensor 358219441 is a standard replacement sensor for select Honda and Acura applications. It uses Hall sensor technology and a rectangular female connector to deliver accurate wheel speed input for ABS operation.

Compatible With select Honda Passport, Honda Ridgeline, Honda Pilot, and Acura MDX applications, this sensor is built with a 35.24-inch wiring harness and a 2-pin terminal layout for a direct-style service replacement.

Key Features

• Hall sensor design for precise wheel speed detection
• Standard replacement grade for service work
• Rectangular connector with black housing
• 2-pin female connector and male terminal interface
• Includes wiring harness for the sensor assembly
• Part number 358219441 for catalog matching

Detailed Description

Hella 358219441 is an ABS wheel speed sensor engineered to monitor wheel movement and send the signal needed for ABS control. The sensor uses a Hall-effect design, a rectangular connector, and a 35.24-inch harness to support clean routing during replacement service. Its front axle wheel-side mounting configuration and clip-style supplementary fitment details align with the listed applications.

This part cross-references 57450TZ5A02 for the same application. Use part number 358219441 when matching the sensor to the correct service position on compatible Honda Passport, Honda Ridgeline, Honda Pilot, and Acura MDX models.

What It Helps Address

• ABS warning light caused by a failed wheel speed sensor
• Erratic wheel speed signal during braking
• Loss of ABS stability input from the affected wheel
• Harness-related sensor replacement needs
• Service issues tied to damaged connector or terminal wear

Installation Notes

Fits 2019-2025 Honda Passport, front right; 2017-2025 Honda Ridgeline, front right; 2016-2022 Honda Pilot, front right; and 2014-2020 Acura MDX, front right. Verify connector shape, terminal count, harness length, and mounting location before installation. Qualified personnel are required for assembly/disassembly service.

Quality Assurance

Hella applies precision-focused engineering and durable materials to support reliable ABS signal performance under demanding road conditions. Part number 358219441 is built as a standard replacement sensor for the listed applications.
