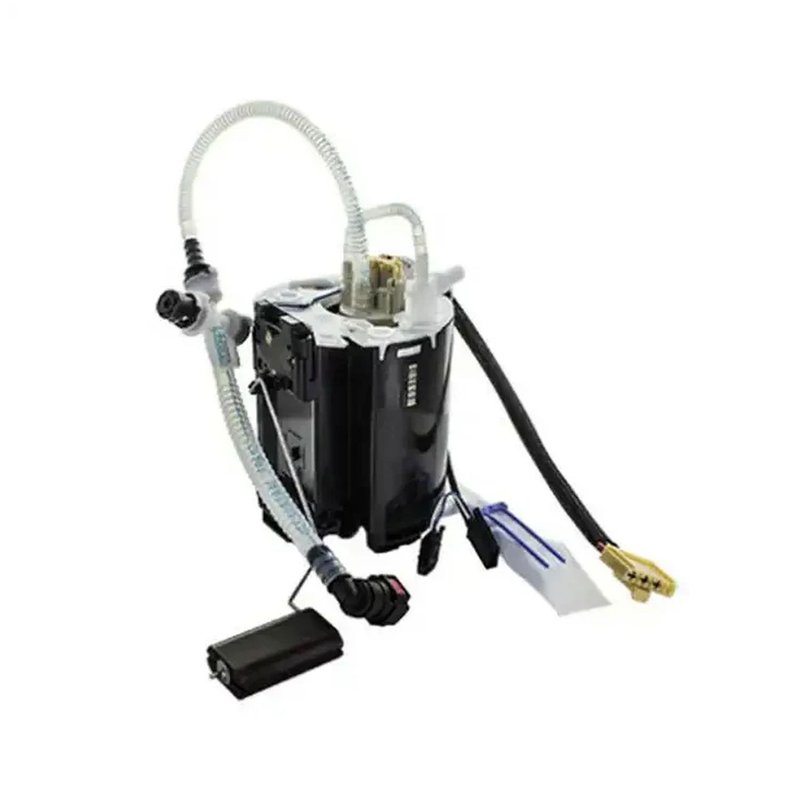

Hotbray C2D37814ES Fuel Pump Module Assembly

Fuel Pump Module Assembly for Jaguar

This Hotbray fuel pump module assembly is built for gas applications and includes an integrated fuel level sender and pressure regulator. It is a direct fit for select Jaguar models, including XJ, XF, XJR, XFR, XFR-S, and XJR575 applications, with fitment covering 2010-2019 model years.

Key Features

• Electric in-tank fuel pump module assembly for gas fuel systems
• Includes a fuel level sender assembly and pressure regulator
• Female quick-connect outlet with a blade-style electrical terminal
• External strainer included for fuel pickup filtration
• 12-volt design with a maximum pressure rating of 116.0
• Average flow rating of 44 Gp and system pressure of 65

Detailed Description

Part number C2D37814ES is a fuel pump module assembly engineered for select Jaguar fuel delivery systems. It uses an electric in-tank pump, a female quick-connect outlet, and a 6-terminal blade connection to support the fuel system layout used on Jaguar XJ, XF, XJR, XFR, XFR-S, and XJR575 models. The assembly also includes the fuel level sender and regulator, which makes it a practical replacement when the original module has worn pump, sender, or pressure-control components. This part cross-references Delphi FG1669 for the same application.

What It Is Used For

• Restoring fuel delivery when the original pump no longer maintains pressure
• Replacing a faulty fuel level sender that causes inaccurate gauge readings
• Addressing pressure regulation issues in the fuel system
• Correcting hard-start, stalling, or fuel starvation symptoms tied to module wear

Installation Notes and Tips

Verify connector style, outlet type, and pressure requirements before installation. This module is designed for in-tank use and does not include a gasket, seal, or lock ring. Confirm the vehicle’s fuel system specifications and compare the original part number C2D37814ES before installation on Jaguar XJ, XF, XJR, XFR, XFR-S, or XJR575 applications.

Quality Assurance

Hotbray supplies replacement fuel system components for service applications. Part number C2D37814ES is specified with a regulated fuel delivery design, integrated sender assembly, and application-specific fitment for select Jaguar models.
