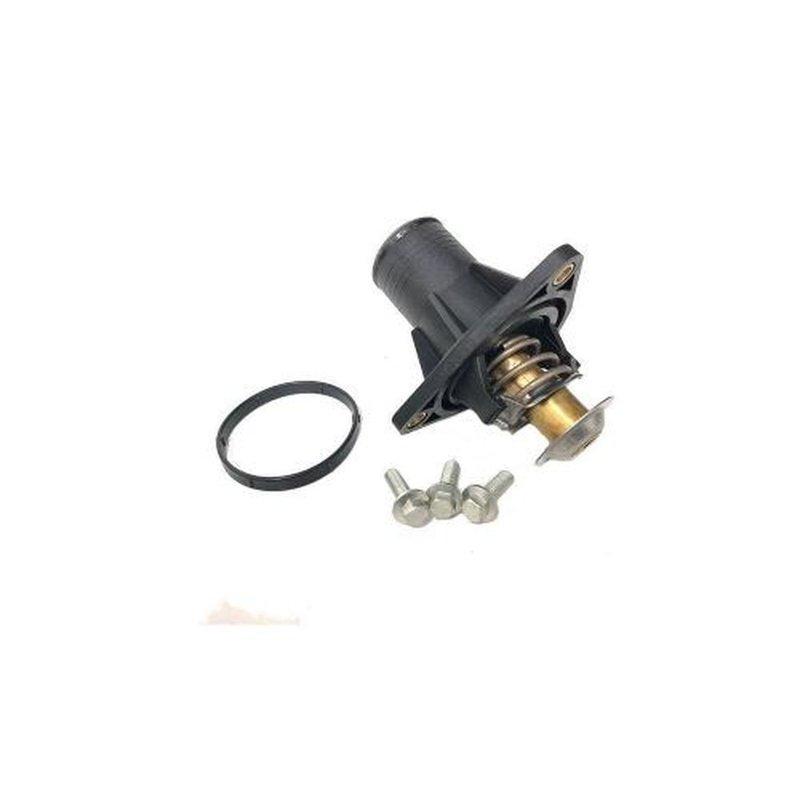

Hotbray C2S11278ES Engine Coolant Thermostat Housing Assembly
| Brand | Hotbray C2S11278ES |
|---|---|
| Material | Copper |
| Material | Plastic |
| Material | Stainless steel |
| Color | Black |
| Inside Diameter | 1.3 |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 3 |
| Bolt Hole Center To Bolt Hole Center | 2.8 |
| Start to Open Temperature | 180 |
| Start to Open Temperature | 82 |
| Gasket Type | Gasket |
| Flange Length | 3 |
| Flange Thickness | 0.24 |
| Flange Width | 3 |
| Outlet Port Quantity | 1 |
| Bleeder Hole | No |
| Bleeder Hole | Yes |
| Bolt Hole Quantity | 3 |
| Bolts Included | No |
| Check Valve | Yes |
| Gasket / Seals | Included |
| Gasket/seal Material | Rubber |
| Hardware Included | No |
| Housing Included | Included |
| Includes Jiggle Pin Check Valve | Yes |
| Inlet Diameter | 1.440 |
| Installation Tool Included | No |
| Jiggle Pin | No |
| Jiggle Pin Check Valve Quantity | 1 |
| Fits | Jaguar · 7 vehicles |
Integrated housing design. Thermostat and housing are combined for a streamlined cooling system service.
180°F opening point. Helps regulate coolant flow at the specified activation temperature.
Gasket/seal included. Provides the sealing component needed for installation.
Cross-references AP Exhaust 48788, Four Seasons 86201 and Gates 34052 for the same application. See all 6.
Engine Coolant Thermostat Housing
Hotbray C2S11278ES is an integrated thermostat housing assembly for the cooling system. It combines the housing and thermostat in one unit and includes a gasket/seal for a direct replacement service on compatible applications.
Key Features
- Integrated housing thermostat design for simplified cooling system service
- Thermostat opens at 180°F / 82°C
- Includes gasket/seal for sealing at installation
- Constructed with copper, plastic, and stainless steel components
- Black finish with one outlet port and three-bolt mounting pattern
- Cross-references Gates 34052 and Four Seasons 86201 for the same application
Detailed Description
This Hotbray thermostat housing assembly, part number C2S11278ES, is built as an integrated housing thermostat with the thermostat included. The housing uses a three-bolt pattern, a single outlet port, and a gasket/seal to support a secure cooling system connection. Material details include copper, plastic, stainless steel, and rubber sealing components, with a black exterior finish.
Compatible With 2002-2008 Jaguar X-Type applications, this thermostat housing is specified with a 180°F opening temperature and a check valve/jiggle-pin style vent feature. The C2S11278ES part number is also useful when matching replacement cooling components against interchange references such as Gates 34052 or Four Seasons 86201.
What It Is Used For
- Replacing a thermostat housing with a leaking seal or gasket
- Restoring proper coolant flow control at the specified opening temperature
- Addressing overheating caused by a thermostat that opens too late or sticks
- Repairing cracked or worn housing components in the cooling system
- Matching an OE-style integrated thermostat housing assembly for service work
Installation Notes and Tips
Verify the housing style, outlet port count, bolt pattern, and thermostat opening temperature before installation. Clean the mating surfaces thoroughly and inspect the cooling system for contamination or damage that could affect sealing. This assembly includes a gasket/seal, and no mounting hardware is listed in the product data.
Quality Assurance
Use the part number C2S11278ES and the vehicle fitment details to confirm application before ordering. This assembly is listed with direct fitment for 2002-2008 Jaguar X-Type applications and cross-references AP Exhaust 48788, Four Seasons 86201, and Gates 34052 for the same application.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2008 | Jaguar | X-Type | Base | 3.0L | V6 | — |
| 2007 | Jaguar | X-Type | Base | 3.0L | V6 | — |
| 2006 | Jaguar | X-Type | Base | 3.0L | V6 | — |
| 2005 | Jaguar | X-Type | Base | 2.5L | V6 | — |
| 2004 | Jaguar | X-Type | Base | 2.5L | V6 | — |
| 2003 | Jaguar | X-Type | Base | 2.5L | V6 | — |
| 2002 | Jaguar | X-Type | Base | 2.5L | V6 | — |
