Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

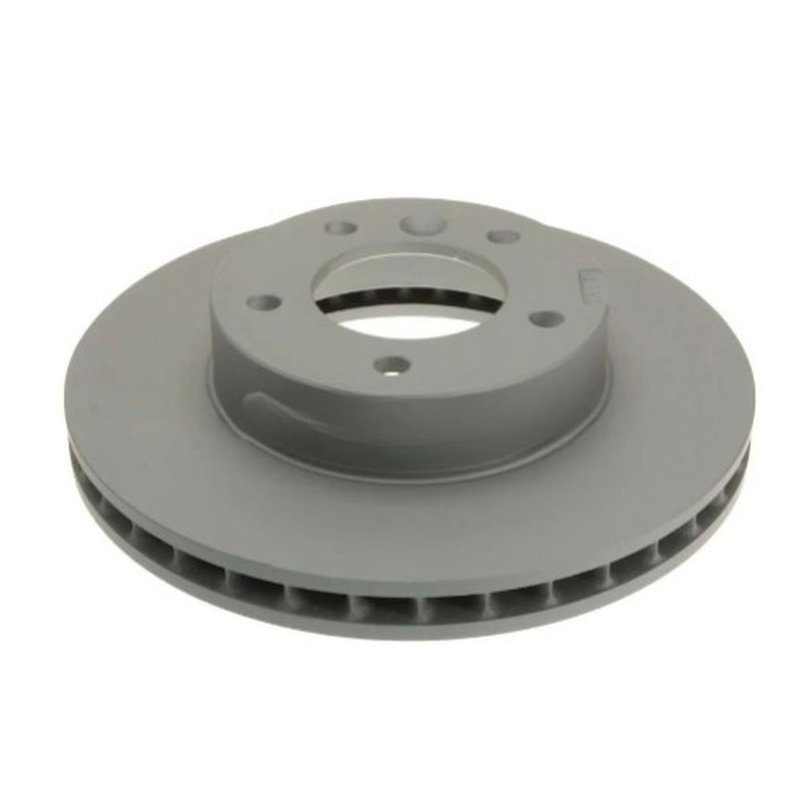

Hotbray JLM1826R Disc Brake Rotor - Front
| Brand | Hotbray JLM1826R |
|---|---|
| Position | Front |
| Material | Gray cast iron |
| Material | Grey cast iron |
| Discard Thickness | 1.063 |
| Discard Thickness | 26 |
| Discard Thickness | 27.00 |
| Discard Thickness | 27.000 |
| Nominal Thickness | 1.110 |
| Nominal Thickness | 28.00 |
| Nominal Thickness | 28.200 |
| Nominal Thickness | 28.40 |
| Disc Finish | Coated |
| Hat Finish | Coated |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.635 |
| Overall Height | 66.50 |
| Overall Height | 66.80 |
| Overall Height | 66.950 |
| Overall Height | 668.00 |
| Outside Diameter | 11.460 |
| Outside Diameter | 290.80 |
| Outside Diameter | 291.00 |
| Outside Diameter | 291.100 |
| Mounting Bolt Hole Quantity | 5 |
| Mounting Bolt Hole Quantity | 6 |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 80.00 |
| Center Hole Diameter | 80.04 |
| Bolt Circle | 120.65 |
| Bolt Hole Diameter | 13.50 |
| Fits | Jaguar · 21 vehicles |
Vented design. Helps move heat away during repeated braking.
Coated surfaces. Disc and hat finishes add corrosion resistance.
Cast iron construction. Full cast rotor design for conventional brake service.
Cross-references Hella Pagid 355122782, Raybestos Brakes 96586 and Raybestos Brakes 96586R for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Disc Brake Rotor Overview
This Hotbray disc brake rotor, part number JLM1826R, is a vented, conventional replacement rotor built from gray cast iron with coated surfaces for added corrosion resistance. It is engineered for front brake applications on select Jaguar models and uses a 5-lug, 120.65 mm bolt circle layout.
Key Features
- Gray cast iron construction with a full cast design
- Vented rotor type for improved heat management
- Coated disc and hat surfaces with rust-resistant coating
- 5-bolt mounting pattern with 120.65 mm wheel bolt circle
- Outside diameter of 291 mm and nominal thickness of 28.2 mm
Detailed Fitment and Design
Compatible with front brake applications on 1990-1997 Jaguar Vanden Plas, 1990-1997 Jaguar XJ6, 1995-1997 Jaguar XJR, and 1995-1996 Jaguar XJ12. The vented design helps manage heat during repeated braking, while the coated finish helps protect exposed surfaces from rust. Hotbray JLM1826R is a direct-fit style rotor for vehicles that require the specified 80 mm center hole and 13.5 mm bolt hole diameter.
This rotor is a practical choice for Jaguar XJ6 and Jaguar XJR brake service when the original rotor is worn, below minimum thickness, or showing surface corrosion. The JLM1826R part number is also useful when cross-checking replacement options for the same application.
What It Helps Address
- Brake pulsation caused by rotor wear or thickness variation
- Reduced braking performance from heat buildup
- Surface rust on exposed rotor areas
- Noise or vibration linked to worn front rotors
- Service replacement for a rotor that no longer meets thickness limits
Installation Notes and Quality
Verify rotor dimensions, bolt pattern, center hole diameter, and minimum thickness before installation. Clean the hub mounting surface and confirm torque specifications during assembly. This part cross-references Raybestos Brakes (e.g., 96586, 96586R) for the same application.
Hotbray JLM1826R is built as a conventional vented rotor with coated surfaces for corrosion resistance and consistent service fitment.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1997 | Jaguar | Vanden Plas | Base | 4.0L | L6 | Front | — |
| 1997 | Jaguar | XJ6 | Base | 4.0L | L6 | Front | — |
| 1997 | Jaguar | XJR | Base | 4.0L | L6 | Front | — |
| 1996 | Jaguar | Vanden Plas | Base | 4.0L | L6 | Front | — |
| 1996 | Jaguar | XJ12 | Base | 6.0L | V12 | Front | — |
| 1996 | Jaguar | XJ6 | Base | 4.0L | L6 | Front | — |
| 1996 | Jaguar | XJR | Base | 4.0L | L6 | Front | — |
| 1995 | Jaguar | Vanden Plas | Base | 4.0L | L6 | Front | — |
| 1995 | Jaguar | XJ12 | Base | 6.0L | V12 | Front | — |
| 1995 | Jaguar | XJ6 | Base | 4.0L | L6 | Front | — |
| 1995 | Jaguar | XJR | Base | 4.0L | L6 | Front | — |
| 1994 | Jaguar | Vanden Plas | Base | 4.0L | L6 | Front | — |
| 1994 | Jaguar | XJ6 | Base | 4.0L | L6 | Front | — |
| 1993 | Jaguar | Vanden Plas | Base | 4.0L | L6 | Front | — |
| 1993 | Jaguar | XJ6 | Base | 4.0L | L6 | Front | — |
| 1992 | Jaguar | Vanden Plas | Base | 4.0L | L6 | Front | — |
| 1992 | Jaguar | XJ6 | Base | 4.0L | L6 | Front | — |
| 1991 | Jaguar | Vanden Plas | Base | 4.0L | L6 | Front | — |
| 1991 | Jaguar | XJ6 | Base | 4.0L | L6 | Front | — |
| 1990 | Jaguar | Vanden Plas | Base | 4.0L | L6 | Front | — |
| 1990 | Jaguar | XJ6 | Base | 4.0L | L6 | Front | — |
