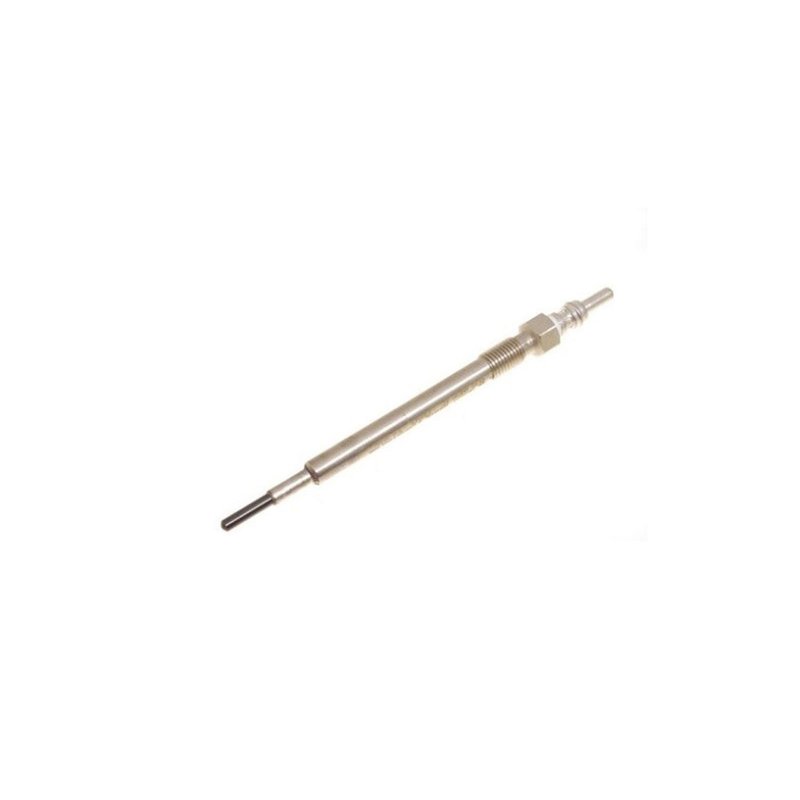

Hotbray LR013275ES Diesel Glow Plug

Diesel Glow Plug Overview

This Hotbray diesel glow plug is built for Land Rover diesel applications that require a pencil-type design with a pin connector and M8 x 1 thread. It is identified by part number LR013275ES and cross-references V99140102 for the same application.

Compatible With Land Rover Range Rover, Range Rover Sport, and Discovery diesel fitments listed below, this glow plug supports reliable cold-start combustion performance in the correct engine application.

Key Features

• Pencil-type glow plug design for diesel preheating.
• 7-volt electrical specification.
• Pin-style connector for the specified application.
• M8 x 1 thread size with 10 mm spanner size.
• 125 mm overall length and 25 mm fitting depth.
• 10 Nm tightening torque specification.

Detailed Description

Hotbray LR013275ES is a diesel glow plug specified for Land Rover diesel engines in Range Rover, Range Rover Sport, and Discovery applications. The pencil-type construction, pin connector, and M8 x 1 thread help match the original fitment requirements, while the 7-volt rating and 25 mm fitting depth align with the listed application data. Use LR013275ES when replacing a worn or failed glow plug in the confirmed fitment range.

This part cross-references V99140102 for the same application.

Common Issues It May Solve

• Hard starting in cold weather.
• Extended cranking before the engine fires.
• Rough initial combustion after startup.
• Glow plug fault codes related to the listed application.

Installation Notes and Tips

Verify the connector style, thread size, and overall length before installation. Follow the specified 10 Nm tightening torque and confirm the engine application matches the listed Land Rover fitment for Range Rover, Range Rover Sport, or Discovery. Part number LR013275ES should be matched to the vehicle’s original glow plug specification before replacement.

Quality Assurance

EUROSPARE;LR product line coverage is listed for the confirmed Land Rover applications, and the part is cataloged under Hotbray LR013275ES for direct application matching.
