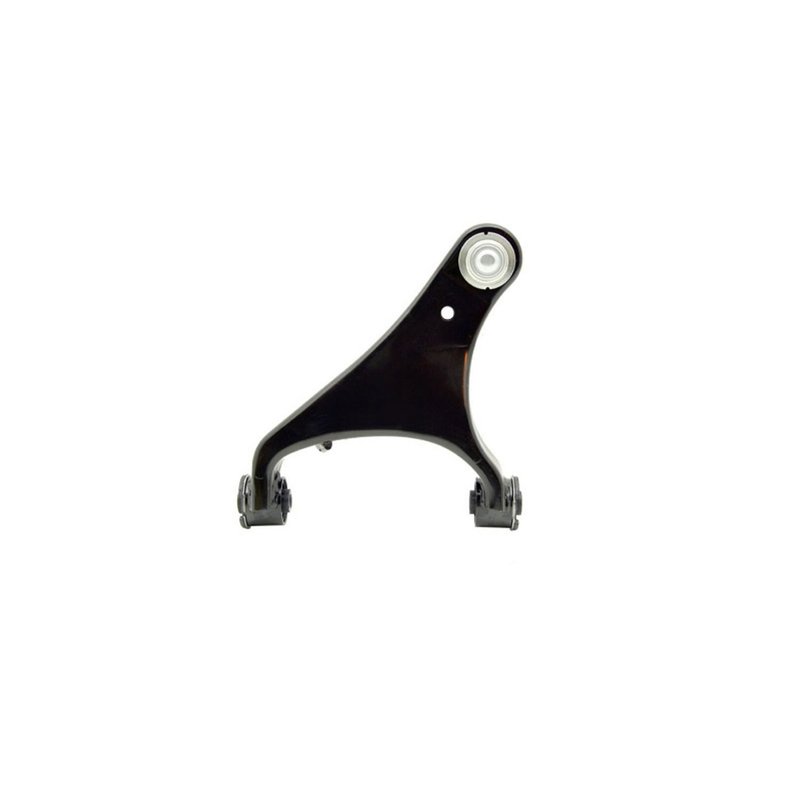

Hotbray LR051615ES Suspension Control Arm - Left
| Brand | Hotbray LR051615ES |
|---|---|
| Position | Left |
| Pre-Greased | No |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press in |
| Control Arm Material | Aluminum |
| Control Arm Material | Stamped steel |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Control Arm Maximum Length | 11.417 |
| Control Arm Maximum Length | 17.125 |
| Control Arm Maximum Length | 237 |
| Control Arm Maximum Length | 290.0 |
| Bushing Material | Rubber |
| Thread Size | M12x1.75 |
| Ball Joint Included | No |
| Ball Joint Included | Yes |
| Ball Joint Installed | Yes |
| Ball Joint Stud Length | 1.346 |
| Ball Joint Stud Length | 34.2 |
| Ball Joint Stud Type | Threaded |
| Ball Joint Thread Diameter | 0.472 |
| Ball Joint Thread Diameter | 12.0 |
| Ball Joint Thread Diameter | 14 |
| Control Arm Color | Black |
| Control Arm Maximum Width | 14.0 |
| Control Arm Maximum Width | 151.1 |
| Control Arm Maximum Width | 288.5 |
| Control Arm Maximum Width | 5.949 |
| Fits | Land Rover · 7 vehicles |
OE-style replacement. Direct-fit suspension control arm for service replacement.
Ball joint installed. Ready for faster preparation during suspension repair.
Bushings included. Rubber bushings are part of the assembly.
Cross-references Delphi TC3030, Dorman - Premium CB35057PR and Mevotech Supreme CMS101224 for the same application. See all 7.
Suspension Control Arm Overview
Hotbray LR051615ES is a suspension control arm for select Land Rover LR4 applications. It is built with a press-in ball joint, rubber bushings, and included mounting hardware for a direct replacement-style repair.
Key Features
- Fits 2010-2016 Land Rover LR4, left.
- Ball joint is installed for faster service preparation.
- Rubber bushings are included for the arm assembly.
- Constructed from steel, stamped steel, aluminum, and forged control arm design elements.
- Black finish for a clean underbody appearance.
- Part number LR051615ES for ordering and catalog lookup.
Detailed Description
This Hotbray suspension control arm, part number LR051615ES, is listed for 2010-2016 Land Rover LR4 left-side applications. The assembly includes a press-in style ball joint, installed ball joint, and bushings, with a non-adjustable design and M12x1.75 thread specification. The LR051615ES also cross-references Delphi TC3030 for the same application.
With its steel-based construction and included hardware, this control arm is suited for replacing a worn or damaged suspension arm while maintaining the original mounting layout. The LR051615ES is a fitment-specific option for Land Rover LR4 suspension service, and the part number LR051615ES helps confirm the correct catalog match.
Common Uses
- Replacing a worn suspension control arm on a Land Rover LR4.
- Addressing looseness or play from a worn ball joint.
- Restoring proper suspension geometry after arm damage.
- Correcting noise caused by deteriorated bushings.
- Servicing a left-side suspension arm with the correct fitment.
Installation Notes
Verify left-side fitment before installation and confirm thread size, mounting hole diameter, and ball joint style against the removed component. Because the ball joint is press-in style and the assembly is non-adjustable, proper alignment checks should follow installation. Use the included mounting hardware only if it matches the vehicle’s original mounting points and service requirements.
Quality Assurance
Hotbray LR051615ES is cataloged with OE-style replacement fitment data and interchange references for application matching. Confirm the part number LR051615ES against the vehicle and removed component before installation.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2016 | Land Rover | LR4 | Base | 3.0L | V6 | GAS | Left | Includes Upper Ball Joint And Bushings |
| 2015 | Land Rover | LR4 | Base | 3.0L | V6 | GAS | Left | Includes Upper Ball Joint And Bushings |
| 2014 | Land Rover | LR4 | Base | 3.0L | V6 | GAS | Left | Includes Upper Ball Joint And Bushings |
| 2013 | Land Rover | LR4 | Base | 5.0L | V8 | GAS | Left | Includes Upper Ball Joint And Bushings |
| 2012 | Land Rover | LR4 | Base | 5.0L | V8 | GAS | Left | Includes Upper Ball Joint And Bushings |
| 2011 | Land Rover | LR4 | Base | 5.0L | V8 | GAS | Left | Includes Upper Ball Joint And Bushings |
| 2010 | Land Rover | LR4 | HSE | 5.0L | V8 | GAS | Left | Includes Upper Ball Joint And Bushings |
