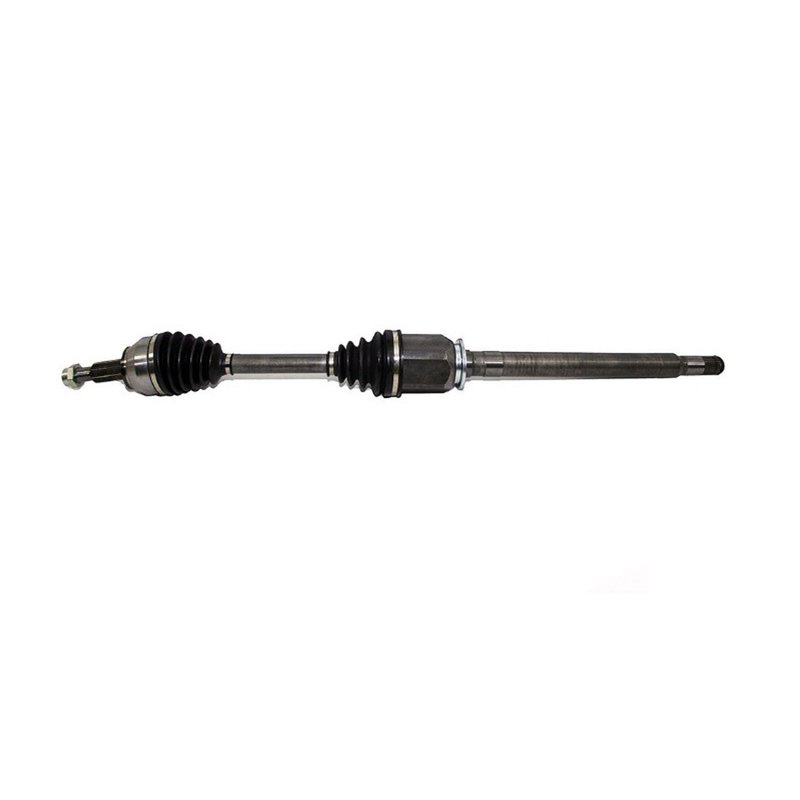

Hotbray LR064251ES Drive Axle Shaft - Right

Overview

This Hotbray drive axle shaft, part number LR064251ES, is built for right-side driveline service on select Land Rover applications. It is specified with axle nut details, spline counts, and boot materials that match the requirements of the listed fitments.

Compatible With Land Rover Range Rover, Range Rover Sport, and Discovery applications, this axle shaft supports direct replacement service where the original shaft has wear, noise, or joint-related damage. The EUROSPARE;LR product line focuses on application-specific driveline parts for Land Rover platforms.

Key Features

• Drive axle shaft assembly for right-side installation.
• 29 inboard splines and 31 outboard splines for application-specific fitment.
• Includes axle nut with M24x2 thread, 36 mm socket size, and hex design.
• Neoprene boot material with TPE outer ball joint boot construction.
• Male inboard joint and conventional outboard joint design.
• Part number LR064251ES for ordering and catalog matching.

Detailed Description

Part number LR064251ES is a Hotbray drive axle shaft engineered for select Land Rover driveline applications. The shaft uses a 1028 mm compressed length, 29 inboard splines, and 31 outboard splines, along with an included axle nut to match the listed service requirements. Boot materials are specified as neoprene, with neoprene at the inner ball joint and TPE at the outer ball joint for the assembly configuration.

This part cross-references NCV83002 and PR83002 for the same application. It is listed for 2013-2022 Land Rover Range Rover, right; 2014-2022 Land Rover Range Rover Sport, right; and 2017-2021 Land Rover Discovery, right. Use LR064251ES when replacing a worn or damaged axle shaft on these vehicles.

Common Uses

• Replacing a worn axle shaft with spline or joint wear.
• Addressing driveline vibration or clicking caused by shaft damage.
• Restoring power transfer through the axle assembly.
• Correcting service issues when the axle nut cannot be reused.

Installation Notes

Fits 2013-2022 Land Rover Range Rover, right. Fits 2014-2022 Land Rover Range Rover Sport, right. Fits 2017-2021 Land Rover Discovery, right. Verify spline count, compressed length, and axle nut specifications before installation. The fitment notes indicate a related component cannot be reused or reinstalled, so inspect the mating hardware during service. Confirm the right-side application and part number LR064251ES before ordering.

Quality Assurance

The EUROSPARE;LR line is positioned for Land Rover-specific replacement parts with application-matched driveline specifications. Part number LR064251ES is cataloged with defined spline counts, joint types, and axle nut details to support accurate replacement selection.
