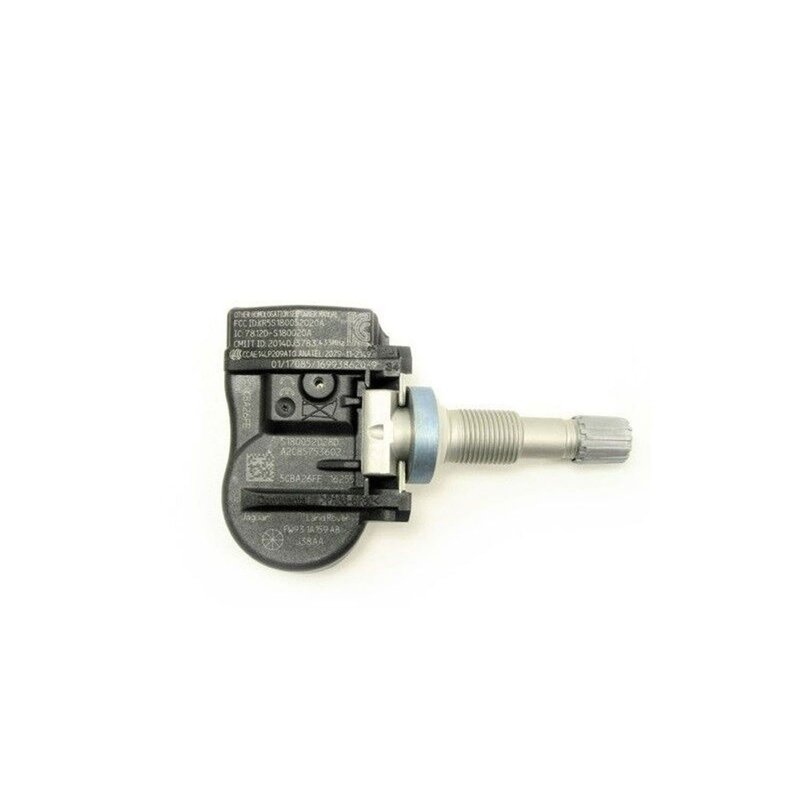

Hotbray LR070840ES Tire Pressure Monitoring System (TPMS) Sensor
OE Quality 60-Day Returns
Hotbray
 EUROSPARE;LR

Hotbray LR070840ES Tire Pressure Monitoring System (TPMS) Sensor

Brand Hotbray LR070840ES
Valve Material Metal
Mounting Method Clamp-in
Mounting Hardware Included Yes
Gasket Or Seal Included Yes
Housing Material Plastic
Valve Color Black
Valve Color Silver
Valve Core Material Nickle coated
Valve Included Yes
Programmable No (sensor is pre-programmed)
Valve Cap Included No
Valve Cap Included Yes
Frequency 314.9
Frequency 315
Frequency 315 / 314.9 / 433
Frequency 433
Attachment Type Clamp-in
Attachment Type Snap-in
Colour Silver
Connector Type Bolt on
Core Material Nickel-coated
Core Material Nickel-plated brass
Frequency Range 433
Grommets Included No
Grommets Included Yes
Hardware Included Yes
Material Aluminum
Material Rubber
Maximum Torque 71
Maximum Torque 8
Product line EUROSPARE;LR
Fits Land Rover · 57 vehicles

Pre-programmed sensor. Reduces setup steps during TPMS replacement service.

Clamp-in metal valve. Secure wheel-mounted construction with a serviceable stem.

Direct pressure monitoring. Provides real-time tire pressure signal transmission.

Cross-references Four Seasons 33560, Four Seasons 33700 and Four Seasons 33900 for the same application. See all 13.

$63.23Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $63.23
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Tire Pressure Monitoring System (TPMS) Sensor options

Overview

This Hotbray EUROSPARE;LR TPMS sensor is a direct tire pressure monitoring replacement for select Land Rover applications. It is pre-programmed, clamp-in, and built with a metal valve stem for serviceable wheel fitment.

Part number LR070840ES is listed for multiple Land Rover models, including Discovery, Range Rover, and Range Rover Sport applications. If you need a Land Rover TPMS sensor replacement with direct pressure signal transmission, LR070840ES is the relevant reference.

Key Features

  • Direct TPMS sensor with pre-programmed operation
  • Clamp-in design with metal valve stem
  • Battery-powered sensor with real-time pressure signal transmission
  • Includes gasket or seal and mounting hardware per product data
  • Compatible with 314.9, 315, and 433 frequency listings

Detailed Description

The Hotbray LR070840ES TPMS sensor is built for Land Rover wheel applications that use a direct monitoring system. Its clamp-in construction, metal valve stem, and bolted mounting style support a secure wheel-mounted installation, while the pre-programmed sensor format reduces setup steps during replacement. The sensor is listed with multiple frequency references, including 314.9, 315, and 433, making it important to verify the required system specification before installation.

Fitment coverage includes 2012-2021 Land Rover Range Rover, 2012-2021 Land Rover Range Rover Sport, 2012-2021 Land Rover Range Rover Evoque, 2018-2021 Land Rover Range Rover Velar, 2015-2021 Land Rover Discovery Sport, 2017-2024 Land Rover Discovery, 2020-2021 Land Rover Defender 110, 2021 Land Rover Defender 90, and 2012-2016 Land Rover LR4. Part number LR070840ES is also cross-referenced to Standard Ignition TPM210 for the same application.

What It Helps Address

  • TPMS warning light caused by a failed sensor
  • Inaccurate tire pressure readings from a worn sensor
  • Loss of pressure signal transmission from the wheel
  • Service issues related to damaged valve stem components
  • Replacement needs after sensor battery depletion

Installation Notes

Confirm the vehicle’s required TPMS frequency and sensor type before installation. This sensor is listed as pre-programmed and uses a clamp-in, bolted mounting design at the wheel valve stem hole. Follow the specified tightening torque values in the vehicle service procedure and verify system relearn or initialization requirements after installation.

Quality Assurance

EUROSPARE;LR product line coverage is focused on Land Rover replacement applications, and this sensor is listed with direct monitoring, real-time pressure transmission, and OE-style fitment references. Part number LR070840ES is provided for application matching across the listed Land Rover models.

Related reading

This part fits 57 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersFuel TypeNotes
2024Land RoverDiscoveryS2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2023Land RoverDiscoveryS2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2022Land RoverDiscoveryS2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2021Land RoverDefender 110S2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2021Land RoverDefender 90S2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2021Land RoverDiscoveryS2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2021Land RoverDiscovery SportS2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2021Land RoverRange RoverHSE3.0LV6DIESELMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2021Land RoverRange Rover EvoqueS2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2021Land RoverRange Rover SportSE3.0LV6DIESELMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2021Land RoverRange Rover VelarS2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2020Land RoverDefender 110S2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2020Land RoverDiscoverySE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2020Land RoverDiscovery SportS2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2020Land RoverRange RoverBase3.0LV6DIESELMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2020Land RoverRange Rover EvoqueS2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2020Land RoverRange Rover SportSE3.0LV6DIESELMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2020Land RoverRange Rover VelarS3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2019Land RoverDiscoverySE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2019Land RoverDiscovery SportSE2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2019Land RoverRange RoverBase3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2019Land RoverRange Rover EvoqueSE2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2019Land RoverRange Rover SportSE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2019Land RoverRange Rover VelarS3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2018Land RoverDiscoverySE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2018Land RoverDiscovery SportSE2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2018Land RoverRange RoverBase3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2018Land RoverRange Rover EvoqueSE2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2018Land RoverRange Rover SportSE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2018Land RoverRange Rover VelarS3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2017Land RoverDiscoverySE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2017Land RoverDiscovery SportSE2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2017Land RoverRange RoverBase3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2017Land RoverRange Rover EvoqueSE2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2017Land RoverRange Rover SportSE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2016Land RoverDiscovery SportSE2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2016Land RoverLR4Base3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2016Land RoverRange RoverBase3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2016Land RoverRange Rover EvoqueSE2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2016Land RoverRange Rover SportSE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2015Land RoverDiscovery SportSE2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2015Land RoverLR4Base3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2015Land RoverRange RoverBase3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2015Land RoverRange Rover EvoquePure2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2015Land RoverRange Rover SportSE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2014Land RoverLR4Base3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2014Land RoverRange RoverBase3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2014Land RoverRange Rover EvoquePure2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2014Land RoverRange Rover SportSE3.0LV6GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2013Land RoverLR4Base5.0LV8GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2013Land RoverRange RoverBase5.0LV8GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2013Land RoverRange Rover EvoquePure2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2013Land RoverRange Rover SportHSE5.0LV8GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2012Land RoverLR4Base5.0LV8GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2012Land RoverRange RoverHSE5.0LV8GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2012Land RoverRange Rover EvoquePure2.0LL4GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
2012Land RoverRange Rover SportHSE5.0LV8GASMade in CN;Tightening Torque [Nm]:4; EUROSPARE;LR
Directly replaces or cross-references 13 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Four Seasons — 33560Four Seasons — 33700Four Seasons — 33900Gates — 33610REDI-Sensor — SE10008Schrader TPMS Solutions — 33500Schrader TPMS Solutions — 33600Standard Ignition — TPM2105503023SE52076V30720224V48720101V52720230
