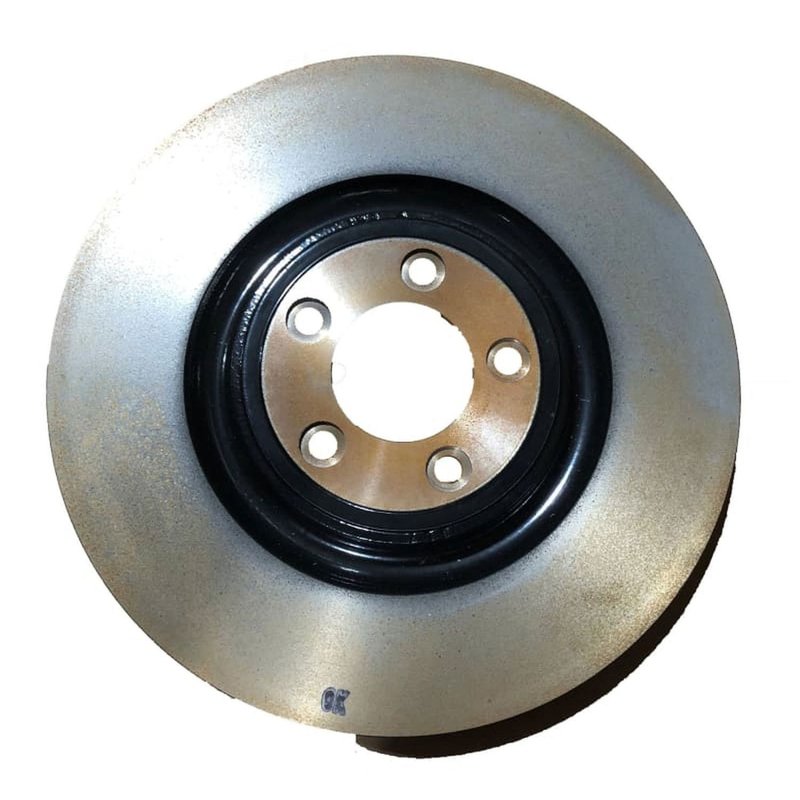

Hotbray T2R5940XP Disc Brake Rotor - Front

Front Disc Brake Rotor for Jaguar Performance Models

The Hotbray T2R5940XP is a front disc brake rotor built for select Jaguar applications that demand consistent braking performance and heat management. It uses high carbon cast iron construction, a vented design, and a Geomet disc finish with rust-resistant coating for added surface protection.

Compatible with front brake service on Jaguar F-Type, XJ, XJR, XF, XFR, XFR-S, XKR, and XKR-S applications, this rotor is engineered around the listed OE-style dimensions for direct replacement use. The Hotbray T2R5940XP also cross-references Bosch 31011495 for the same application.

Key Features

• High carbon cast iron construction for stable braking performance
• Vented rotor design for improved heat dissipation
• Geomet disc finish with rust-resistant coating
• Directional brake surface finish
• 380 mm outside diameter
• 36 mm nominal thickness and 34 mm minimum discard thickness
• 5-bolt mounting pattern with 108 mm bolt circle diameter
• Center bore diameter: 71 mm
• Rotor without hub assembly

Detailed Description

Hotbray T2R5940XP is a conventional vented front brake rotor made for Jaguar performance and luxury platforms that use a large-diameter front braking setup. The high carbon cast iron material helps support thermal stability under repeated stops, while the vented construction and directional braking surface are specified to manage heat and maintain consistent contact across the rotor face. With a 380 mm outside diameter, 36 mm nominal thickness, and 34 mm minimum thickness, this rotor matches the dimensional requirements needed for front brake service on Jaguar F-Type, Jaguar XJ, and related models.

The Geomet finish and rust-resistant coating add surface protection against corrosion, which is important for vehicles exposed to moisture, road salt, and seasonal driving conditions. Part number T2R5940XP is a direct-fit style replacement for the listed front applications and is also referenced by Bosch 31011495.

Common Issues This Rotor Can Address

• Brake pulsation caused by rotor wear or thickness variation
• Reduced braking consistency from heat buildup in the front brakes
• Surface corrosion on an exposed brake rotor
• Rotor replacement needs after reaching minimum thickness
• Noise or vibration associated with worn front brake rotors

Installation Notes and Tips

Verify rotor dimensions, hub style, and front axle fitment before installation. This rotor is listed as rotor without hub assembly and does not include bearings. Always inspect pads, calipers, and wheel hub surfaces during brake service, and measure rotor thickness to confirm it remains above the minimum specification before reuse. For best results, follow the vehicle manufacturer’s brake service procedures and torque specifications.

Quality Assurance

Hotbray T2R5940XP is built to the listed specifications for front brake applications on Jaguar performance models. The combination of high carbon cast iron, vented construction, and corrosion-resistant surface treatment supports consistent fitment and service life in normal brake maintenance.
