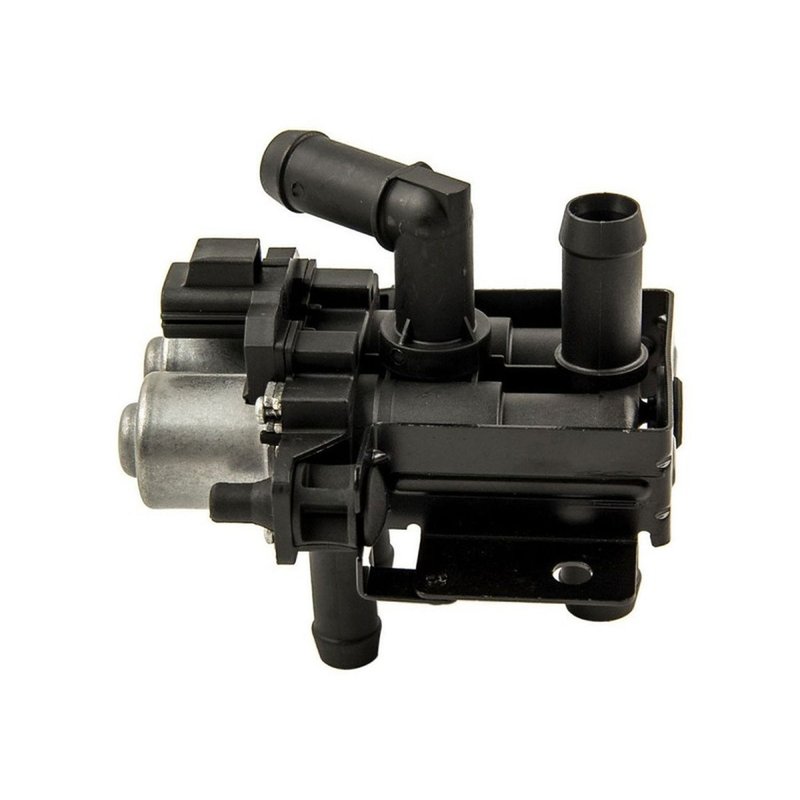

Hotbray XR822975ES HVAC Mode Valve
OE Quality 60-Day Returns
Hotbray

Hotbray XR822975ES HVAC Mode Valve

Brand Hotbray XR822975ES
Bypass Yes
Connector Gender Female
Material Plastic
Material Stainless steel
Material Steel
Material Thermoplastic
Mounting Hardware Not included
Number Of Connectors 5 connectors
Opening 0.625
Opening B 0.625
Opening C 0.750
Opening D 0.750
Opening E 0.750
Operation Type Electric valve
Style Bypass
Terminal Pin Quantity 3
Type Heater valves
Fits Jaguar · 3 vehicles

Electric valve operation. Provides controlled coolant routing for HVAC heater valve service.

Bypass style design. Built for heater control applications that require flow diversion.

Five-connectors layout. Female connector configuration for replacement matching.

Cross-references Four Seasons 74009 and Gates EHV103 for the same application. See all 2.

$218.56Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $218.56
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all HVAC Mode Valve options

Overview

Hotbray XR822975ES is an electric HVAC mode valve for the heater control system. It is built with a bypass style, five connectors, and a female connector gender for direct replacement service on the listed application.

Fits 2000-2002 Jaguar S-Type, N/A. The XR822975ES is a practical choice when the original heater valve no longer routes coolant correctly through the HVAC system.

Key Features

  • Electric valve operation for controlled HVAC coolant routing
  • Bypass style construction for heater control applications
  • Five-connectors design with female connector gender
  • Plastic, stainless steel, steel, and thermoplastic materials
  • Opening sizes of 0.625, 0.750, and related port dimensions
  • Hotbray XR822975ES replacement part number for service matching

Detailed Description

This HVAC mode valve is intended for heater control valve service where coolant flow must be directed through the heating circuit. The bypass design and electric actuation support precise flow control, while the multi-material construction is suited to the demands of under-hood HVAC plumbing. Use XR822975ES when replacing a worn or malfunctioning heater valve on the specified Jaguar application. This part cross-references Four Seasons 74009 and Gates EHV103 for the same application.

Common Uses

  • Restoring heater output when coolant flow is not being directed properly
  • Addressing temperature control issues caused by a failing HVAC valve
  • Replacing a leaking or sticking heater control valve
  • Correcting inconsistent cabin heat delivery

Installation Notes

Verify connector count, connector gender, and port sizes before installation. Mounting hardware is not included. Confirm the vehicle uses the listed electric bypass valve configuration and match the original part number XR822975ES before service.

Quality Assurance

Use this replacement valve for the listed fitment when the original HVAC mode valve requires service. Confirm application details against the vehicle’s existing valve and connector layout before installation.

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersNotes
2002JaguarS-TypeBase4.0LV8—
2001JaguarS-TypeBase4.0LV8—
2000JaguarS-TypeBase4.0LV8—
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Four Seasons — 74009Gates — EHV103
