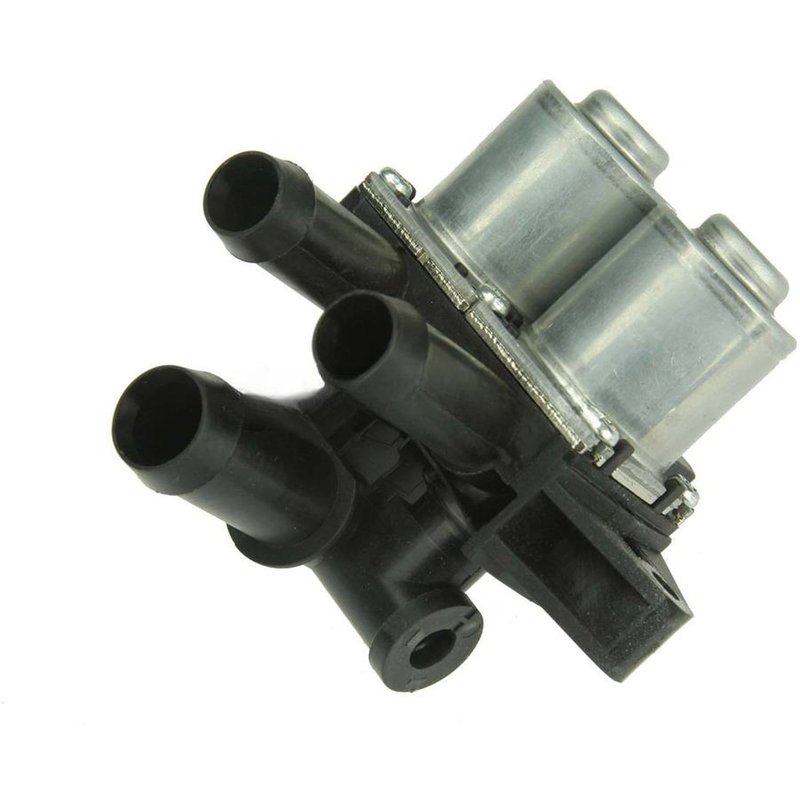

Hotbray XR840091ES HVAC Heater Control Valve
| Brand | Hotbray XR840091ES |
|---|---|
| Material | Pa6 |
| Material | Plastic |
| Material | Stainless steel |
| Material | Steel |
| Material | Thermoplastic |
| Inlet Port Outside Diameter | 0.75 |
| Inlet Port Outside Diameter | 19 |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Gasket Or Seal Included | No |
| Connector Gender | Female |
| Outlet Port Outside Diameter | 0.625 |
| Outlet Port Outside Diameter | 16 |
| Bypass | No |
| Mounting Hardware | Not included |
| Number Of Connectors | 3 connectors |
| Number Of Ports | 3 |
| Opening | 0.625 |
| Opening B | 0.625 |
| Opening C | 0.750 |
| Operation Type | Electric valve |
| Style | Non-bypass |
| Terminal Pin Quantity | 3 |
| Type | Heater valves |
| Fits | Jaguar · 7 vehicles |
Specific-fit design. Made for targeted HVAC heater valve replacement applications.
Electric valve operation. Controls coolant flow through the heater circuit with three connectors.
Non-bypass style. Uses a three-port layout for direct heater control service.
Cross-references Four Seasons 74010, Gates EHV104 and URO XR840091 for the same application. See all 3.
Product Overview
The Hotbray XR840091ES HVAC heater control valve is a specific-fit replacement for the heating system on compatible Jaguar applications. It uses an electric valve design with three connectors and a non-bypass layout to regulate coolant flow through the heater circuit.
Built with plastic, thermoplastic, PA6, stainless steel, and steel materials, this heater valve is made for direct replacement service where the original valve has failed or is no longer controlling heat properly. Fits 2002-2008 Jaguar S-Type.
Key Features
- Specific-fit HVAC heater control valve for targeted application matching.
- Electric valve operation for controlled coolant flow management.
- Non-bypass style with three ports and three connectors.
- Female connector design with 19 mm inlet and 16 mm outlet port sizes.
- Part number XR840091ES for easy identification and ordering.
Detailed Description
The Hotbray XR840091ES is an HVAC heater control valve engineered for the heating circuit in compatible Jaguar S-Type models. Its electric operation and three-port configuration help regulate coolant routing through the heater core, which is essential for consistent cabin temperature control. The valve’s specific-fit design supports accurate replacement of the original component, and the XR840091ES part number can be used to verify application details during service work. This part cross-references Four Seasons 74010 and Gates EHV104 for the same application.
Fits 2002-2008 Jaguar S-Type, N/A.
What It Is Used For
- Restoring heater output when the valve no longer opens or closes correctly.
- Addressing inconsistent cabin temperature control.
- Replacing a leaking or sticking heater control valve.
- Correcting coolant flow issues in the HVAC heater circuit.
Installation Notes and Tips
Verify connector count, port sizes, and valve style before installation. This valve uses a female connector layout and does not include mounting hardware or a gasket or seal. Confirm the XR840091ES part number against the removed component and the vehicle’s HVAC configuration before service.
Quality Assurance
Use the part number XR840091ES to confirm the correct application for the vehicle. The specific-fit design and listed interchange references help support accurate replacement selection.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2008 | Jaguar | S-Type | Base | 3.0L | V6 | — |
| 2007 | Jaguar | S-Type | Base | 3.0L | V6 | — |
| 2006 | Jaguar | S-Type | Base | 3.0L | V6 | — |
| 2005 | Jaguar | S-Type | Base | 3.0L | V6 | — |
| 2004 | Jaguar | S-Type | Base | 3.0L | V6 | — |
| 2003 | Jaguar | S-Type | Base | 3.0L | V6 | — |
| 2002 | Jaguar | S-Type | Base | 4.0L | V8 | — |
