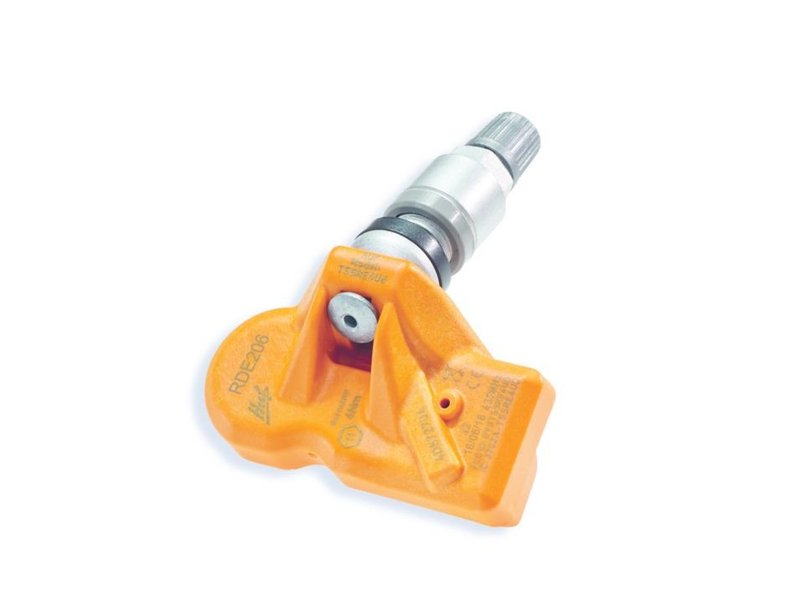

Huf RDE206V21 Tire Pressure Monitoring System Sensor

Huf RDE206V21 OE Quality TPMS Sensor

The Huf RDE206V21 is an OE-quality tire pressure monitoring system sensor for select Mercedes-Benz vehicles. Built with a metal valve construction and calibrated for 433MHz applications, it supports accurate tire pressure monitoring for factory-style replacement needs.

Key Features

• OE-quality TPMS replacement sensor from Huf
• 433MHz frequency for supported Mercedes-Benz applications
• Metal valve construction
• Direct replacement for factory-style TPMS service
• Cross-reference part numbers include 002 540 6717 and A 004 542 9818

Product Details

The Huf RDE206V21 TPMS sensor is part of Huf’s OE-quality replacement line, focused on matching original sensor function for factory-equipped tire pressure monitoring systems. It is used on a wide range of Mercedes-Benz models, including GL-Class, ML-Class, R-Class, S-Class, and CL-Class vehicles across the 2006-2010 model years. This part number, RDE206V21, is specified for 433MHz Mercedes-Benz TPMS applications and is listed with metal valve fitments where manufacturer relearn procedures are required.

Compatible Mercedes-Benz applications include 2010 GL350, 2010 GL450, 2008-2010 GL500, 2010 GL550, 2010 ML350, 2010 ML450, 2008-2010 ML500, 2010 ML550, 2010 ML63 AMG, and 2010 R350. Additional coverage includes 2007-2009 CL500, 2009 CL550, 2009 CL600, 2009 CL63 AMG, 2009 CL65 AMG, 2007-2009 GL320, 2007-2009 GL450, 2008-2009 GL550, 2007-2009 ML320, 2006-2009 ML350, 2008-2009 ML550, 2007-2009 ML63 AMG, 2007-2009 R320, 2006-2009 R350, 2009 S450, 2007-2009 S550, 2007-2009 S600, and 2007-2009 S65 AMG.

What It Helps Solve

• TPMS warning light caused by a failed sensor
• Incorrect or missing tire pressure readings
• Service replacement for aging factory sensors
• Restoration of tire pressure monitoring on Mercedes-Benz vehicles
• Replacement for OE cross-reference numbers 002 540 6917 and 002 540 8017

Installation Notes

Verify the vehicle’s TPMS frequency and sensor style before ordering. This sensor is listed for 433MHz Mercedes-Benz applications, and some metal valve fitments require the manufacturer’s relearn procedure after installation. Programming is not needed for the noted metal valve applications, but the relearn process must be performed according to the vehicle manufacturer’s service steps.

Quality Assurance

Huf positions the RDE206V21 as an OE-quality replacement sensor with full performance validation for the listed applications, meaning the sensor is validated to function to original-equipment expectations for supported Mercedes-Benz models.
