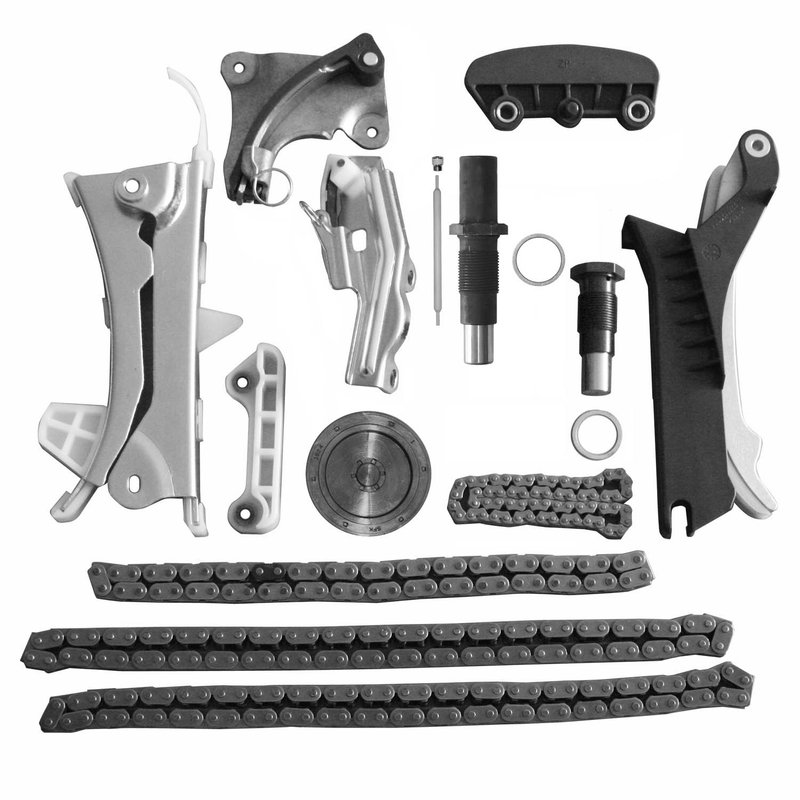

INA ZC-76135S Engine Timing Set

INA ZC-76135S Timing Chain Kit

The INA ZC-76135S engine timing set is a premium timing chain kit built for Ford, Mercury, Mazda, and Land Rover applications that require a complete chain service. It includes the essential timing components needed for a proper repair, with chain guides and a tensioner included for a more complete installation.

Key Features

• Premium-grade engine timing set from INA
• Includes timing chains, chain guides, and tensioner
• Chain guides included: Yes
• Tensioner included: Yes
• Gaskets included: No
• Drive sprocket included: No
• Part number: ZC-76135S

Detailed Description

INA timing chain kits are assembled to cover the core components needed for timing chain service in one package. The ZC-76135S kit is built around the timing chain, guides, and tensioner, helping restore proper chain control during engine operation. In applications where timing chain wear has affected engine noise, timing accuracy, or start-up behavior, this kit provides the parts needed for a full timing service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible With 1997-2010 Ford Explorer, N/A; 2007-2010 Ford Explorer Sport Trac, N/A; 2001-2005 Ford Explorer Sport Trac, N/A; 2005-2010 Ford Mustang, N/A; 2001-2010 Ford Ranger, N/A; 1998-2010 Mercury Mountaineer, N/A; 2001-2009 Mazda B4000, N/A; 2005-2007 Land Rover LR3, N/A; and 2001-2003 Ford Explorer Sport, N/A. The ZC-76135S is also listed under INA Global Number 559 1062 100.

Common Repair Uses

• Replacing a stretched or worn timing chain
• Addressing timing chain rattle or chain noise at startup
• Restoring proper chain tension and guide control
• Correcting timing-related drivability concerns caused by chain wear
• Servicing high-mileage engines with timing system wear

Installation Notes and Tips

Inspect the timing cover area, sprockets, and related wear surfaces before installation. Because this kit does not include gaskets or a drive sprocket, verify all required sealing parts and related components before beginning the repair. Follow factory timing procedures closely and confirm camshaft and crankshaft timing marks during assembly. The ZC-76135S is a direct-fit timing service part for the listed Ford Explorer, Mustang, Ranger, Mercury Mountaineer, Mazda B4000, and Land Rover LR3 applications.

Quality Assurance

INA timing chain kits are built with the components needed for a complete timing repair, and this kit includes a specially formulated chain additive used during break-in to reduce friction and lower run-in wear. That added protection supports a cleaner initial start-up after installation. Part number ZC-76135S is engineered for the listed vehicle applications and packaged as a premium timing set.
